Omron MX2 User Manual

162
"P" Group: Other Parameters Section 3-9
• While SPD terminal is ON, rotating direction depends on RUN command.
Be sure to check rotating direction after switching to positioning operation.

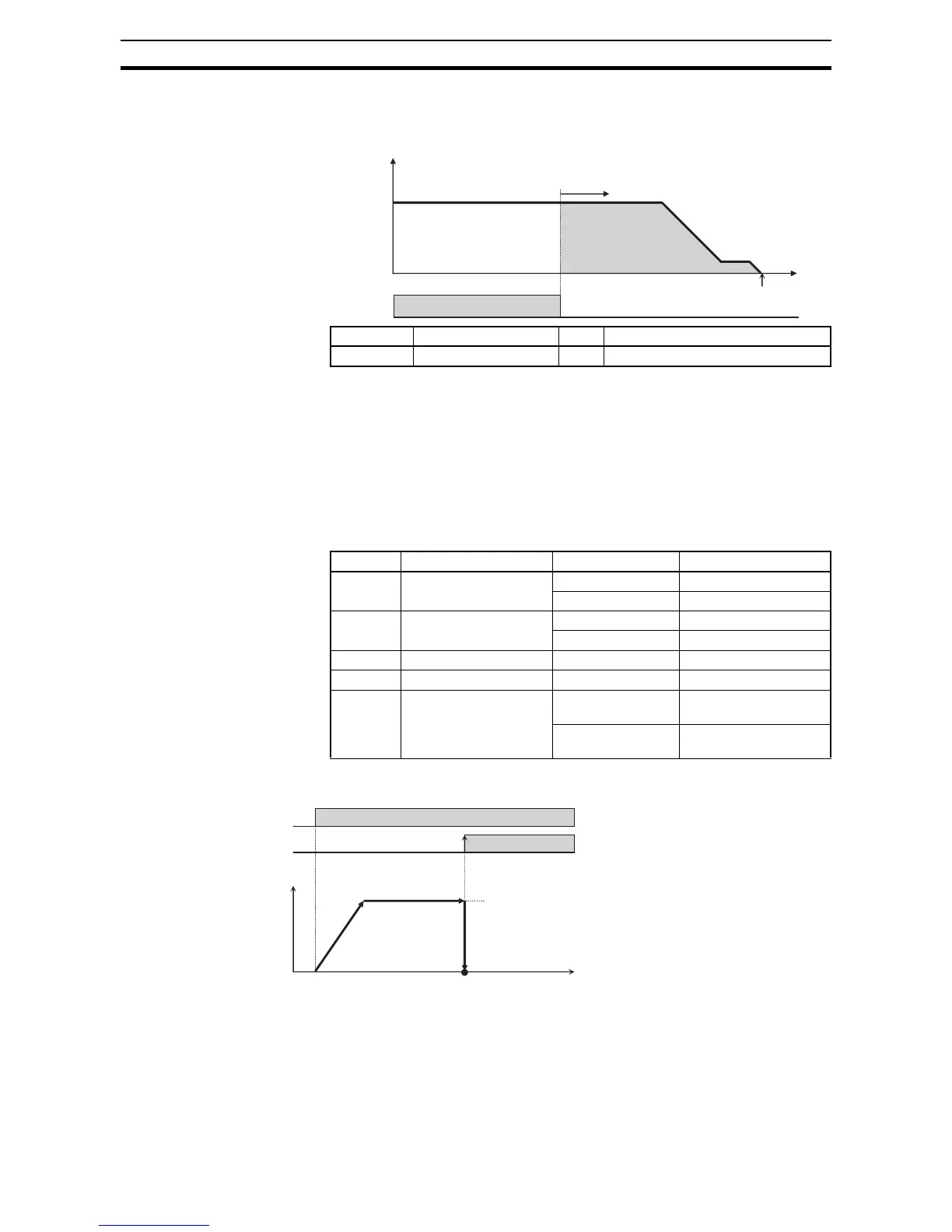

3-9-8 Homing function
• Two different homing function are available by setting homing mode selec-
tion (P068).
• When trigger signal of homing (70: ORG), the inverter starts homing oper-
ation. When homing is completed, current position data is reset (0).
• Direction of homing is specified in P069.
• If homing is not operated, position at power up is regarded as home posi-
tion (0).
(1) Low speed homing (P068 = 00)
Speed control
ON
Output Frequency
SPD input
Time
Target position
Start position counting
Position control
Parameter Item Data Description
C001-C007 Input [1]~[7] function 73 SPD: Speed/position change over
Code Item Data or data range Description
p068 Homing mode selection 00 Low speed mode
01 High speed mode
p069 Homing direction 00 Forward rotation side
01 Reverse rotation side
p070 Low speed homing freq. 0 to 10Hz
p071 High speed homing freq. 0 to 400Hz
C001
~
C007
Input [1]~[7] function 69 ORL: Limit signal of
homing
70 ORG: Trigger signal of
homng
ORG input
ORL input
ON
ON
[1]
[2]
[3]
Low speed (P070)
Outut Freq.
Home position
[1] Acceleration up to the speed P070.
[2] Running at low speed P070
[3] DC braking when ORL signal ON
Position

Omron MX2 Specifications

General

Model	MX2
Category	Inverter
Enclosure Rating	IP20
Control Method	V/f control, Sensorless vector control
Frequency Range	0.1 to 400 Hz
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat, Short circuit
Communication	Modbus RTU
Ambient Temperature	-10 to 50 °C (without freezing or condensation)
Overload Capacity	150% for 60 seconds
Cooling Method	Fan Cooled
Humidity	5 to 95% RH (without condensation)
Altitude	Up to 1000m without derating
Voltage	200-240 VAC, 380-480 VAC
Braking Unit	Built-in (for certain models), Optional External
