Omron MX2 User Manual

163
"P" Group: Other Parameters Section 3-9

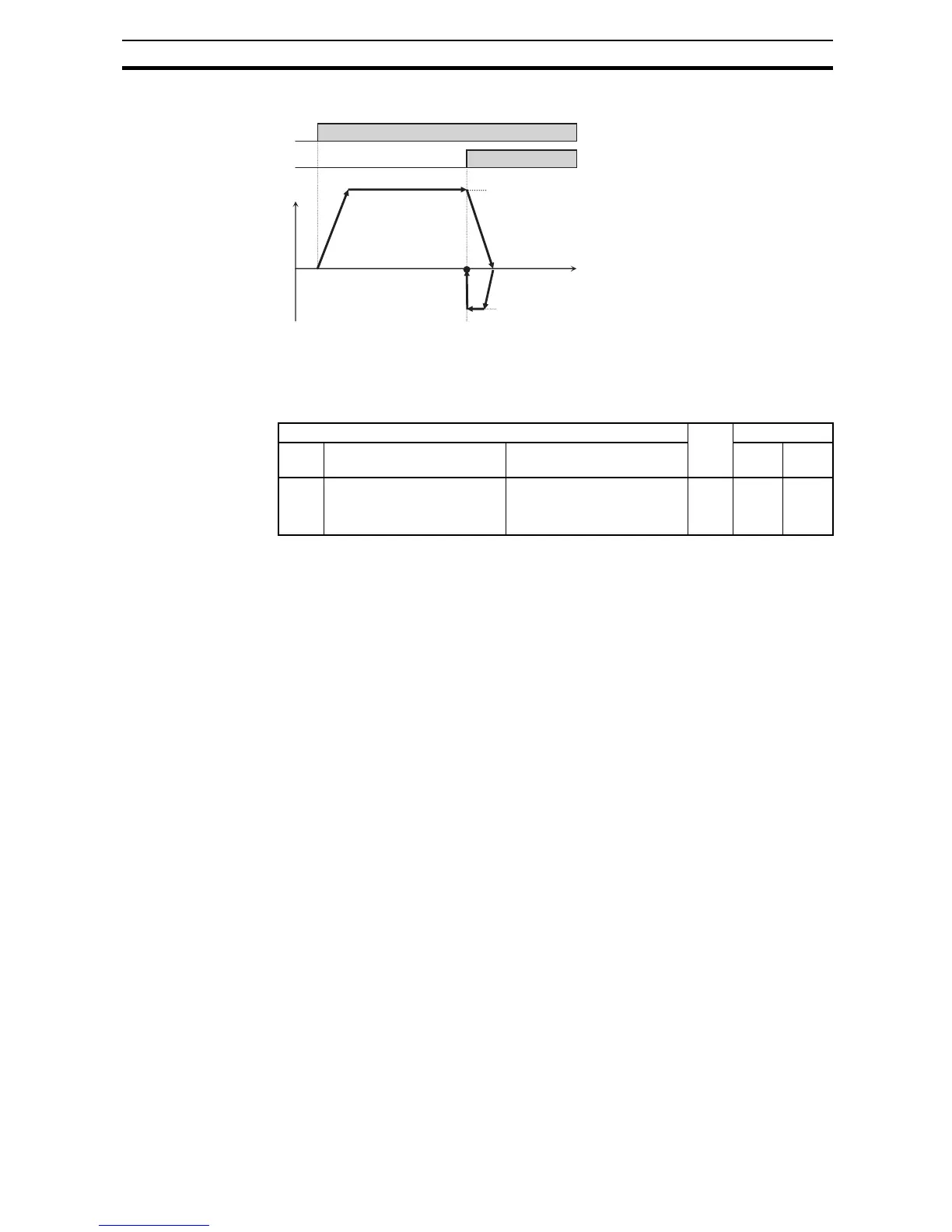

(2) High speed homing (P068 = 01)
3-9-9 EzSQ User Parameter Related Settings
Please refer to SECTION 4 Operations and Monitoring on page 165 for the
detailed description of the function.
ORG input
ORL input
Outut Freq.
Position
Home position
High speed (P071)
Low speed (P070)
ON
ON
[1] Acceleration up to the speed P071.
[2] Running at high speed P071
[3] Deceleration when ORL signal ON
[5] DC braking when ORL signal OFF
[1]
[2]
[3]
[4]
[5]
[4] Running at low speed P070 in
reverse direction
"P" Function Run
Mode
Edit
Defaults
Func.
Code
Name Description EU Units
p100
~
P131
EzSQ user parameter
U(00) ~ U(31)
Each set range is 0~65535 9 0. –

Omron MX2 Specifications

General

Model	MX2
Category	Inverter
Enclosure Rating	IP20
Control Method	V/f control, Sensorless vector control
Frequency Range	0.1 to 400 Hz
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat, Short circuit
Communication	Modbus RTU
Ambient Temperature	-10 to 50 °C (without freezing or condensation)
Overload Capacity	150% for 60 seconds
Cooling Method	Fan Cooled
Humidity	5 to 95% RH (without condensation)
Altitude	Up to 1000m without derating
Voltage	200-240 VAC, 380-480 VAC
Braking Unit	Built-in (for certain models), Optional External
