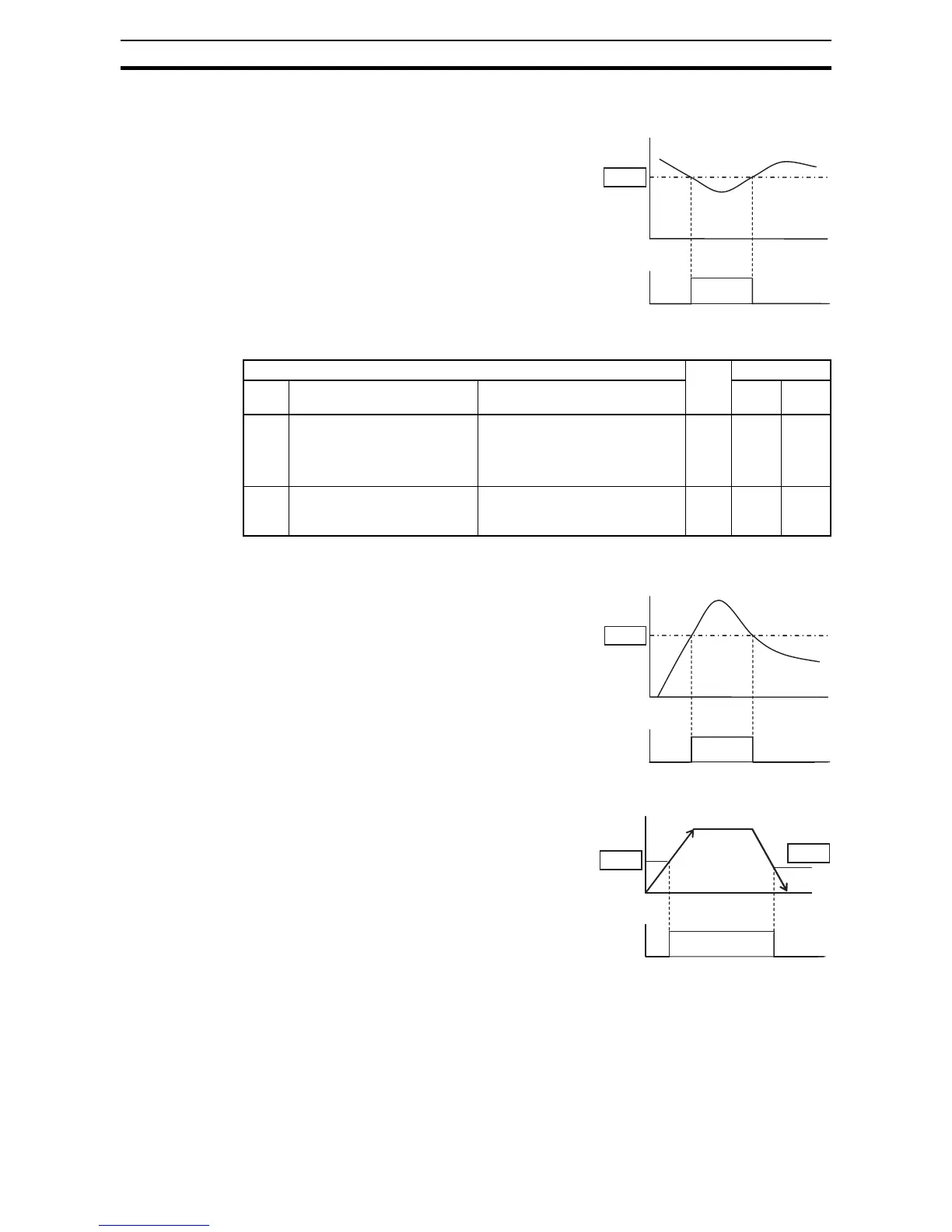

"C" Group: Intelligent Terminal Functions Section 3-7
3-7-4 Low Load Detection Parameters
The following parameters work in con-
junction with the intelligent output func-
tion, when configured. The output
mode parameter (C038) sets the mode
of the detection at which the low load
detection signal [LOC] turns ON. Two
kinds of modes can be selected. The
detection level parameter (C039) is to
set the level of the low load.
This function is for generating an early
warning logic output, without causing
either a trip event or a restriction of the
motor current (those effects are available on other functions).
3-7-5 Output Function Adjustment Parameters
Overload Warning Output - The fol-
lowing parameters work in conjunction
with the intelligent output function,
when configured. The overload level
parameter (C041) sets the motor cur-
rent level at which the overload signal
[OL] turns ON. The range of setting is
from 0% to 200% of the rated current
for the inverter. This function is for gen-
erating an early warning logic output,
without causing either a trip event or a
restriction of the motor current (those
effects are available on other functions).
Frequency Arrival Output - The fre-
quency arrival signal, [FA1] or [FA2], is
intended to indicate when the inverter
output has reached (arrived at) the tar-
get frequency. You can adjust the timing
of the leading and trailing edges of the
signal via two parameters specified to
acceleration ad deceleration ramps,
C042 and C043. Refer also to
SECTION 4 Operations and Monitoring on page 165.
C039
0
1
0
t
t
ON
Output
current
[LOC]
output
"C" Function Run
Mode
Edit
Defaults
Func.
Code
Name Description EU Units
C038 Output mode of low current
detection
Two option codes:
00... During acceleration, deceler-
ation and constant speed
01... During constant speed only
8 01 –
C039 Low current detection level Set the level of low load detection,
range is 0.0 to 2.0*inverter rated
current
8 INV
rated
curr.
A
C041
C041
0
1
0
t
t
ON
Output
current
[OL]
output
C042
C041
C043
C041
1
0
t
t
ON
Output
freq.
[FA2]
output

Omron MX2 Specifications

General

Model	MX2
Category	Inverter
Enclosure Rating	IP20
Control Method	V/f control, Sensorless vector control
Frequency Range	0.1 to 400 Hz
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat, Short circuit
Communication	Modbus RTU
Ambient Temperature	-10 to 50 °C (without freezing or condensation)
Overload Capacity	150% for 60 seconds
Cooling Method	Fan Cooled
Humidity	5 to 95% RH (without condensation)
Altitude	Up to 1000m without derating
Voltage	200-240 VAC, 380-480 VAC
Braking Unit	Built-in (for certain models), Optional External
