Omron MX2 User Manual

193
Using Intelligent Input Terminals Section 4-5

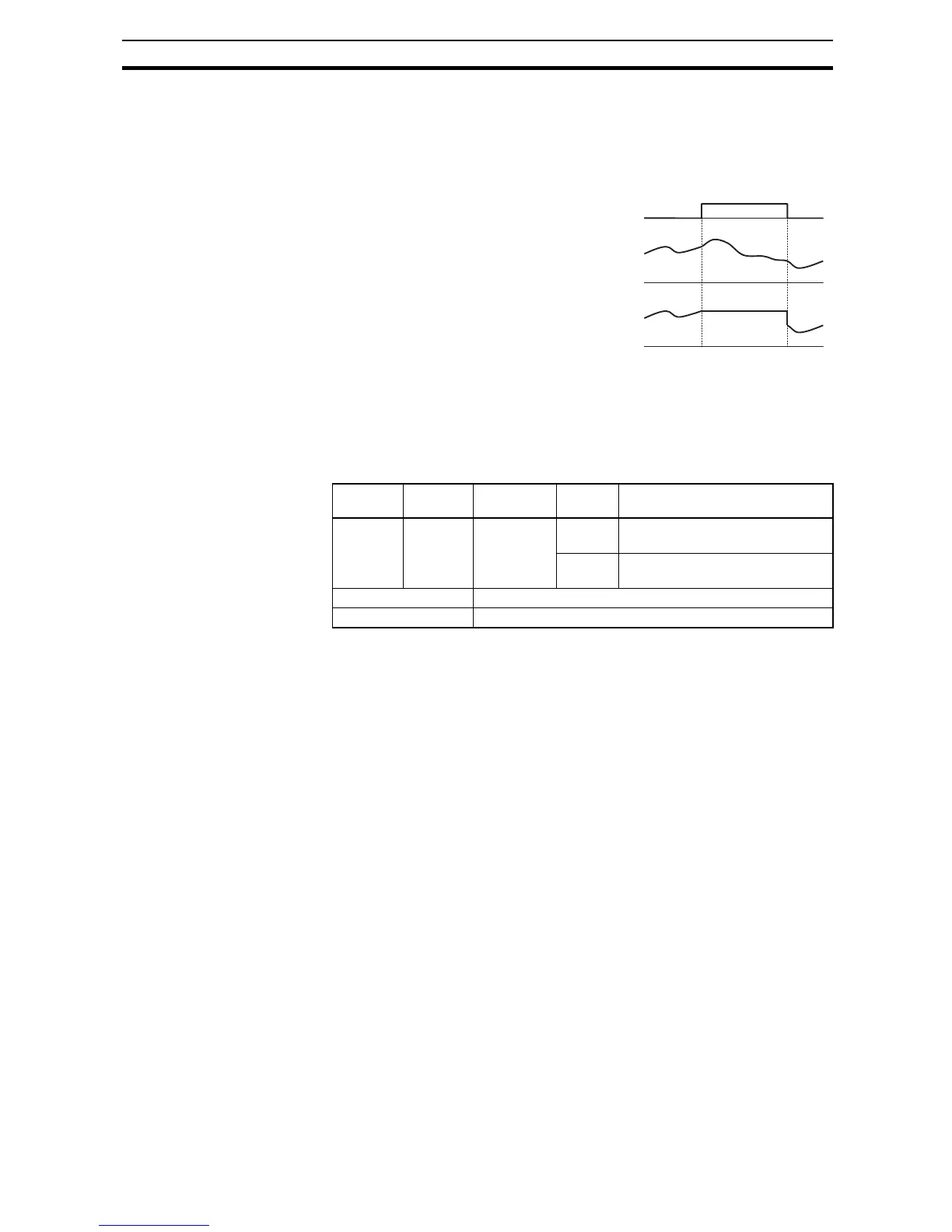

4-5-23 Analog Command Hold
This function allows you to make the inverter hold the analog command input
via the external analog input terminal when the AHD terminal is made ON.
While the AHD is turned ON, the up/down function can be used based on the
analog signal held by this function as reference data.
When "
01" is specified for Up/down
memory mode selection (
C101), the
result of up/down processing can be
stored in memory.
If the inverter power is turned on or
the RS terminal turned off with the
AHD terminal left turned on, the data
held immediately before power on or
turning off the RS terminal will be
used.
Note Set frequency remains when the inverter is switched with SET terminal with
AHD on. Turn AHD terminal off to re-hold the set frequency.
Note Frequent use of this function may result in a shorter in memory component of
the inverter.
A
HD
ON
Hold the data
A
nalog
input
command
Frequency
command
Option
Code
Terminal
Symbol
Function
Name
State Description
65 AHD Analog
command
hold
ON Hold the analog input value
OFF Does not hold the analog input
value
Valid for inputs: C001~C007
Required settings:

Omron MX2 Specifications

General

Model	MX2
Category	Inverter
Enclosure Rating	IP20
Control Method	V/f control, Sensorless vector control
Frequency Range	0.1 to 400 Hz
Protection	Overcurrent, Overvoltage, Undervoltage, Overheat, Short circuit
Communication	Modbus RTU
Ambient Temperature	-10 to 50 °C (without freezing or condensation)
Overload Capacity	150% for 60 seconds
Cooling Method	Fan Cooled
Humidity	5 to 95% RH (without condensation)
Altitude	Up to 1000m without derating
Voltage	200-240 VAC, 380-480 VAC
Braking Unit	Built-in (for certain models), Optional External
