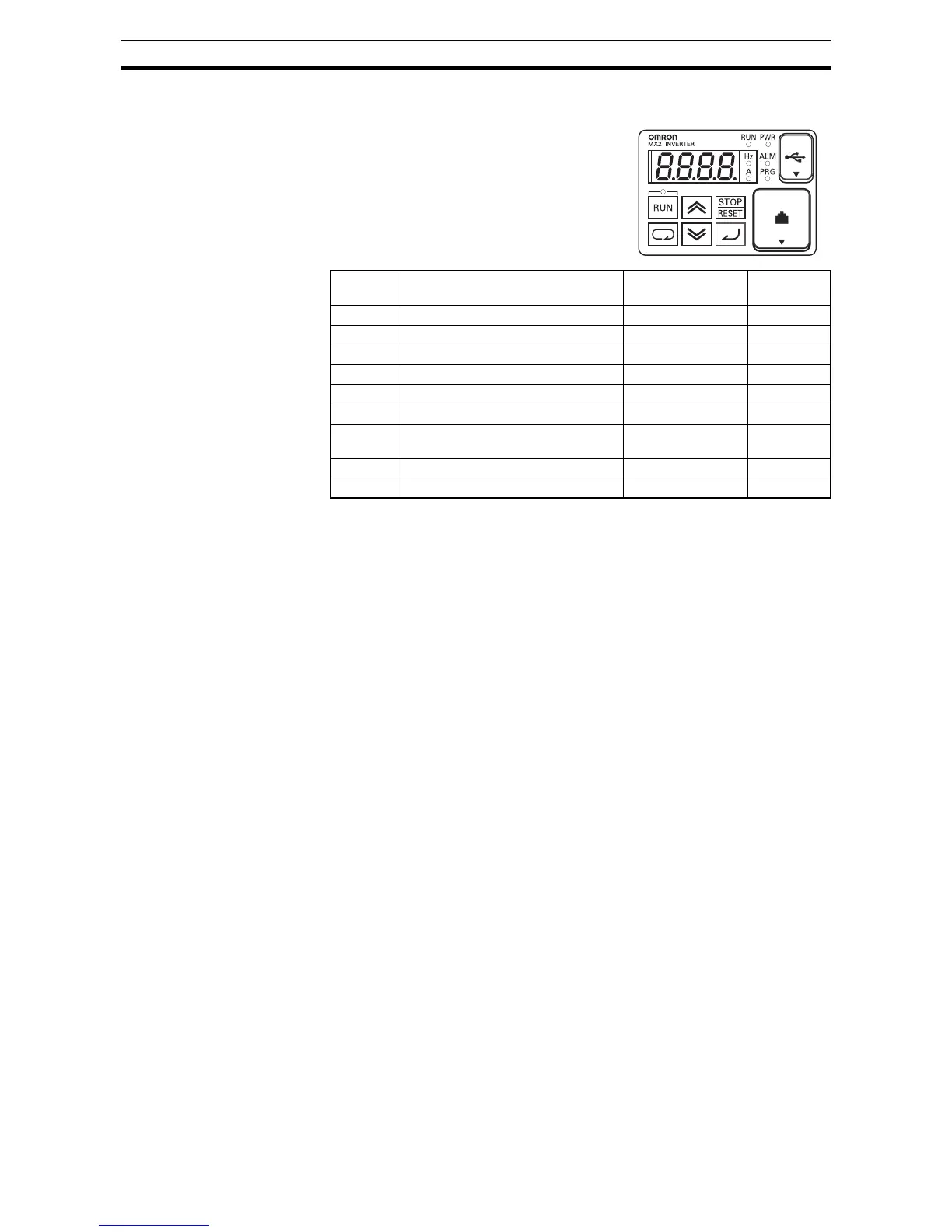

Using the Front Panel Keypad Section 2-5
2-5-1 Keys, Modes, and Parameters
The purpose of the keypad is to provide a
way to change modes and parameters. The
term function applies to both monitoring
modes and parameters. These are all acces-
sible through function codes that are primary
4-character codes. The various functions are
separated into related groups identifiable by
the left-most character, as the table shows.
Function
Group
Type (Category) of Function Mode to Access PRG LED
Indicator
"d" Monitoring functions Monitor
"F" Main profile parameters Program z
"A" Standard functions Program z
"b" Fine tuning functions Program z
"C" Intelligent terminal functions Program z
"H" Motor constant related functions Program z
"P" Pulse train input, torque, EzSQ, and
communication related functions
Program z
"U" User selected parameters Program z
"E" Error codes – –
