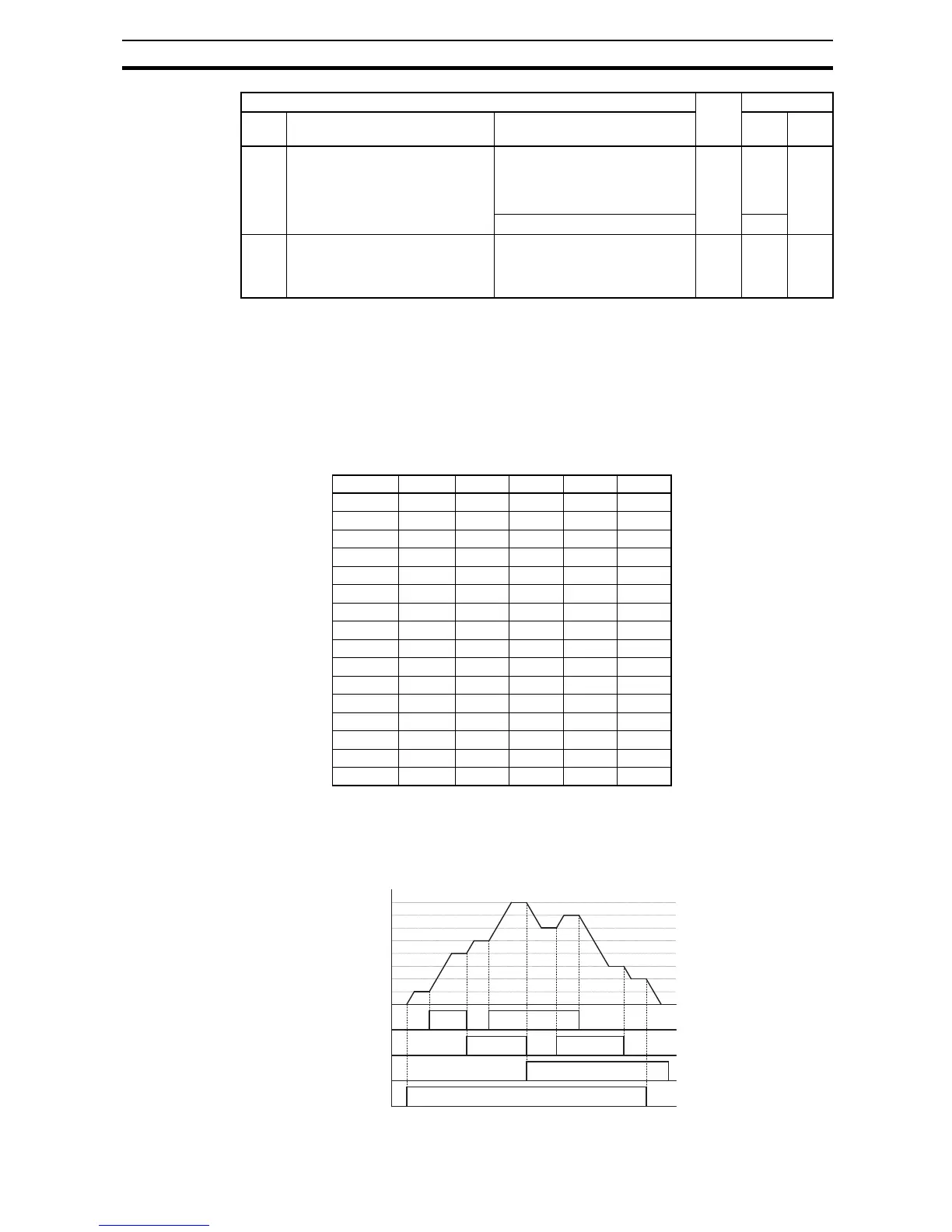

"A" Group: Standard Functions Section 3-5
There are two ways for speed selection, that are "binary operation" and "bit
operation".
For binary operation (
A019=00), you can select 16 speeds by combination of 4
digital inputs. And for bit operation (
A019=01), you can select 8 speeds by
using 7 digital inputs. Please refer to the following figures for detailed explana-
tion.
Binary operation ("1"=ON)
Note When choosing a subset of speeds to use, always start at the top of the table,
and with the least-significant bit: CF1, CF2, etc
The example with eight speeds in the figure below shows how input switches
configured for CF1-CF3 functions can change the motor speed in real time.
A021
to
A035
Multi-speed freq. 1 to 15 (for both
motors)
Defines 15 more speeds, range
is 0.0 / start frequency to 400
Hz.
*1
A021=Speed 1 ~ A035=Speed15
9 0.0 Hz
A021 ~ A035 0.0
C169 Multi-speed/position determina-
tion time
Masks the transition time when
changing the combination of
inputs. Range is 0 to 200
(x10 ms)
8 0.
*1
Up to 1000Hz for High frequency mode (d060 set to "2")
"A" Function Run
Mode
Edit
Defaults
Func.
Code
Name Description EU Units
Speed Param. CF4 CF3 CF2 CF1
Speed 0 A020 0 0 0 0
Speed 1 A021 0 0 0 1
Speed 2 A022 0 0 1 0
Speed 3 A023 0 0 1 1
Speed 4 A024 0 1 0 0
Speed 5 A025 0 1 0 1
Speed 6 A026 0 1 1 0
Speed 7 A027 0 1 1 1
Speed 8 A028 1 0 0 0
Speed 9 A029 1 0 0 1
Speed 10 A030 1 0 1 0
Speed 11 A031 1 0 1 1
Speed 12 A032 1 1 0 0
Speed 13 A033 1 1 0 1
Speed 14 A034 1 1 1 0
Speed 15 A035 1 1 1 1
Speed
0th
4th
6th
1st
2nd
5th
7th
3rd
1
0
1
0
1
0
1
0
[CF1]
[CF2]
[CF3]
[FW]
To Next Page
