MX450/500/550/600/700/800

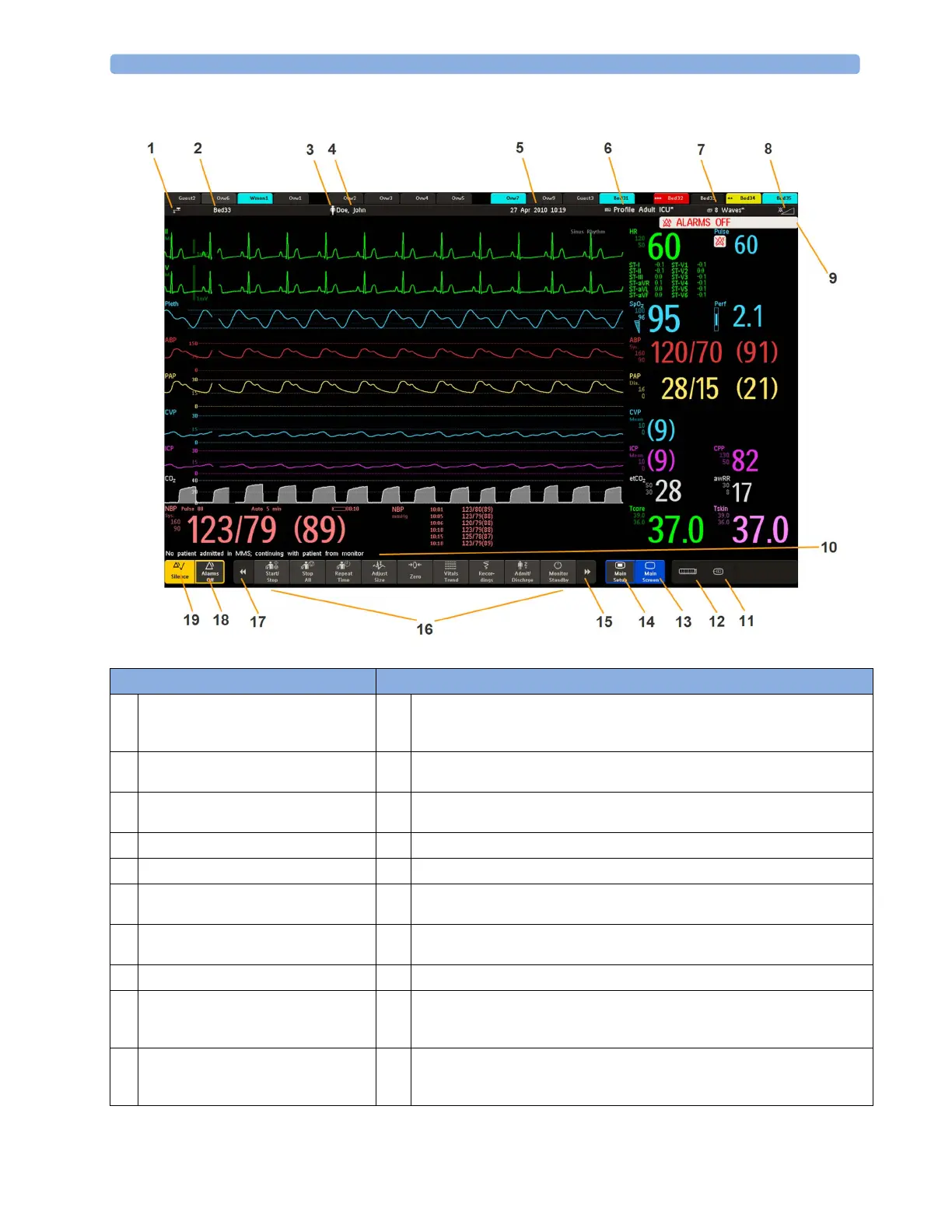

Monitor information line Other screen elements
1
network connection indicator
(documented in Troubleshooting in the
Service Guide)
10
The status line shows messages with information and prompts you for possible
actions (MX400/450/500/550 do not have a reserved space for this feature).
2
bed label - gives access to Equipment
window
11
remote application symbol or iPC symbol (MX600/700/800 only)
3
patient category symbol
12
measurement selection symbol - opens Measurement Selection window to
resolve label conflicts
4
patient name
13
close all open menus and windows and return to main screen
5
date and time
14
enter Main Setup menu
6
access the Profiles menu or Profile
name, depending on configuration
15
scroll right to display more SmartKeys
7
current screen name/enter Change
Screen menu
16
SmartKeys - these change according to your monitor's configuration
8
adjust alarm volume/level indicator
17
scroll left to display more SmartKeys
9
alarm status area - shows active alarm
messages or Alarms Off symbol when
alarms are switched off
18
Pause Alarms or Alarms Off - stops alarms being announced for a set time or
switches them off. Select again to immediately switch alarms on again. Can be
configured not to appear here.
19
Silence - acknowledges all active alarms by switching off audible alarm indicators
and lamps permanently or temporarily, if alarm reminder (ReAlarm) is configured
on.
