2. 24-Multi Frame
This configuration has 24-Multi Frames and each Multi frame has a 24-Channel PCM signal (8 bits/
channel) and a S bit (Super Frame Bit). Figure below shows the frame configuration, and Table in
next page shows frame bit assignment.

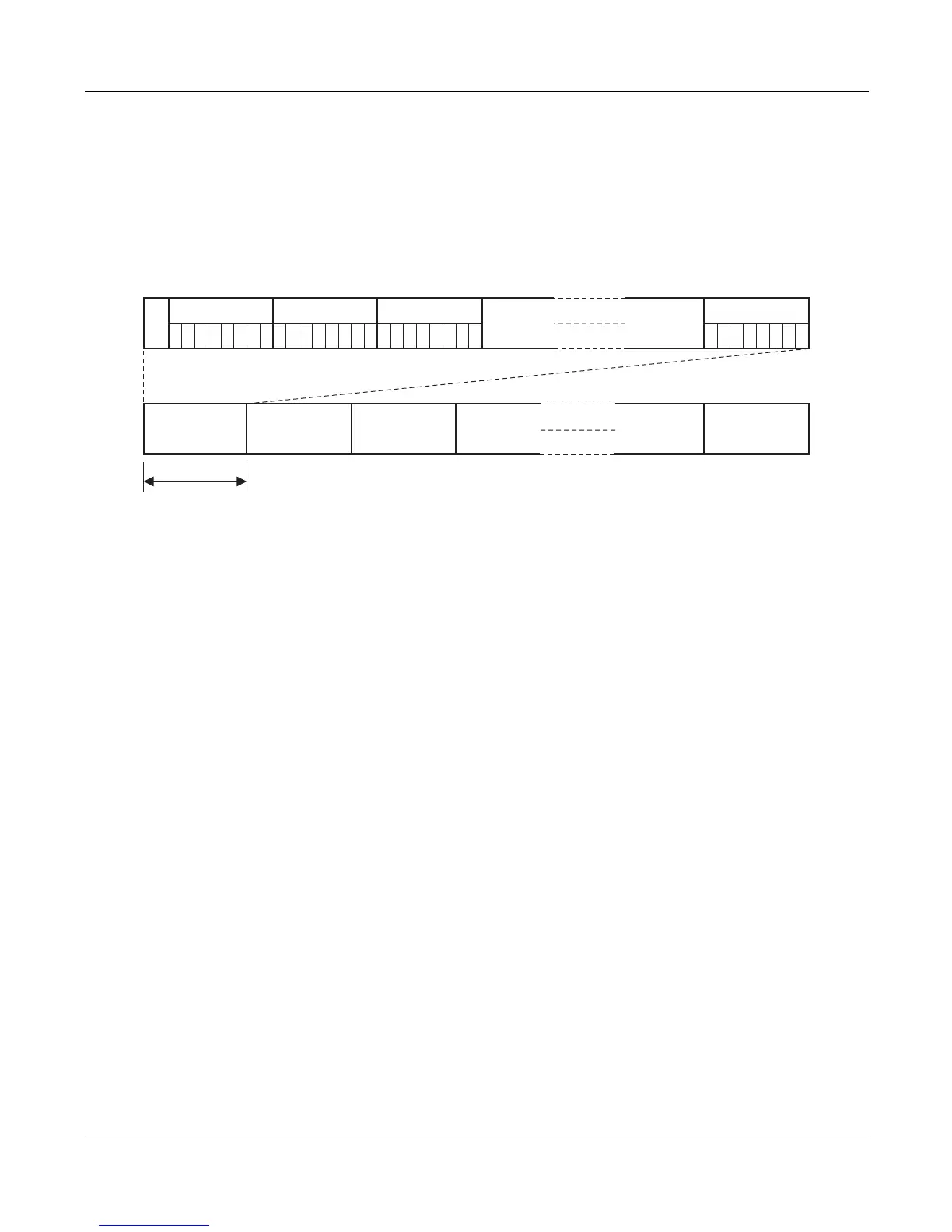

DTI Frame Configuration (24-Multi Frame)
S
CH1 CH2 CH3 CH24
123456781234567812345678 12345678
FRAME 1 FRAME 2 FRAME 3 FRAME 24
125 µs
S: SUPERFRAME BIT
