– 619 – NWA-008845-001 Rev.5.0
32ch1010.fm
(3) SMDR with AP00
The System outline of the SMDR with AP00 is shown below.
The SMDR consists of the AP00 and the external SMDR terminal.
• AP (AP00):
The AP stores various kinds of information which arrives from the MP on an event basis. When a
call is completed, the AP sends out the call information pertaining to that specific call to the SMDR
terminal.
Four of the AP (RS-232C) ports can be used for the SMDR terminal interface. The AP ports
perform as DTE.
The system can accommodate a maximum of one AP00 card.
•SMDR Terminal:
Asynchronous PC is used as the SMDR terminal for receiving and processing the call information
via RS-232C.
The maximum number of SMDR terminal is two, which includes the number of Property
Management System (PMS) terminal.
NOTE: For AP00 card (PN-AP00-B/PN-AP00-D with MRCA program), PMS terminal is not
available.

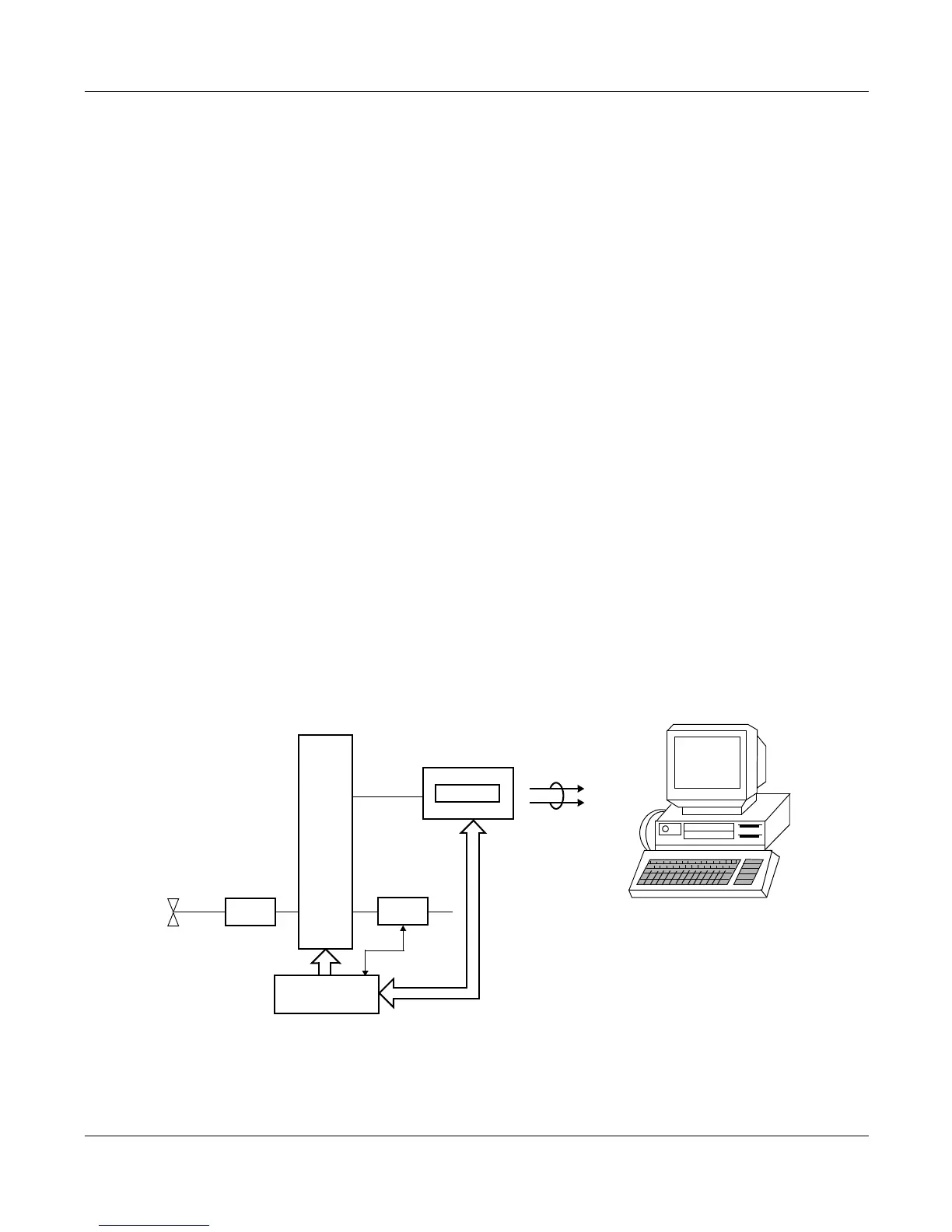

System Outline of SMDR with AP00
TDSW
AP (AP00)
TRUNK
MP
LC
STATION
RS-232C
INTERFACE
MP
SMDR TERMINAL 0/1
MP : MAIN PROCESSOR
AP : APPLICATION PROCESSOR
EXPMEM: EXPANSION MEMORY
EXPMEM
JULY/01/2006
STATION MESSAGE DETAIL RECORDING (SMDR)
SYSTEM OUTLINE
