Example 1: When the PBX is an end office in a network employing an Open Numbering System, office
A requires all the digits dialed on an incoming call from the PBX.
Programming for Example 1:
COMMAND CODE 1ST DATA 2ND DATA REMARKS
20 Y=0 8 A126 Assignment of Access Code 8 of LCR Group 0.
8A Y=A000
8A Y=4005
8A Y=4005
8A Y=4005
8A Y=0000
0
21
22
23
1
4005
0000
0000
0000
00000
Assignment of Area Code Development Pattern
No. 5.
Assignment of Route Pattern
No. 00 to Area Codes 21, 22, and 23.
Assignment of the order of LCR selection (1st)
for Route Pattern No. assigned by Y=4005.
8A Y=5000 100 9000 Assignment of Digit Addition Pattern No. 000.
8A Y=9000 0 8 Assignment of the digital code to be added for
each area code.
22-200
OFFICE
B
OFFICE
C
OFFICE
A
21-200
200
8XX-XXXX
8XX-XXXX
23-200

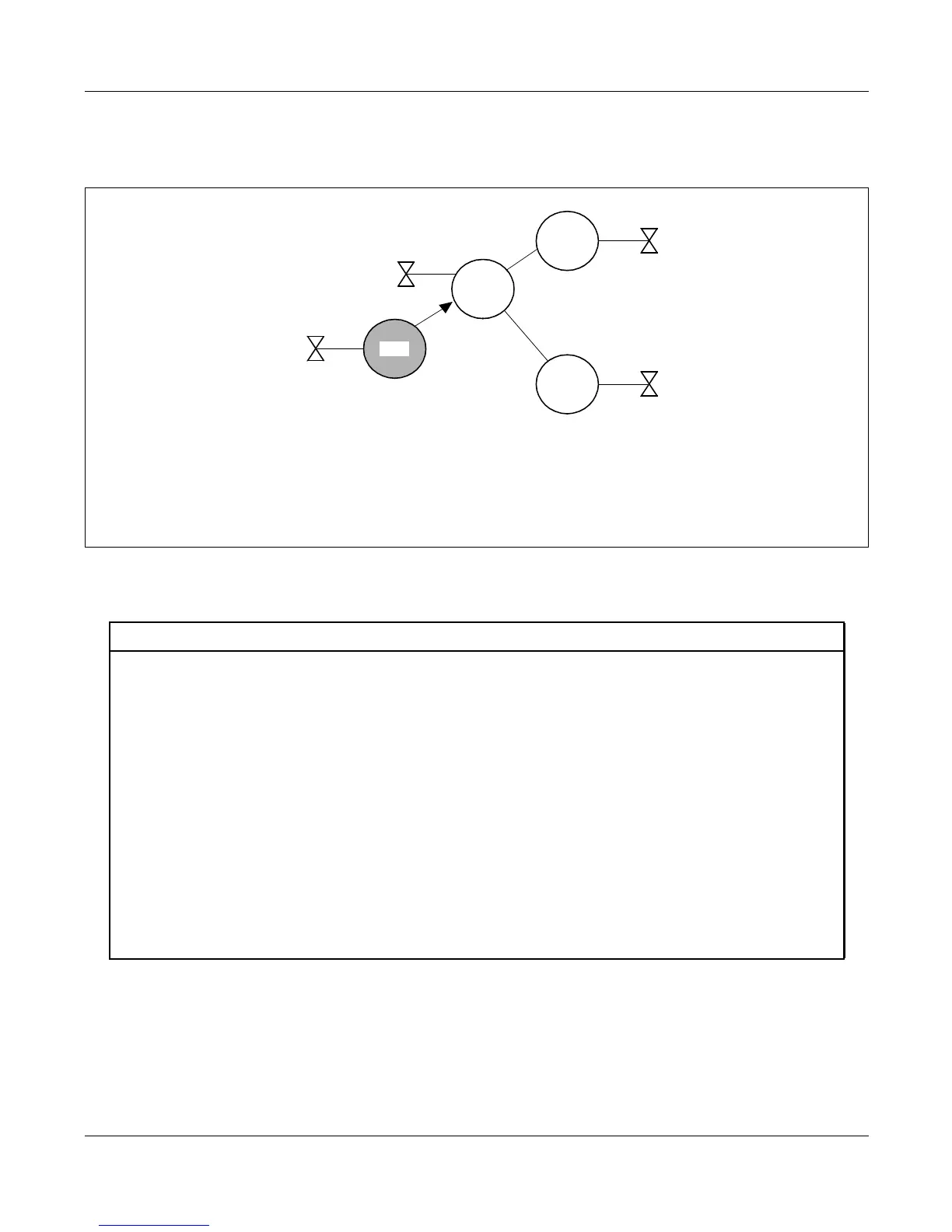

PBX
Trunk Route : 0
Tie Line Access Code : 8
Area Code of Office A : 21
Area Code of Office B : 22
Area Code of Office C : 23
Numbering Plan Group : 0
UNIFORM NUMBERING PLAN (UNP)-VOICE AND DATA
