Example 2: When the PBX is a Tandem Office in the network.
Programming for Example 2:
COMMAND CODE 1ST DATA 2ND DATA REMARKS
20 Y=0 7 A129 Assignment of Access Code 7 of LCR Group 3.
8A Y=A000 3 4005 Assignment of Area Code Development Pattern
No. 5.
8A Y=4005 740 0001 Assignment of Route Pattern No. 001 to Area
Code 740 of Office B.
8A Y=4005 735 8004 Assignment of the 4-digit Intra-Office Station to
the Area Code 735.
8A Y=0000 1 00001 Assignment of the order of LCR selection (1st)
for Route Pattern No. assigned by CM8A
Y=4005.

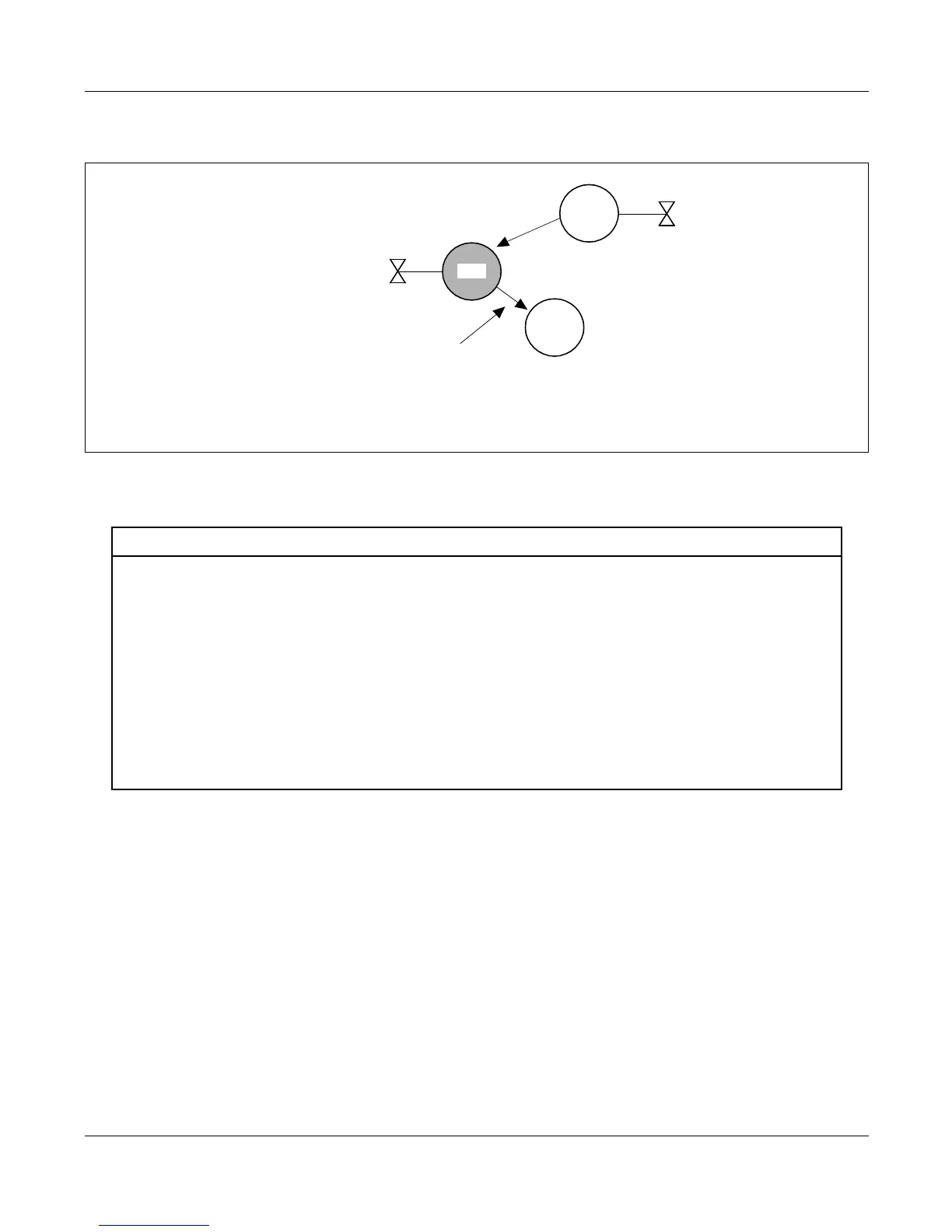

OFFICE
B
OFFICE
A
Trunk Route to Office B
Area Code of Office B
Area Code of Intra-Office Station
Numbering Plan Group
PBX
DIAL NO.
7400/7350
TRUNK ROUTE 01
7350
7350
7400
7400/7350
7400
: 01
: 740
: 735
: 0
UNIFORM NUMBERING PLAN (UNP)-VOICE AND DATA
