SERIES 60 SERVICE MANUAL
Install the slave piston as follows:
1. Install the screw from the slave piston side of the bridge.
2. Install the leveling screw locknut.
3. Install the bridge with the leveling screw toward the center of the housing.
See Figure 1-433.

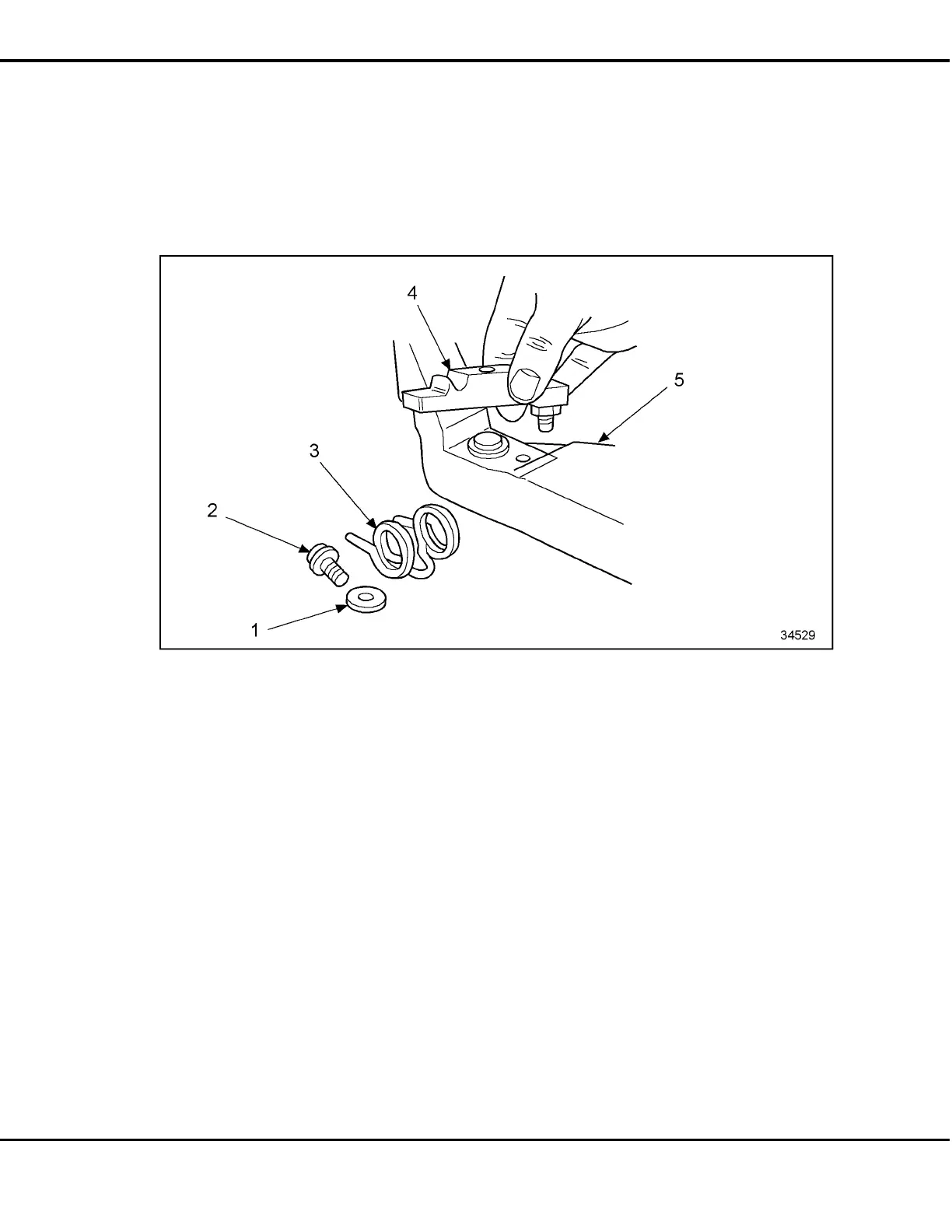

1. Washer 4. Bridge Assembly
2. Screw 5. Jake Brake Housing
3. Torsion Spring
Figure 1-433 Installing Bridge with Leveling Screw Toward Center of Housing
All information subject to change without notice.
6SE483 9901 Copyright © 1999 DETROIT DIESEL CORPORATION From Bulletin 16-60-99 1-549
