Measurements and Results
R&S
®
FSW
183User Manual 1173.9411.02 ─ 43
7.2.5.2 MSR Sub Block and Tx Channel Definition
Access: "Overview" > "Select Measurement" > "Channel Power ACLR" > "CP / ACLR
Standard" > "Standard": "Multi-Standard Radio" > "CP / ACLR Config" > "Tx Channels"
tab

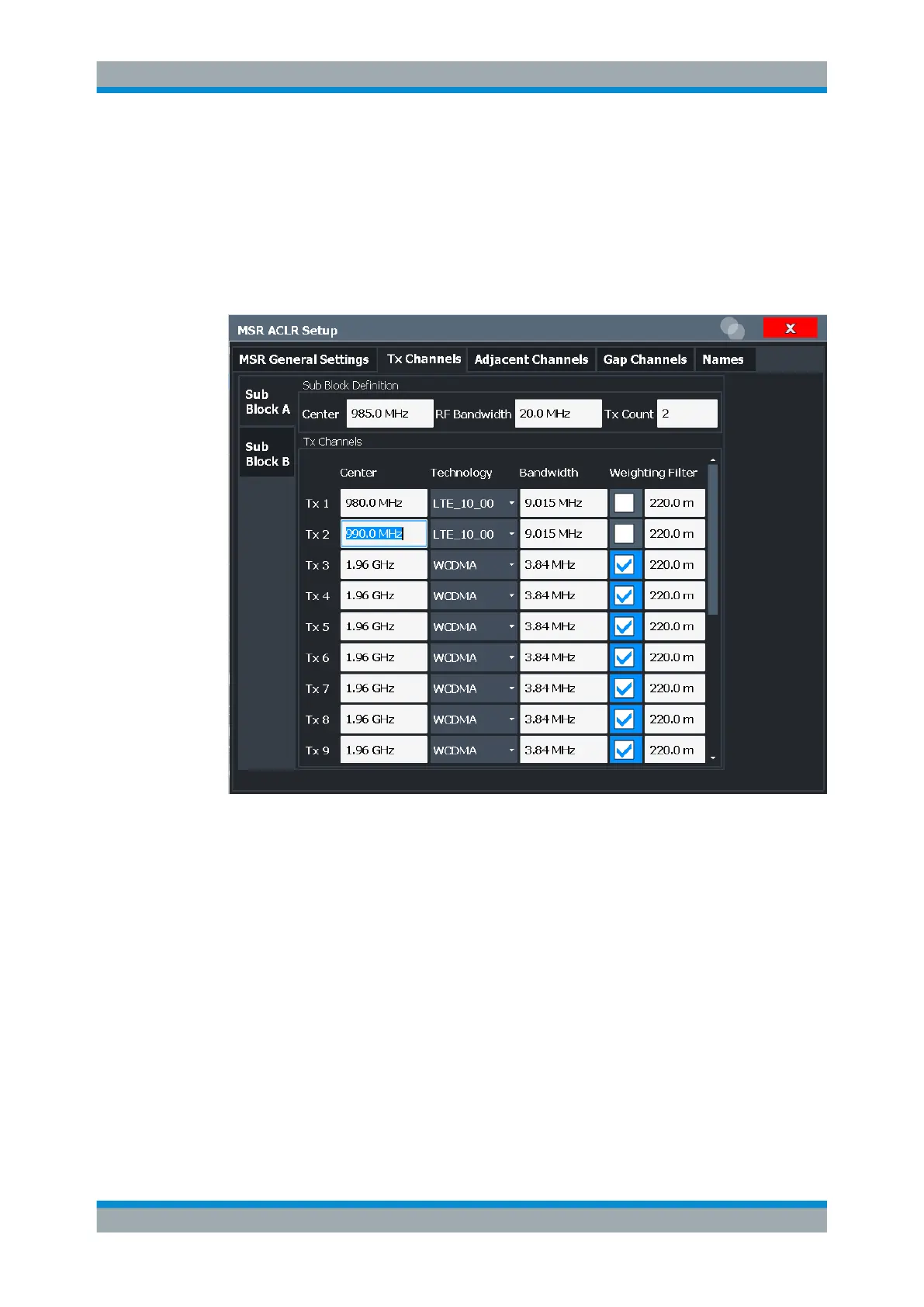

The "Tx Channels" tab provides all the channel settings to configure sub blocks and Tx
channels in MSR ACLR measurements.
For details on MSR signals, see Chapter 7.2.3.4, "Measurement on Multi-Standard
Radio (MSR) Signals", on page 162.
For details on setting up channels, see Chapter 7.2.6.3, "How to Configure an MSR
ACLR Measurement", on page 196.
The Tx channel settings for the individual sub blocks are configured in individual sub-
tabs of the "Tx Channel Settings" tab.
Sub Block Definition....................................................................................................184
└ Sub Block / Center Freq................................................................................184
└ RF Bandwidth............................................................................................... 184
└ Number of Tx Channels (Tx Count)..............................................................184
Tx Channel Definition..................................................................................................184
└ Tx Center Frequency.................................................................................... 184
└ Technology Used for Transmission...............................................................185
└ Tx Channel Bandwidth..................................................................................185
└ Weighting Filters........................................................................................... 185
Channel Power and Adjacent-Channel Power (ACLR) Measurement
