Imported I/Q data
Correction factors are not applied to input from I/Q data files during import. Data from
these files is imported as it was stored. However, if any correction factors were applied
to the stored data, for example from Touchstone files, the imported data contains those
corrections.
Restrictions
Currently, the R&S FSW has the following restrictions for Touchstone file support:
●
Trace data containing corrections from Touchstone files cannot be returned in I/Q
block format
(See TRAC:IQ:DATA:FORM, described in the R&S FSW I/Q Analyzer and I/Q
Input User Manual).
12.4.2 User-defined Frequency Response Correction Settings

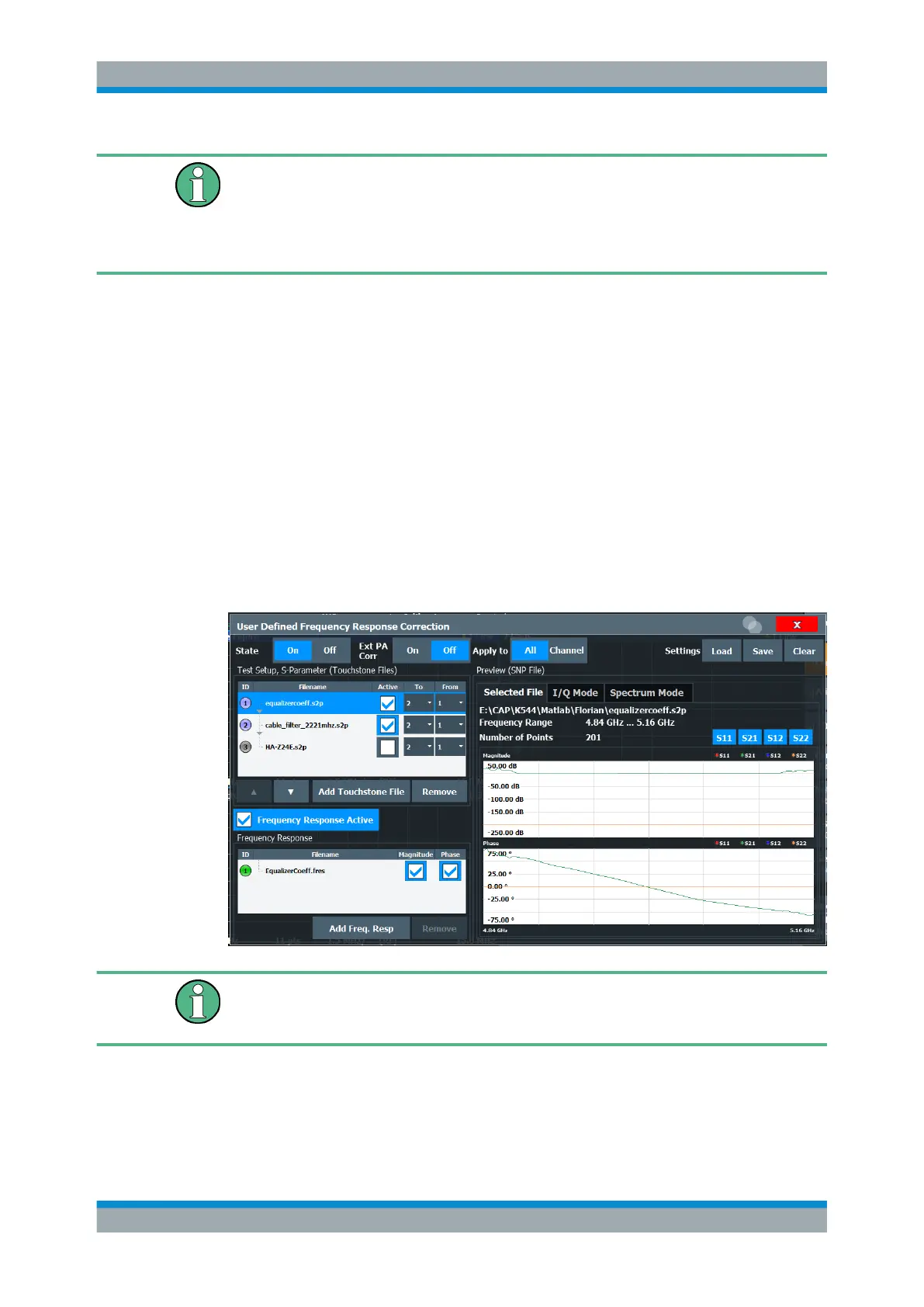

Access: [SETUP] > "User Correction"
User-defined frequency response correction can be defined in one or more Touchstone
files and in one or more frequency response (.fres) files, or a combination of them. A
configuration of correction files can be stored to and loaded from a file.
Frequency response correction can be configured individually for all available input
types (RF, baseband). The settings in the "User-defined Frequency Response Correc-
tion" dialog box apply to the currently selected input type.
State............................................................................................................................692
Ext. PA Correction.......................................................................................................692
Apply to....................................................................................................................... 693
Load Settings.............................................................................................................. 693
Frequency Response Correction (R&S
FSW-K544)
To Next Page
Loading...
