Common Analysis and Display Functions
R&S
®
FSW
518User Manual 1173.9411.02 ─ 43
The results can be displayed directly within the diagram area or in a separate table. By
default, the first two active markers are displayed in the diagram area. If more markers
are activated, the results are displayed in a marker table.

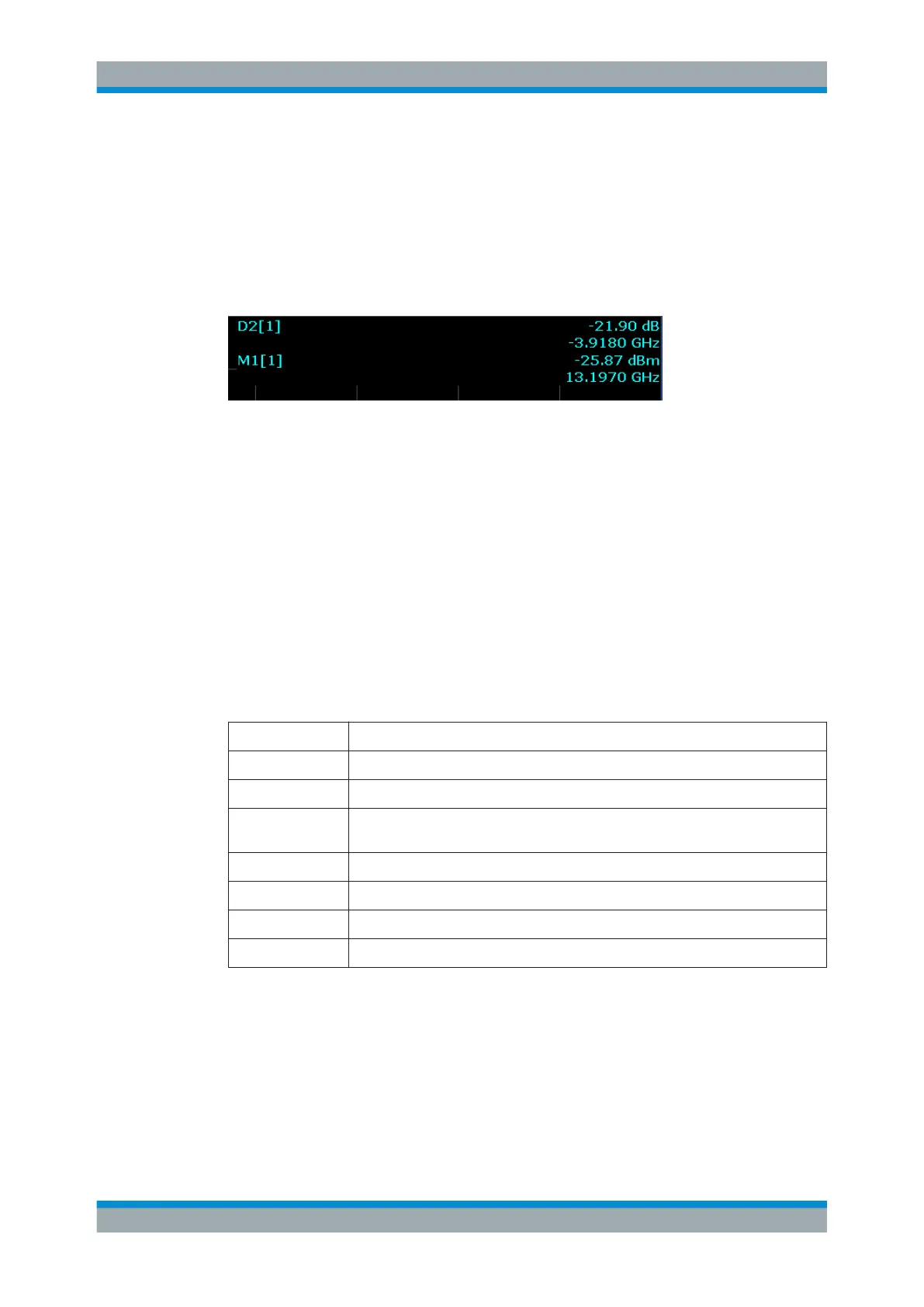

Marker information in diagram area
By default, the results of the last two markers or delta markers that were activated are
displayed in the diagram area.
The following information is displayed there:
●
The marker type (M for normal, D for delta, or special function name)
●
The marker number (1 to 16)
●
The assigned trace number in square brackets [ ]
●
The marker value on the y-axis, or the result of the marker function
●
The marker position on the x-axis
For n dB down markers, additional information is displayed, see Table 9-1.
Marker information in marker table
In addition to the marker information displayed within the diagram area, a separate
marker table may be displayed beneath the diagram. This table provides the following
information for all active markers:
Type Marker type: N (normal), D (delta), T (temporary, internal) and number
Ref Reference marker for delta markers
Trc Trace to which the marker is assigned
Frame Spectrogram frame the marker is positioned in. Displayed only when the Spectro-
gram is displayed.
X-value X-value of the marker
Y-value Y-value of the marker
Function Activated marker or measurement function
Function Result Result of the active marker or measurement function
9.3.2 Marker Settings
Or: [MKR] > "Marker Config"
Marker Usage
