9.3.2.1 Individual Marker Setup
Up to 17 markers or delta markers can be activated for each window simultaneously.

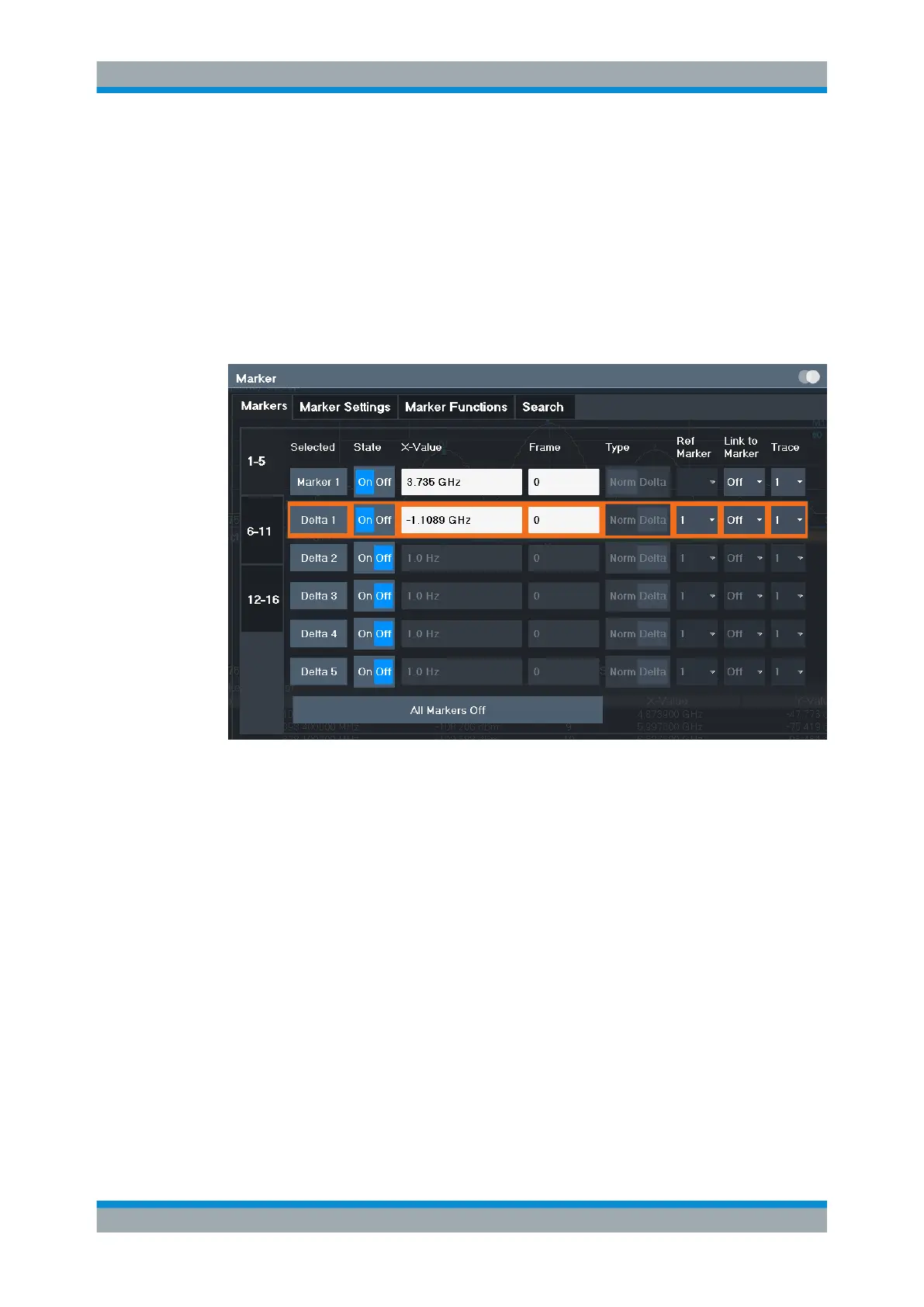

Initial marker setup is performed using the "Marker" dialog box.
The markers are distributed among 3 tabs for a better overview. By default, the first
marker is defined as a normal marker, whereas all others are defined as delta markers
with reference to the first marker. All markers are assigned to trace 1, but only the first
marker is active.
Selected Marker..........................................................................................................519
Marker State................................................................................................................520
Marker Position X-value..............................................................................................520
Frame (Spectrogram only).......................................................................................... 520
Marker Type................................................................................................................ 520
Reference Marker....................................................................................................... 520
Linking to Another Marker...........................................................................................521
Assigning the Marker to a Trace................................................................................. 521
Select Marker..............................................................................................................521
All Markers Off.............................................................................................................522
Selected Marker
Marker name. The marker which is currently selected for editing is highlighted orange.
Remote command:
Marker selected via suffix <m> in remote commands.
Marker Usage
To Next Page
