Common Analysis and Display Functions
R&S
®
FSW
524User Manual 1173.9411.02 ─ 43
9.3.3 Marker Search Settings and Positioning Functions
Access: "Overview" > "Analysis" > "Marker" > "Search"
or: [MKR TO]
Several functions are available to set the marker to a specific position very quickly and
easily, or to use the current marker position to define another characteristic value. In
order to determine the required marker position, searches may be performed. The
search results can be influenced by special settings.
For more information on searching for signal peaks see Chapter 9.3.4.8, "Marker Peak
List", on page 548.
The remote commands required to define these settings are described in Chap-
ter 14.8.3.4, "Positioning the Marker", on page 1162.
● Marker Search Settings.........................................................................................524
● Marker Search Settings for Spectrograms............................................................526
● Positioning Functions............................................................................................530

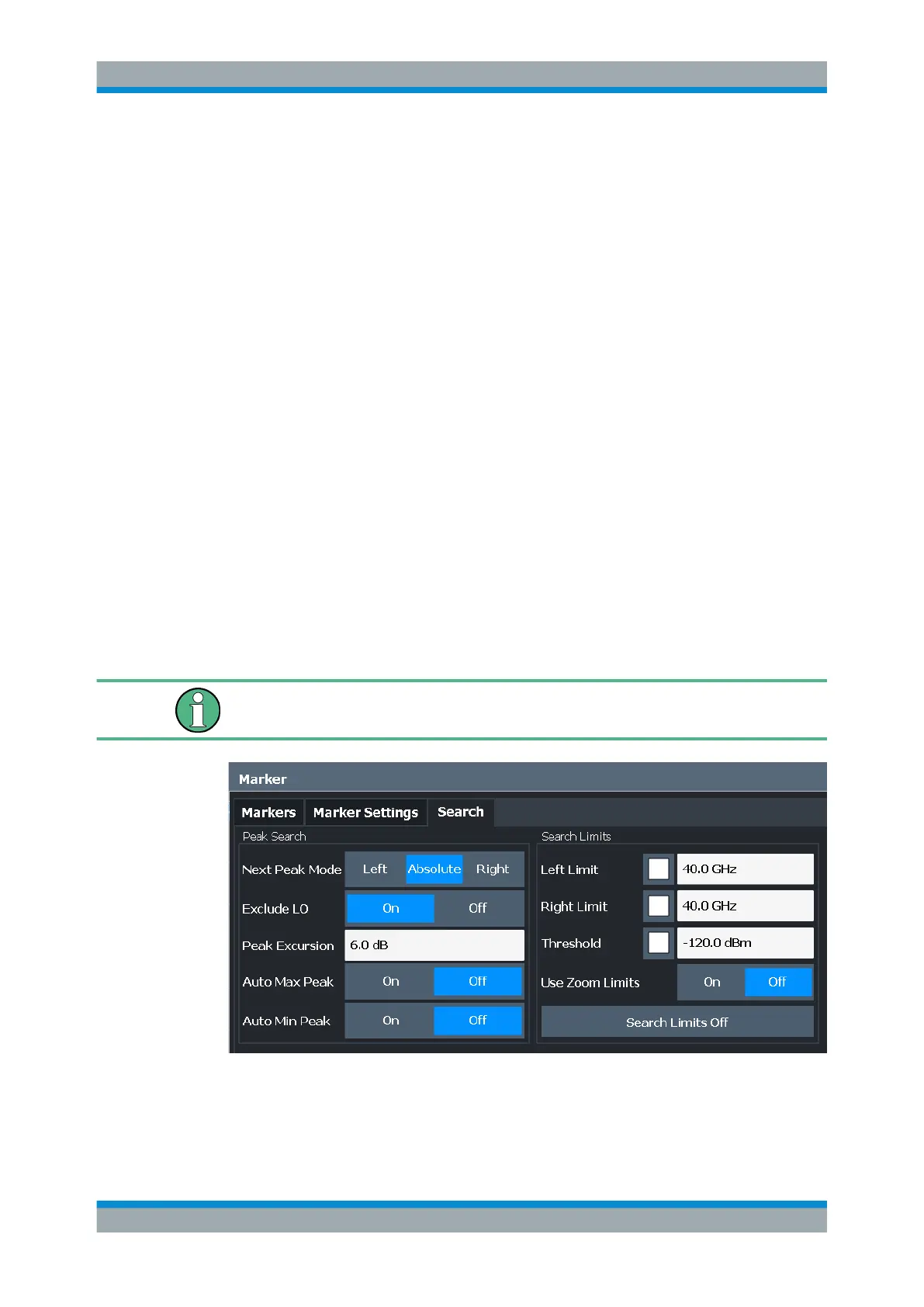

9.3.3.1 Marker Search Settings
Access: [MKR TO] > "Search Config"
Markers are commonly used to determine peak values, i.e. maximum or minimum val-
ues, in the measured signal. Configuration settings allow you to influence the peak
search results.
For Spectrograms, special marker settings are available, see Chapter 9.3.3.2, "Marker
Search Settings for Spectrograms", on page 526.
Search Mode for Next Peak........................................................................................525
Exclude LO..................................................................................................................525
Peak Excursion........................................................................................................... 525
Auto Max Peak Search / Auto Min Peak Search.........................................................525
