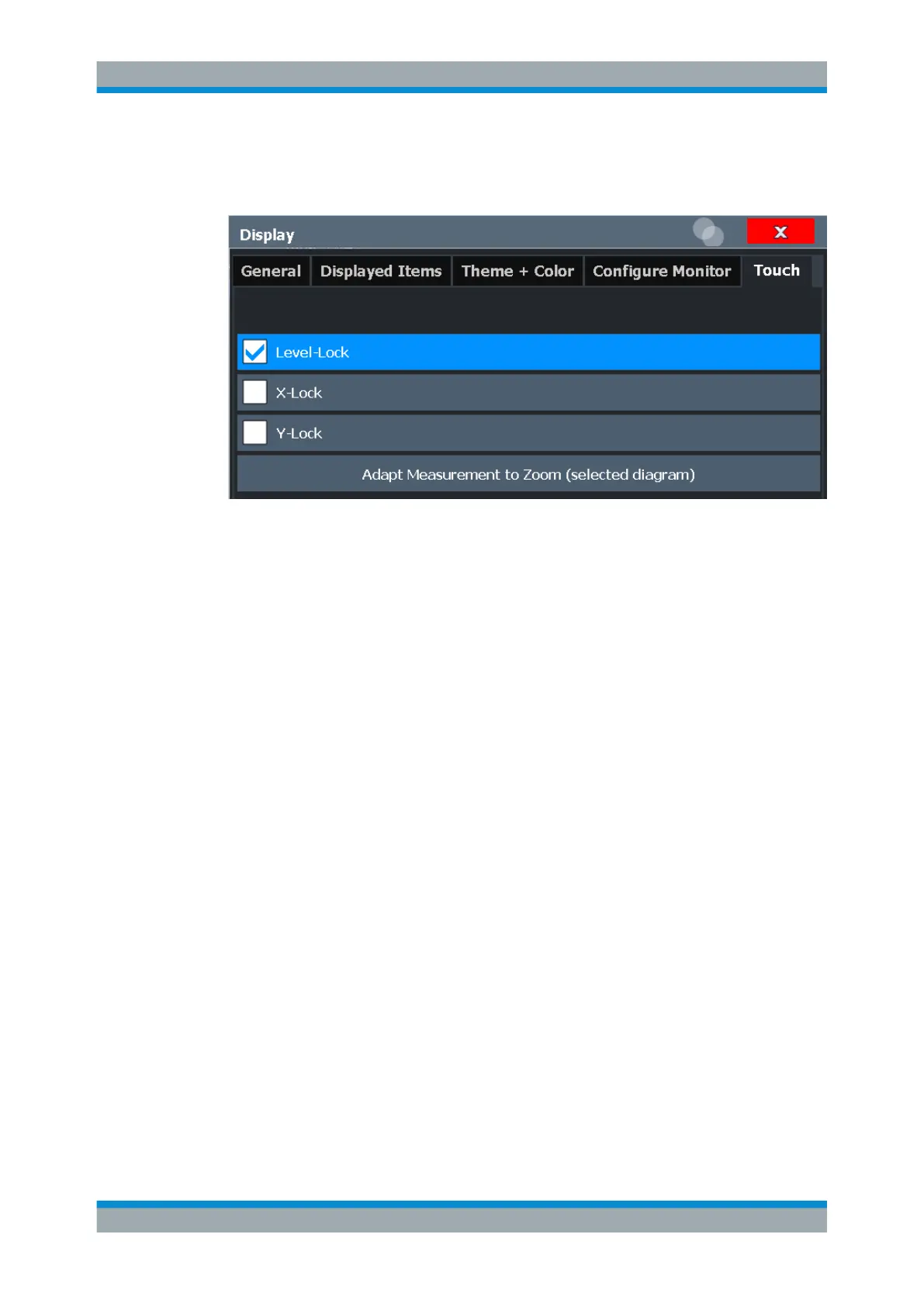

These options concern the behavior of the firmware for touch gestures on the screen.

Note that these settings remain unchanged after a channel preset.

Level Lock...................................................................................................................673

X-Lock.........................................................................................................................673

Y-Lock......................................................................................................................... 673

Adapt Measurement to Zoom (selected diagram).......................................................673

Level Lock

If activated (default), the reference level (and thus the attenuation) is locked, that is:

remains unchanged during touch gestures on the screen.

X-Lock

If activated, the x-axis of the diagram is not changed during subsequent touch ges-

tures.

Y-Lock

If activated, the y-axis of the diagram is not changed during subsequent touch ges-

tures.

Adapt Measurement to Zoom (selected diagram)

If you already performed a graphical zoom using the "Single Zoom" on page 510 or

"Multi-Zoom" on page 510 functions, this function automatically adapts the measure-

ment settings to maintain the currently zoomed display.

12.2.2 How to Configure the Colors for Display and Printing

You can configure the style and colors with which various screen objects are displayed

or printed.

To select a color set

1. Press the [Setup] key and select the "Display" softkey.

Display Settings
