SYSTem:SPEaker:VOLume <Volume>
This command defines the volume of the built-in loudspeaker for demodulated signals.
This setting is maintained for all applications.
The command is available in the time domain in Spectrum mode and in Analog
Demodulation mode.
Parameters:
<Volume> Percentage of the maximum possible volume.
Range: 0 to 1
*RST: 0.5
Example:
SYST:SPE:VOL 0
Switches the loudspeaker to mute.
Manual operation: See "Data Output" on page 437
14.8 Analyzing Measurements (Basics)
The commands for general analysis tasks are described here.
● Zooming into the Display.....................................................................................1121
● Configuring the Trace Display and Retrieving Trace Data.................................. 1124
● Working with Markers..........................................................................................1150
● Configuring Display and Limit Lines....................................................................1209
14.8.1 Zooming into the Display
14.8.1.1 Using the Single Zoom
DISPlay[:WINDow<n>][:SUBWindow<w>]:ZOOM:AREA.................................................. 1121
DISPlay[:WINDow<n>][:SUBWindow<w>]:ZOOM[:STATe]................................................ 1122

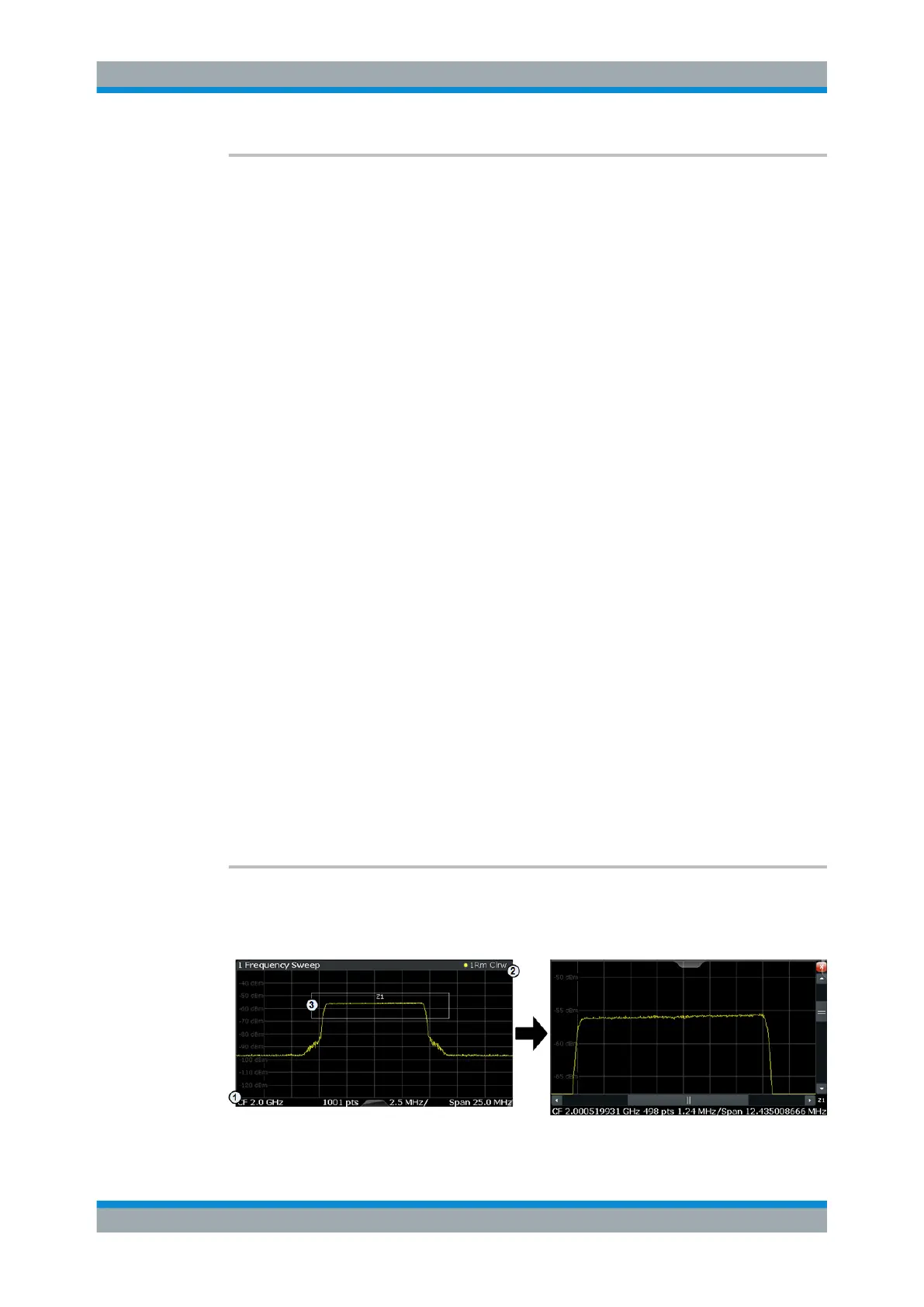

DISPlay[:WINDow<n>][:SUBWindow<w>]:ZOOM:AREA <x1>,<y1>,<x2>,<y2>
This command defines the zoom area.
To define a zoom area, you first have to turn the zoom on.
