7.2.4 Channel Power Configuration
Access: "Overview" > "Select Measurement" > "Channel Power ACLR" > "CP / ACLR
Config"
Both Channel Power (CP) and Adjacent-Channel Power (ACLR) measurements are
available.
If the "Multi-Standard Radio" standard is selected (see "Standard" on page 169), the
"ACLR Setup" dialog box is replaced by the "MSR ACLR Setup" dialog box. See Chap-
ter 7.2.5, "MSR ACLR Configuration", on page 177 for a description of these settings.
The remote commands required to perform these tasks are described in Chap-
ter 14.5.3, "Measuring the Channel Power and ACLR", on page 841.
● General CP/ACLR Measurement Settings............................................................168
● Channel Setup...................................................................................................... 174
7.2.4.1 General CP/ACLR Measurement Settings

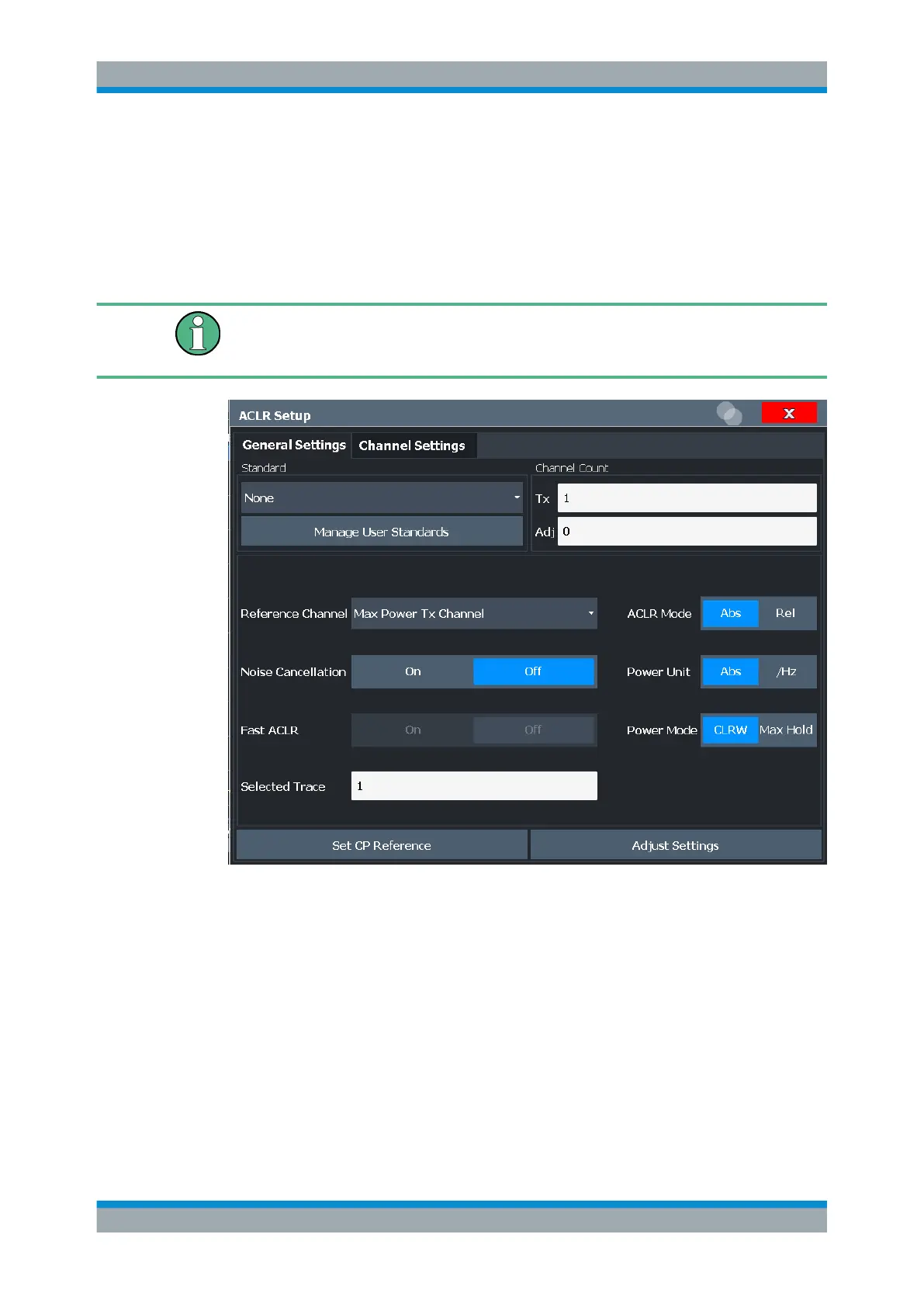

General measurement settings are defined in the "ACLR Setup" dialog, in the "General
Settings" tab.
Standard......................................................................................................................169
└ Predefined Standards................................................................................... 169
└ User Standards.............................................................................................169
