8 Common Measurement Settings
Basic measurement settings that are common to many measurement tasks, regardless
of the application or operating mode, are described here. If you are performing a spe-
cific measurement task, using an operating mode other than Signal and Spectrum Ana-
lyzer mode, or an application other than the Spectrum application, be sure to check the
specific application or mode description for settings that may deviate from these com-
mon settings.
● Configuration Overview.........................................................................................356
● Data Input and Output...........................................................................................358
● Frequency and Span Configuration...................................................................... 441
● Amplitude and Vertical Axis Configuration............................................................ 448
● Bandwidth, Filter and Sweep Configuration..........................................................459
● Trigger and Gate Configuration.............................................................................476
● Adjusting Settings Automatically...........................................................................497
8.1 Configuration Overview
Access: all menus

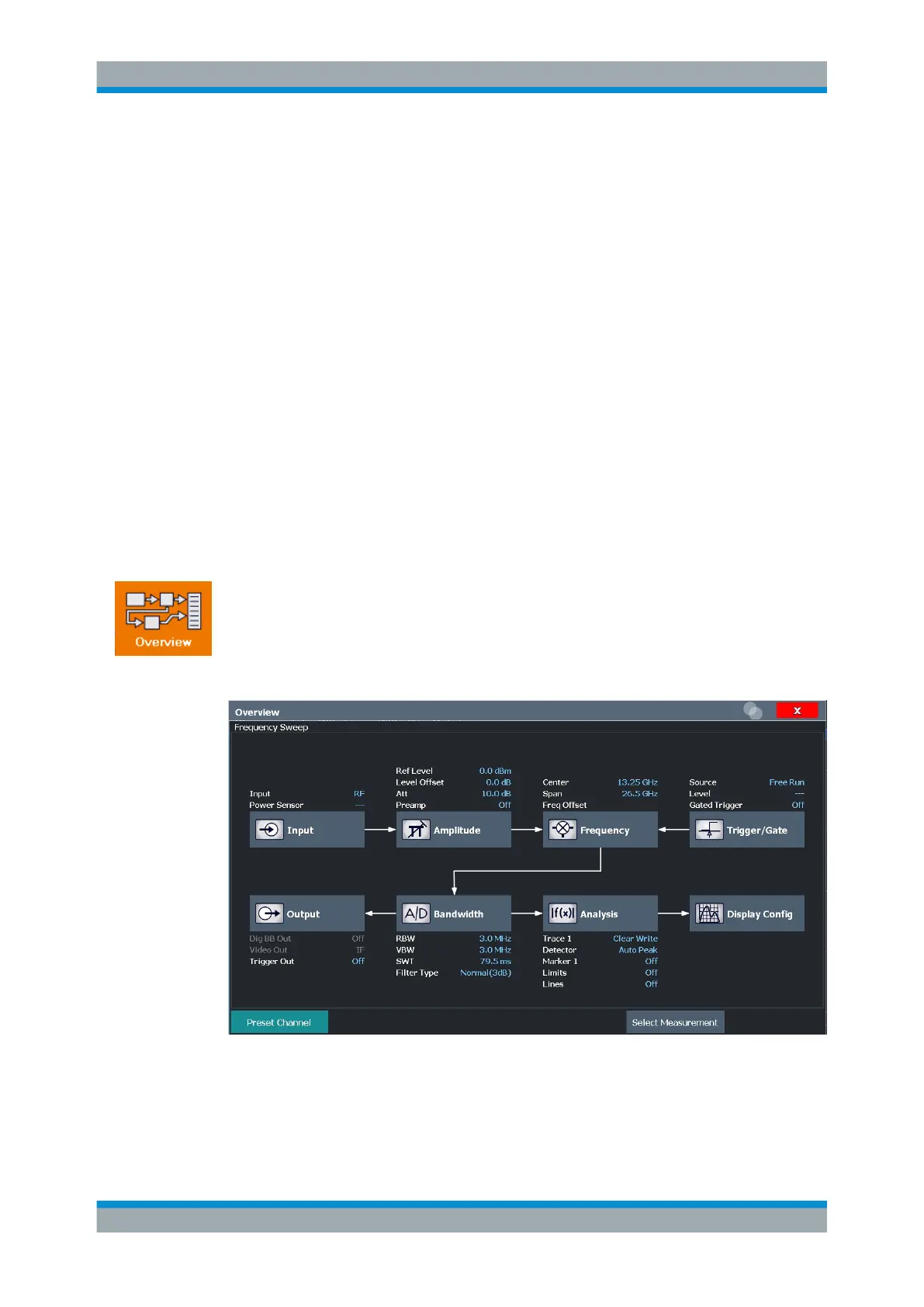

Each channel provides an overview of the most important currently defined settings
and access to the most important configuration dialog boxes for the particular mea-
surement. This overview is available via the "Overview" icon, which is displayed in all
menus.
Using this overview, you can easily configure an entire channel from input over pro-
cessing to output and analysis by stepping through the dialog boxes as indicated.
In particular, the "Overview" provides quick access to the following configuration dialog
boxes (listed in the recommended order of processing):
Configuration Overview
To Next Page
