R&S FSW Series - How to Set up Remote Desktop

Network and Remote Operation
R&S
®
FSW
809User Manual 1173.9411.02 ─ 43

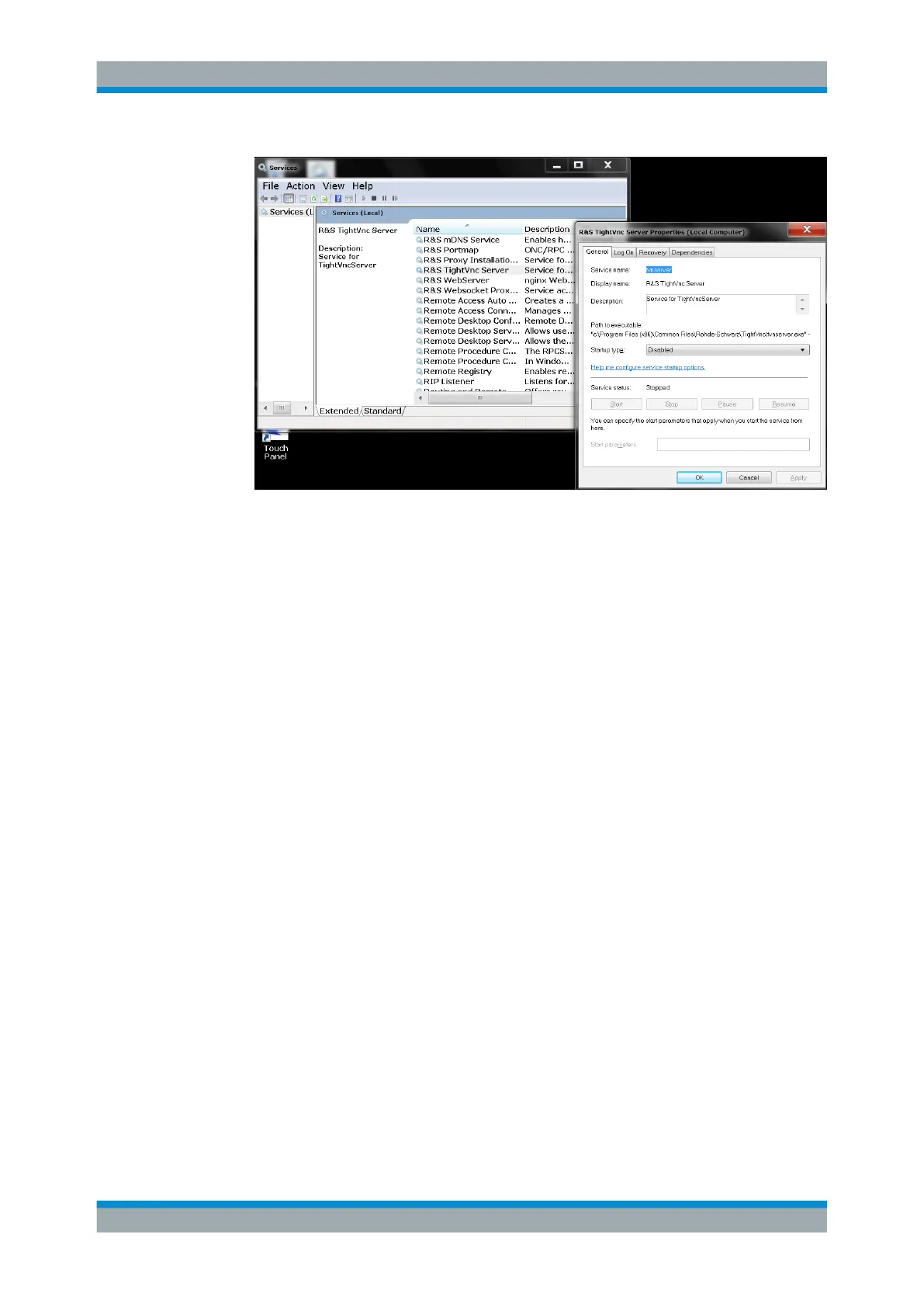

6. Set "Startup type" to "Disabled".
7. Select "Stop".
8. Select "Apply".
The next time a user enters the IP address of the instrument in a web browser, an
error message is displayed:
Failed to connect to server (code. 1006)
13.6.7 How to Set Up Remote Desktop
Remote Desktop is a Windows application which can be used to access and control
the instrument from a remote computer through a LAN connection. While the instru-
ment is in operation, the instrument screen contents are displayed on the remote com-
puter, and Remote Desktop provides access to all of the applications, files, and net-
work resources of the instrument. Thus, remote operation of the R&S FSW is possible.
With Windows 10, Remote Desktop Client is part of the operating system. For other
versions of Windows, Microsoft offers the Remote Desktop Client as an add-on. For
details refer to the Windows 10 operating system documentation.
With the factory settings, the default "instrument" user can connect to the R&S FSW
with the Remote Desktop program of the controller immediately. No further configura-
tion is required. However, if the connection fails or other users need to connect, this
section provides basic instructions on setting up the Remote Desktop for the
R&S FSW.
13.6.7.1 How to Configure the R&S FSW for Remote Operation via Remote Desktop
1. Create a fixed IP address for the TCP/IP protocol as described in Chapter 13.6.1.2,
"How to Assign the IP Address", on page 798.
How to Set Up a Network and Remote Control
