Linking to Another Marker

Links the current marker to the marker selected from the list of active markers. If the x-

axis value of the initial marker is changed, the linked marker follows to the same posi-

tion on the x-axis. Linking is off by default.

Using this function you can set two markers on different traces to measure the differ-

ence (e.g. between a max hold trace and a min hold trace or between a measurement

and a reference trace).

Remote command:

CALCulate<n>:MARKer<ms>:LINK:TO:MARKer<md> on page 1155

CALCulate<n>:DELTamarker<ms>:LINK:TO:MARKer<md> on page 1152

CALCulate<n>:DELTamarker<m>:LINK on page 1151

Assigning the Marker to a Trace

The "Trace" setting assigns the selected marker to an active trace. The trace deter-

mines which value the marker shows at the marker position. If the marker was previ-

ously assigned to a different trace, the marker remains on the previous frequency or

time, but indicates the value of the new trace.

If a trace is turned off, the assigned markers and marker functions are also deactiva-

ted.

Remote command:

CALCulate<n>:MARKer<m>:TRACe on page 1156

Select Marker

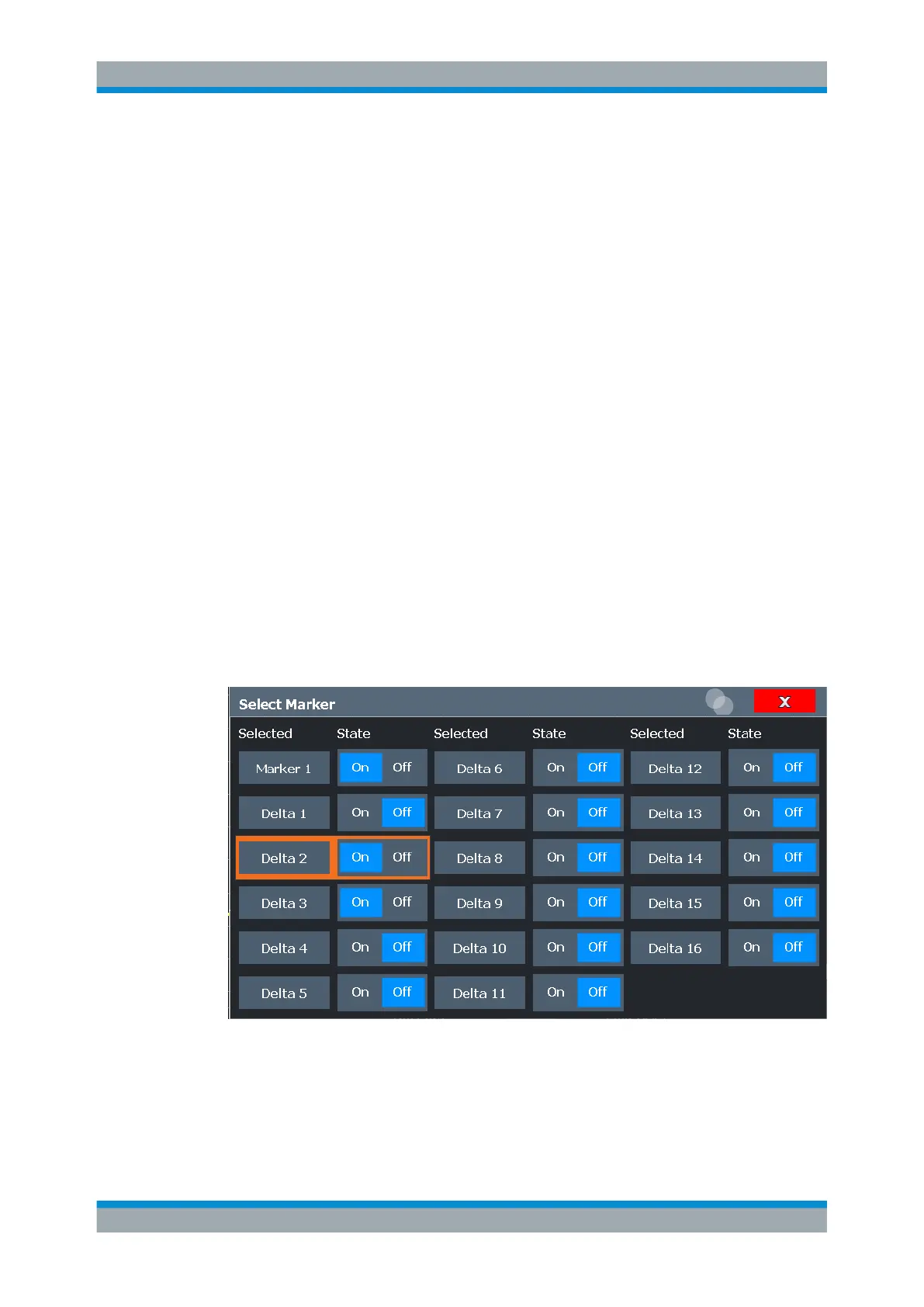

The "Select Marker" function opens a dialog box to select and activate or deactivate

one or more markers quickly.

Remote command:

CALCulate<n>:MARKer<m>[:STATe] on page 1155

CALCulate<n>:DELTamarker<m>[:STATe] on page 1153
