Measurements and Results
R&S
®
FSW
306
User Manual 1
173.941
1.02 ─ 43

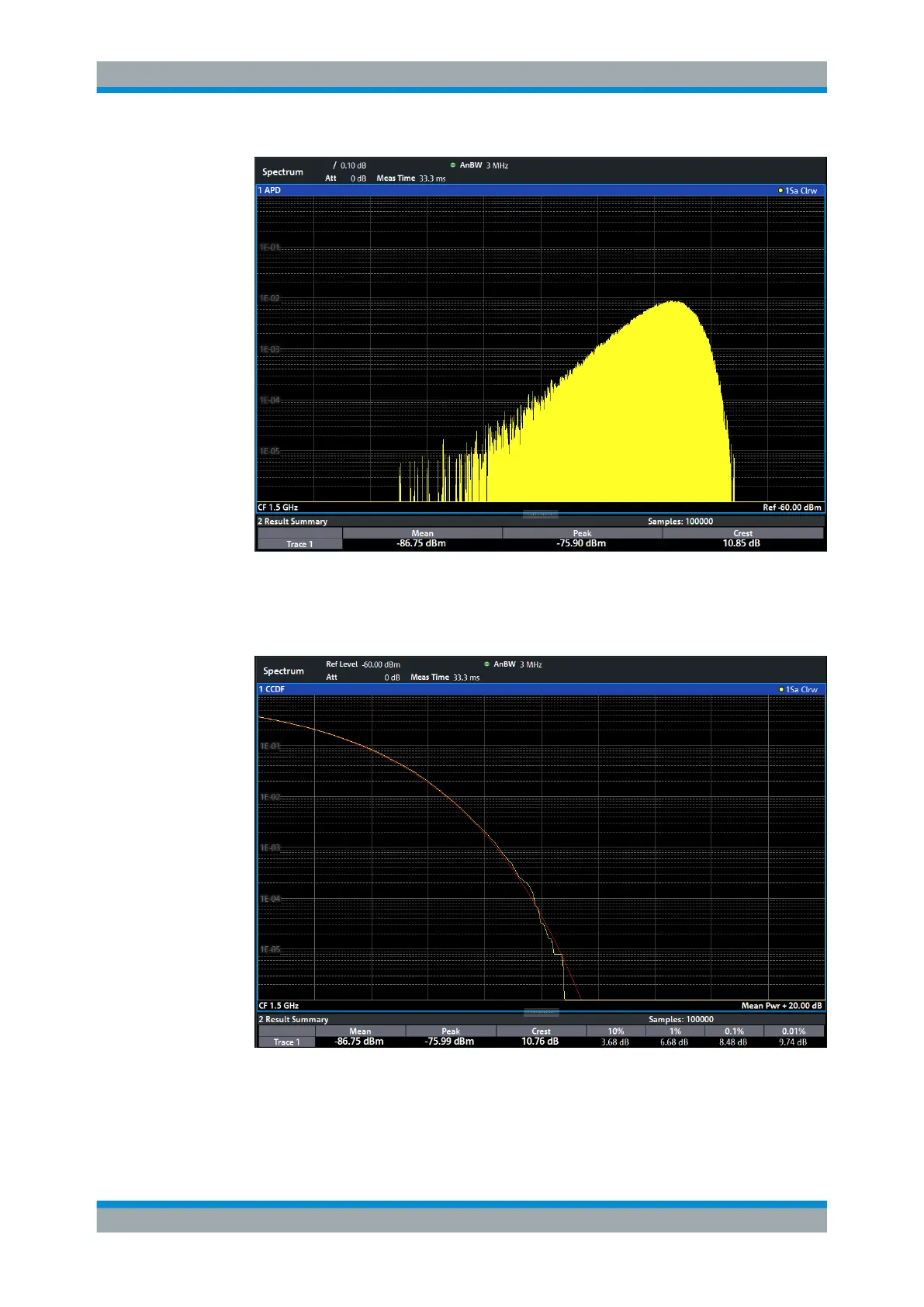

Figure 7-50: Amplitude probability distribution of white noise
4.
Now select the "CCDF" measurement function from the "Select Measurement" dia-
log box.
Figure 7-51: CCDF of white noise
Statistical Measurements (APD, CCDF)
305
307
