R&S FSW Series User Manual

Getting Started
R&S
®
FSW
75User Manual 1173.9411.02 ─ 43

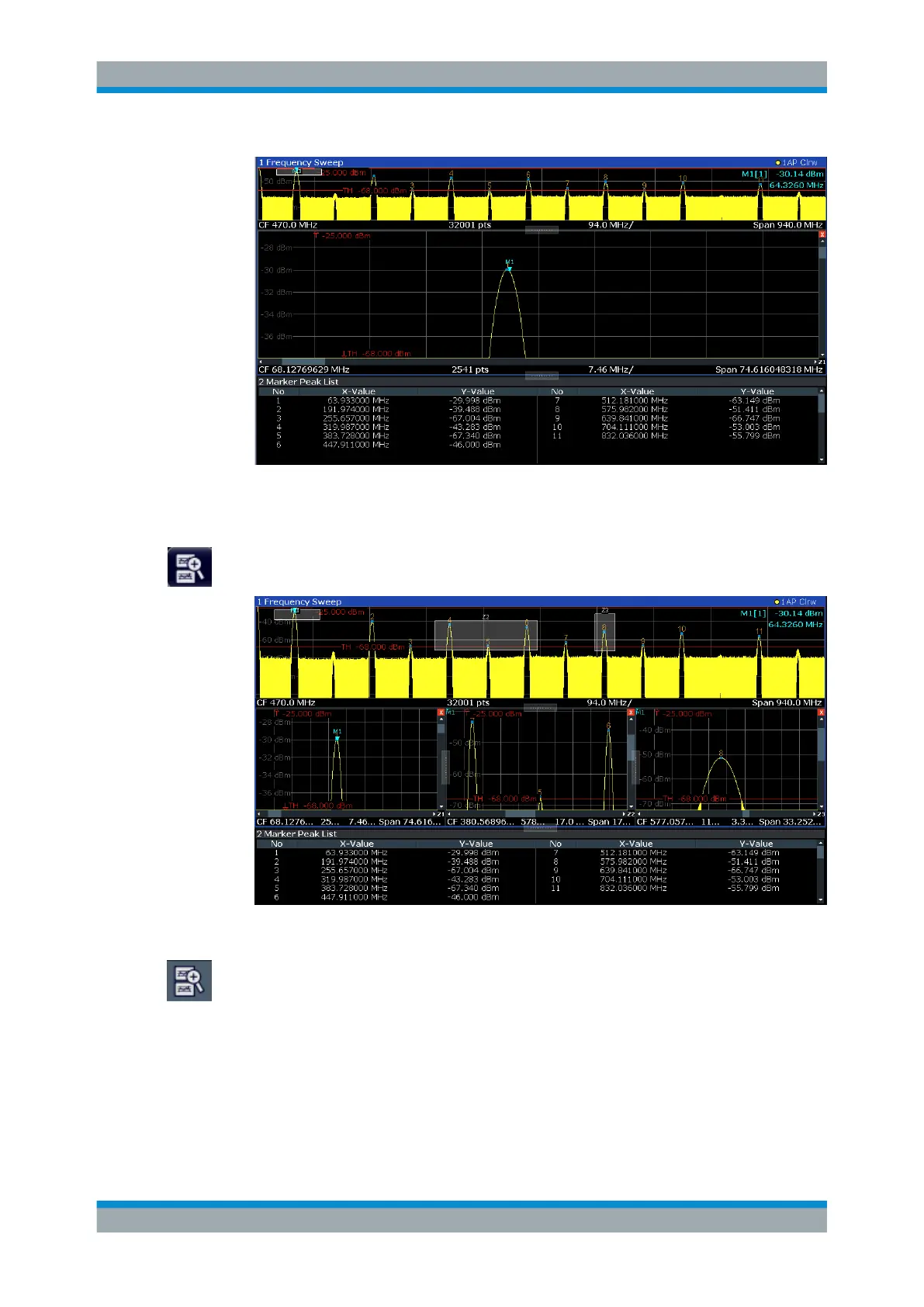

Figure 5-17: Zoomed peak with increased number of sweep points
Note that the trace becomes much more precise.
4. Tap the "Multiple Zoom" icon in the toolbar again and define a zoom area around
markers M4, M5 and M6.
Figure 5-18: Multiple zoom windows
5. Tap the "Multiple Zoom" icon in the toolbar again and define a zoom area around
marker M8.
6. To increase the size of the third zoom window, drag the "splitter" between the win-
dows to the left or right or up or down.
Trying Out the Instrument
