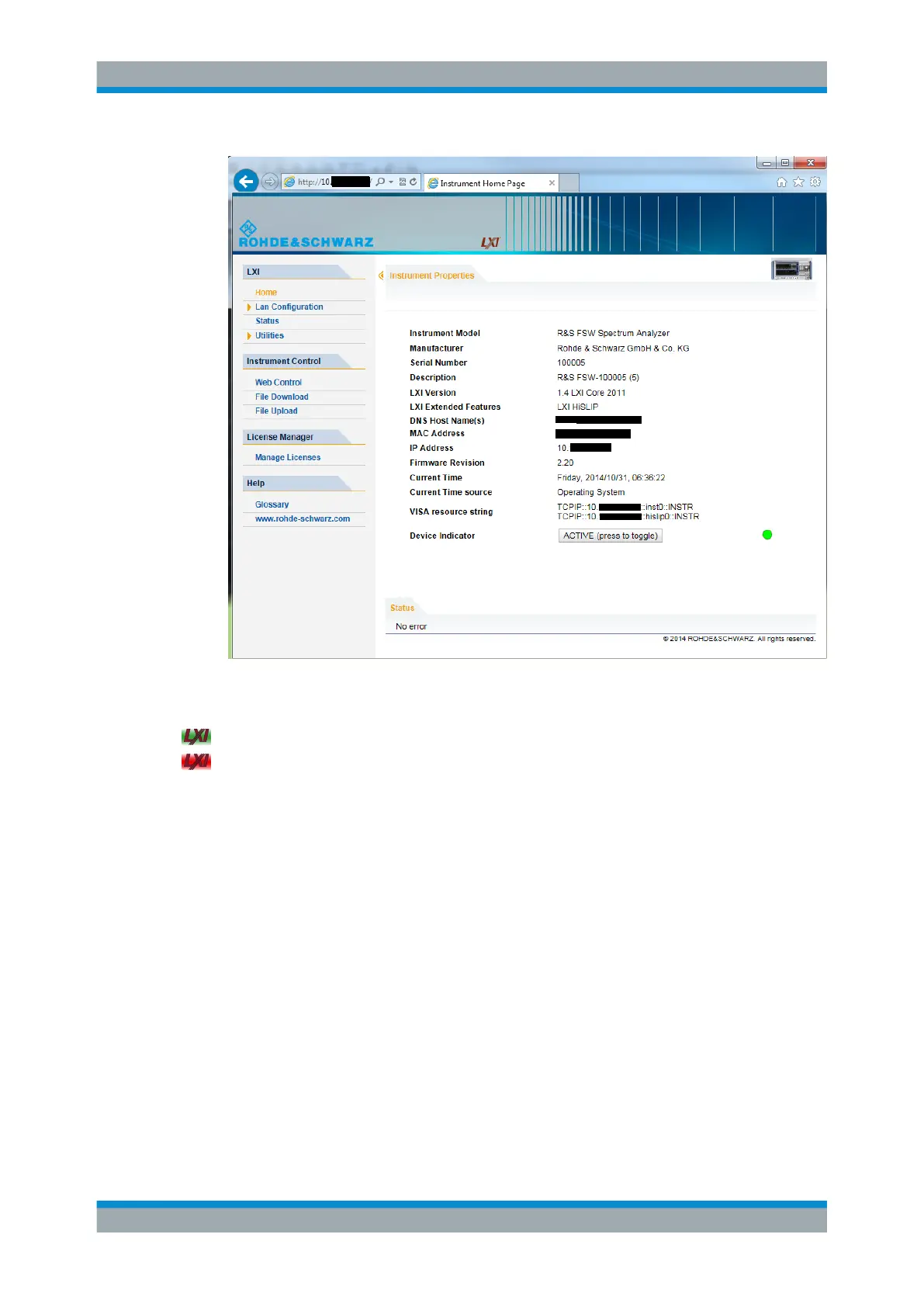

The instrument home page displays the device information required by the LXI stan-
dard including the VISA resource string in read-only format.
► Press the "Device Indicator" button on the "Instrument Home Page" to activate or
deactivate the LXI status icon on the status bar of the R&S FSW. A green LXI sta-
tus symbol indicates that a LAN connection has been established; a red symbol
indicates an error, for example, that no LAN cable is connected. When a device is
connecting to the instrument, the LXI logo blinks. The "Device Indicator" setting is
not password-protected.
The most important control elements in the navigation pane of the browser interface
are the following:
●
"LAN Configuration" opens the menu with configuration pages.
●
"Status" displays information about the LXI status of the instrument.
●
"Help > Glossary" opens a document with a glossary of terms related to the LXI
standard.
LAN Configuration
The LAN configuration consists of three parts:
●
"IP configuration" provides all mandatory LAN parameters.
●
"Advanced LAN Configuration" provides LAN settings that are not declared manda-
tory by the LXI standard.
