Operation
R-Concept
106 / 476

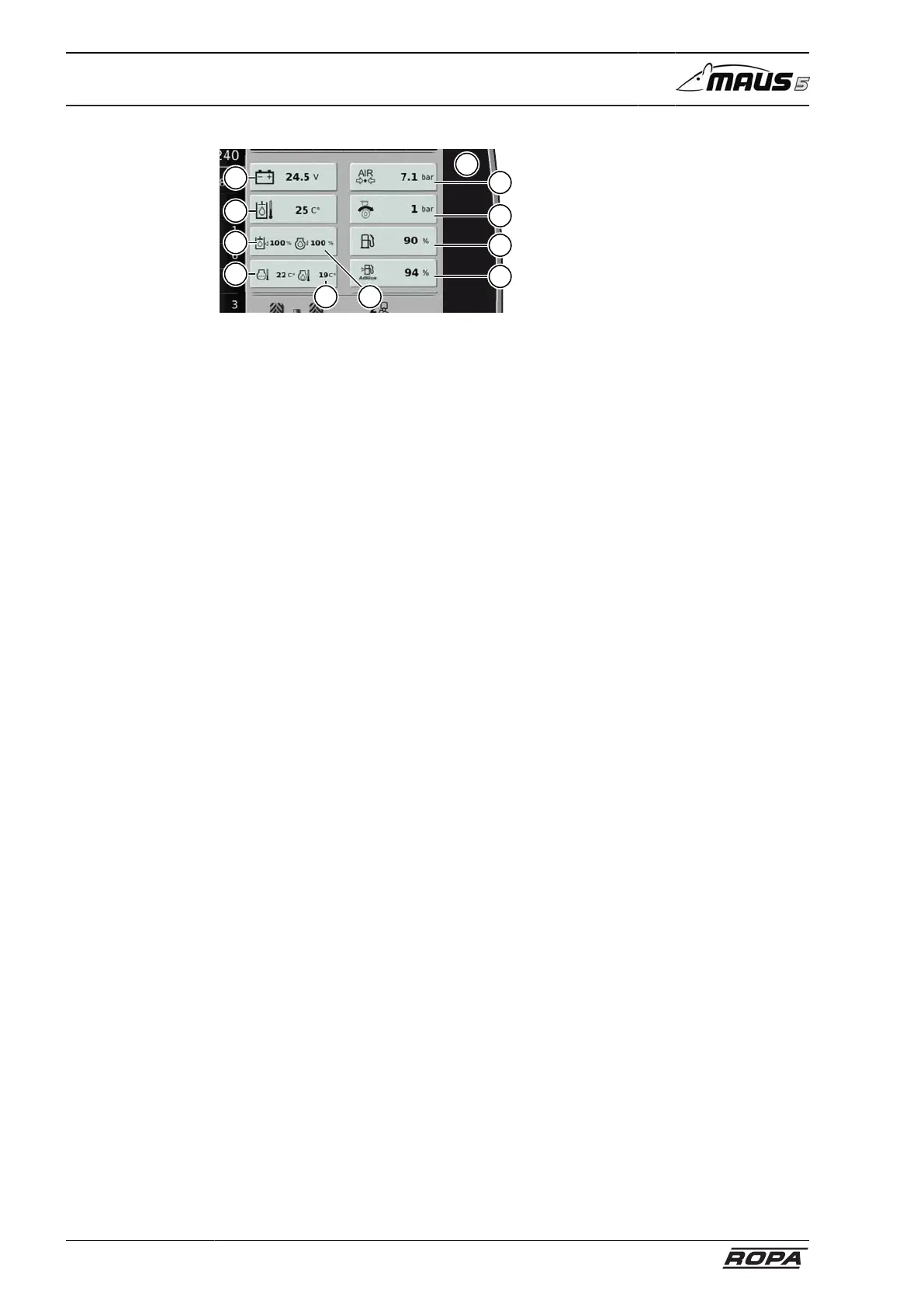

(3) Display field: Operating parameters
3
9
10
11
12
5
6
7
8
1314
(5) Voltage vehicle power supply
(6) Hydraulic oil temperature
(7) Hydraulic oil level
(8) Cooling water temperature
(9) Compressed air system reservoir pressure
(10) Pressure traction drive
– Arrow counterclockwise: higher pressure forward
– Arrow clockwise: higher pressure backward
(11) Tank level fuel
(12) AdBlue tank level
®
(13) Engine oil level (is hidden when the diesel engine runs)
(14) Engine oil temperature (above 60°C is hidden)
