Maintenance and Service
Infeed conveyor
363 / 476
7.10.1 Tensioning infeed conveyor
WARNUNG
Hazard of severe injuries.
The retension of the infeed conveyor belt may only be performed with the drive
switched off and the engine shut off.
– Stop the machine and shut down diesel engine.
– The machine must be secured against inadvertent starting of the engine.
Check the tension of the infeed conveyor only with the pickup folded out and lowered
to working height.

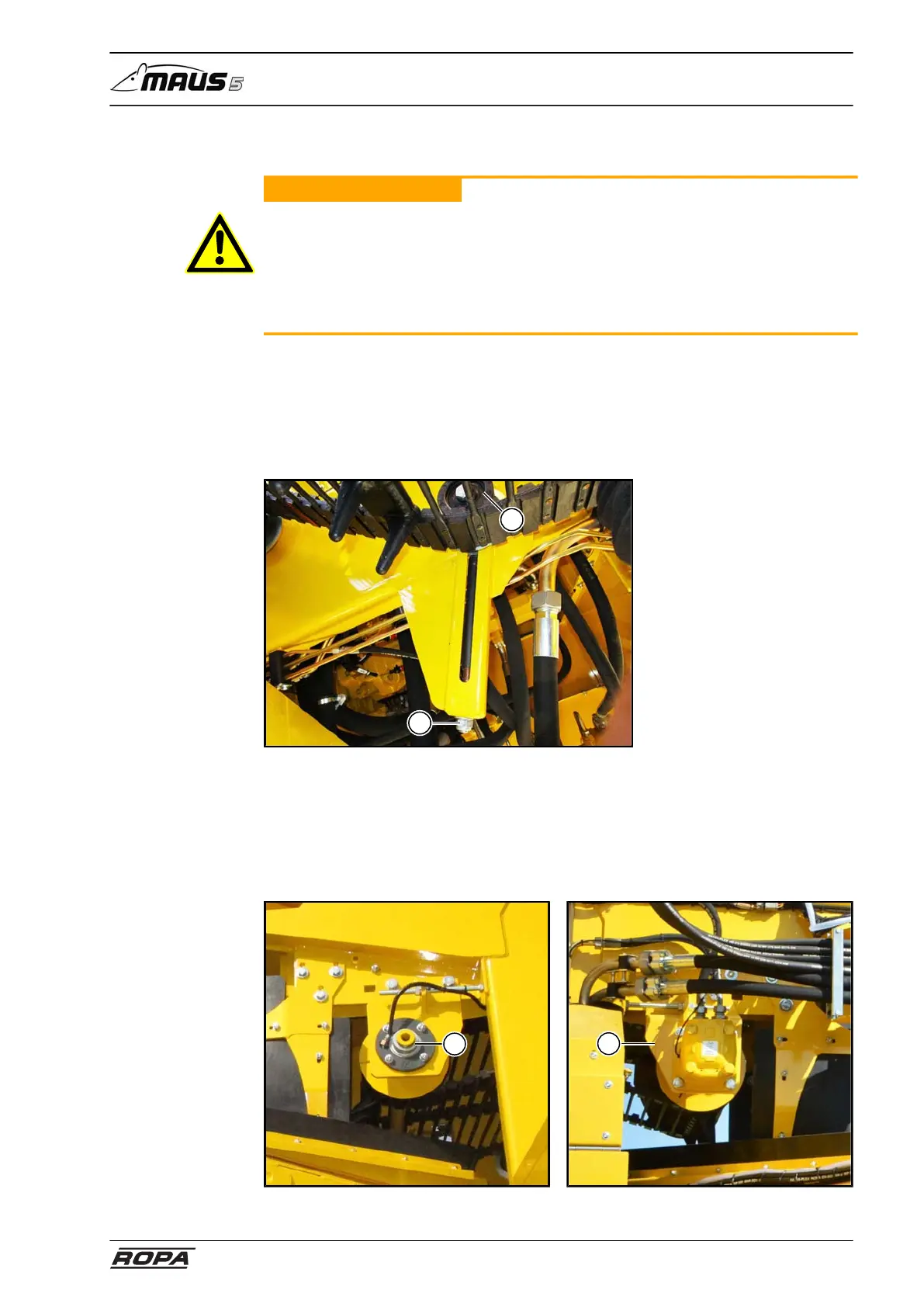

If it is necessary to tension the infeed conveyor, loosen the fastening screws from the
tension roller (2) (right and left behind the front wheel on the bottom of the frame tube)
and with the aid of the tension screw (1) pull the tension roller down (2). Make sure
that the tension rollers (2) are pushed out equally on both sides.
1
2
(1) Tensioning bolt
(2) Tension roller
Synchronism
If the infeed conveyor is severely one-sided on the side flange of the drive wheels, it
can be synchronised by moving the oil engine bracket (4) or drive shaft (3).
3
4
