Maintenance and Service
Pickup
348 / 476
7.8 Pickup
7.8.1 Central mark
Check the bottom of the central mark for dirt every day when the side pickup sections
are folded in (visual inspection). Heavy dirt should be removed immediately.

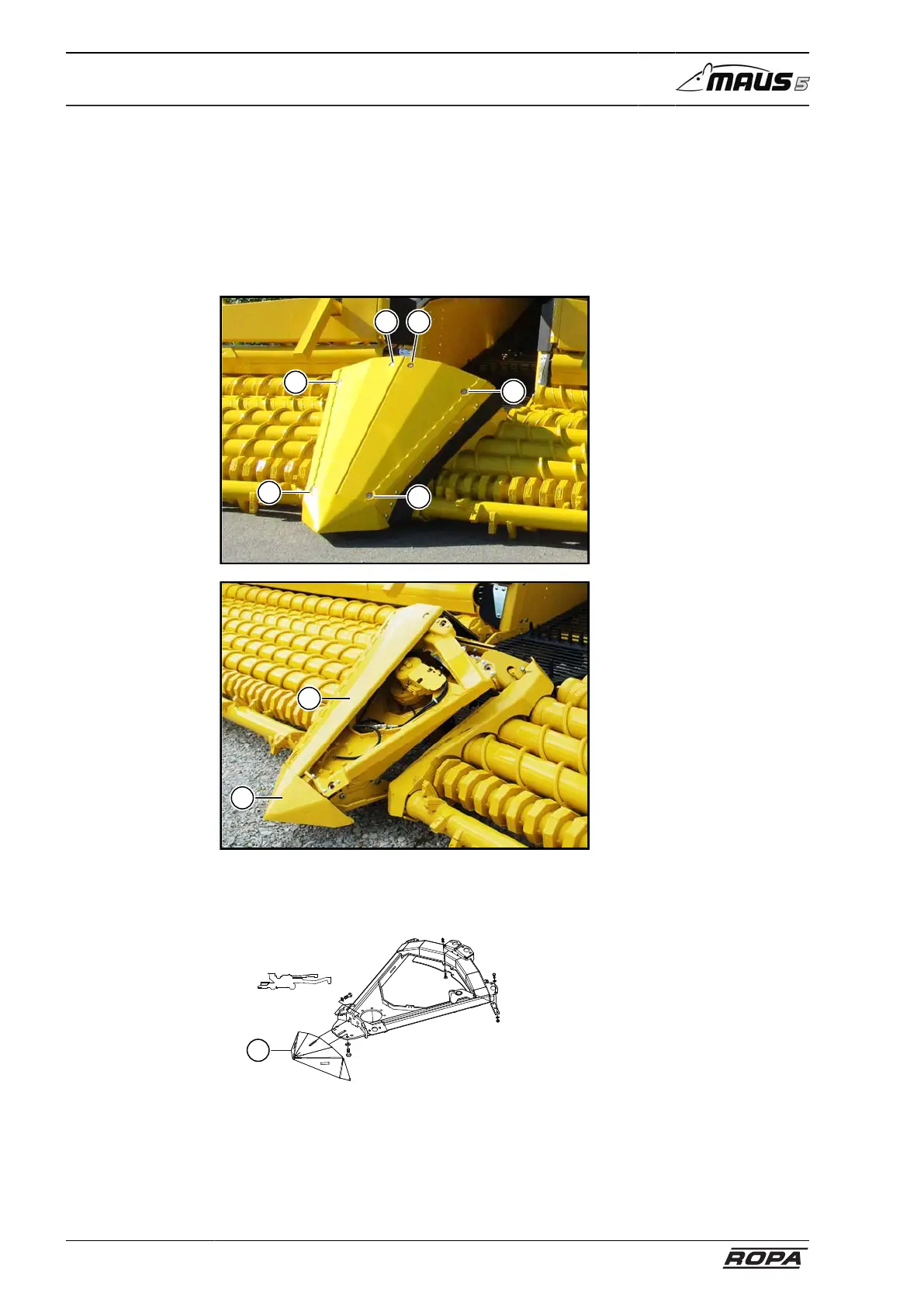

The central mark cover (2) can be partially removed after unscrewing three screws (1).
1
1
1
1
1 1
3
2
The mark (3) - the front part of the central mark - is a consumable part. It should be
prepared or replaced before the material is completely worn away. We recommend
keeping a stock of this part on hand for machines that are heavily used.
3
