8.9 Connecting salvaging aids
1

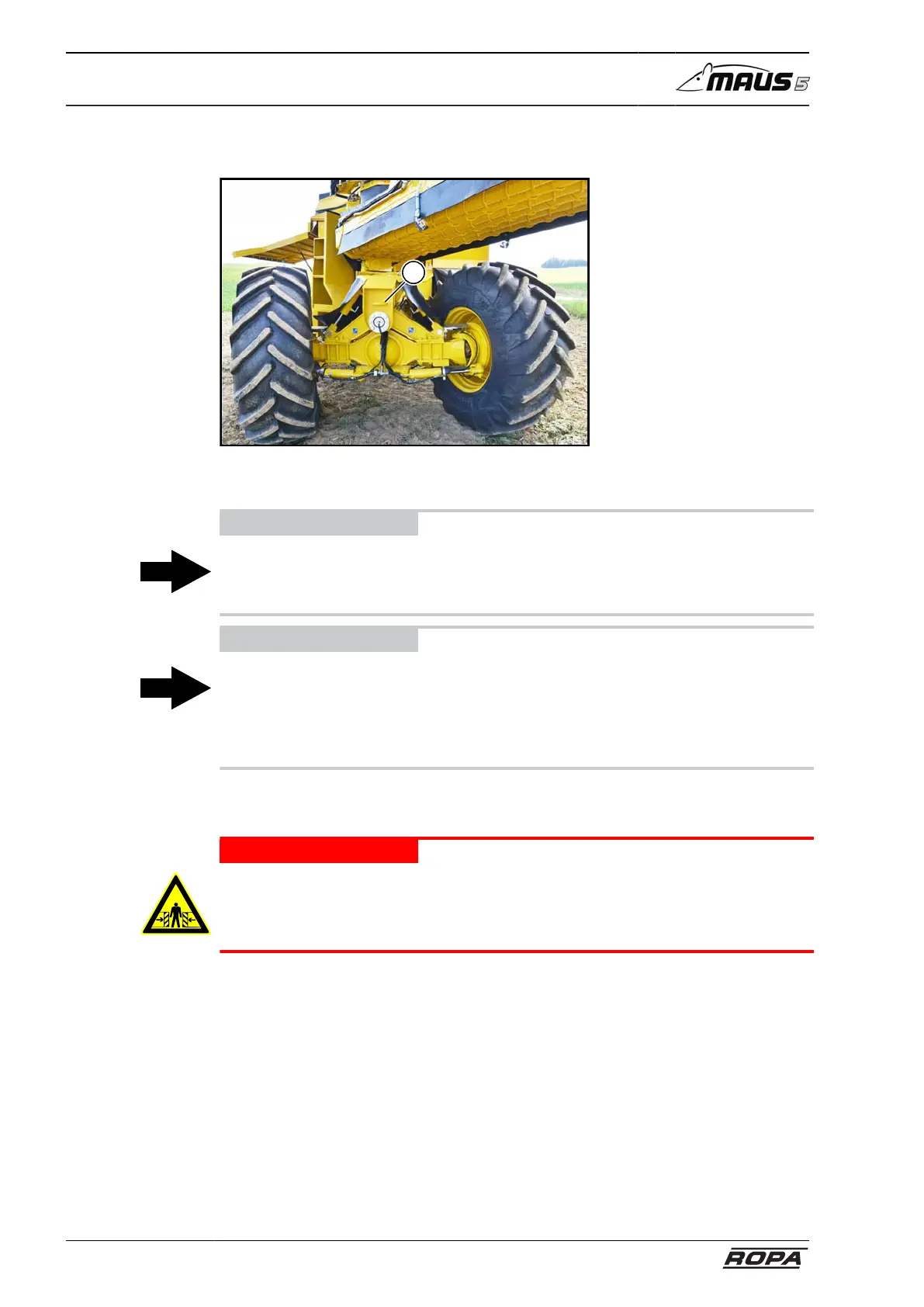

There is a salvaging lug (1) in the rear at the centre of the engine compartment for
connecting salvaging aids (tow bar, etc.).
ADVICE
Connecting of salvaging aids at the front side of the machine is extremely problematic
and must be carried out by qualified versed personnel only in an extreme emergency.
In case of need, contact ROPA customer service.
ADVICE
Always make sure of sufficient rigidity of the salvaging aids. Consider that the load
caused on the salvaging aids during salvaging of a vehicle may amount to several
times the normal vehicle weight. For salvaging of the machine, call in very experi-
enced specialists and always use equipment with sufficient bearing capacity and load
capacity and suitable vehicles.
8.10 Jacking up for wheel change
DANGER
Hazard of fatal injuries!
– For safety reasons, the machine must be always jacked up only on one axle and
on one side.
– To jack up park the machine on even and sufficiently stable ground.
– Fold out the pickup. Truck conveyor and counterweight arm remain in transport
position.
– Secure the machine against rolling by engaging the parking brake and using the
wheel chocks.
– A (hydraulic) jack of at least 15 t load capacity is required for lifting.
– Position the jack as shown in the following pictures.
