Operating Components
Operating console R-Concept
73 / 476
5.7 Operating console R-Concept
2
3
4
5
6
12
7
8
9
10
1
11
9

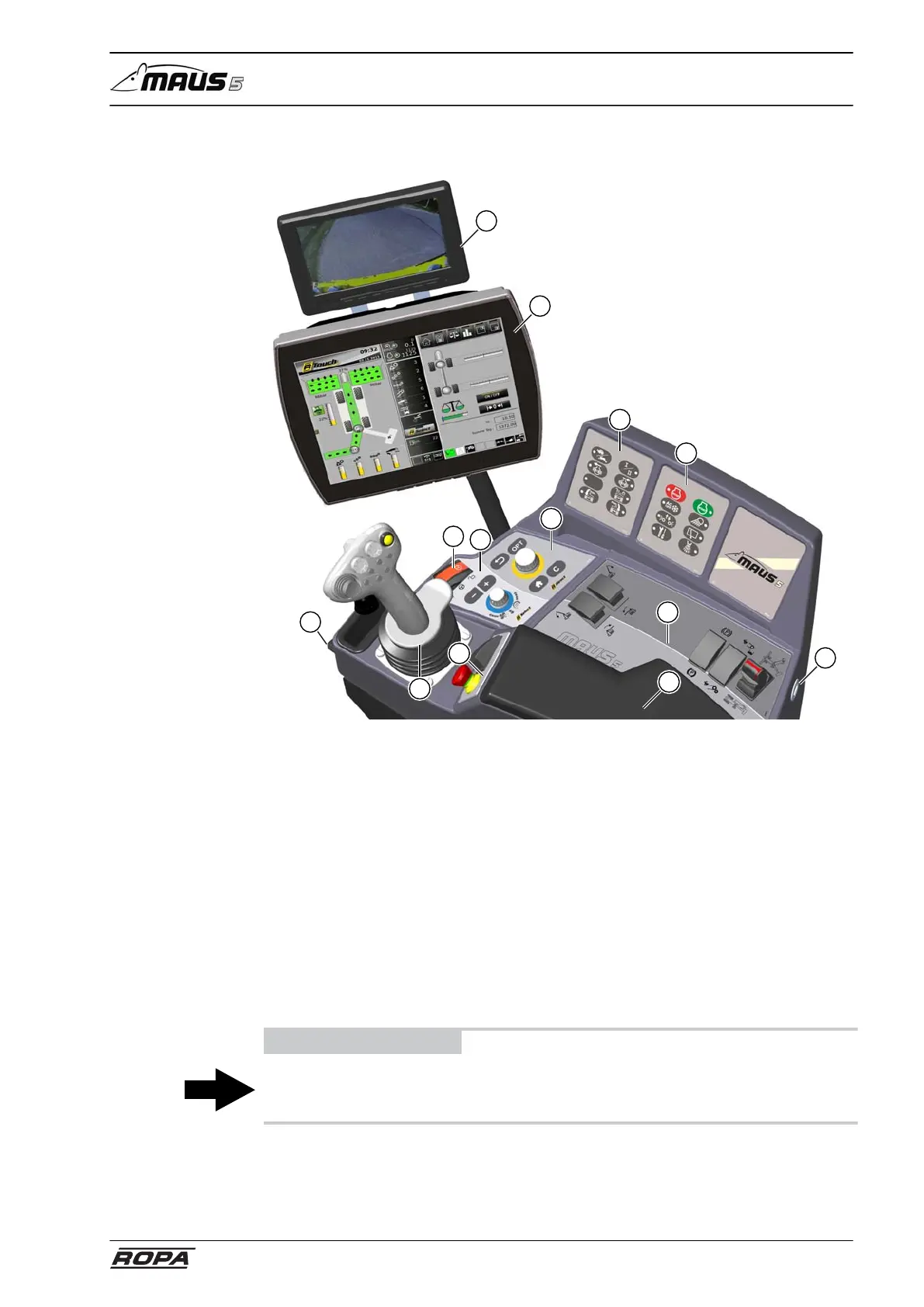

Detailed description you can find in Chapter 6 "Operation" (see page 95). The con-
sole is divided into different operating fields:
(1) Video monitor
(2) Colour terminal R-Touch
(3) Keypad I
(4) Keypad II
(5) Operating panel R-Direct
(6) Operating panel R-Select
(7) USB interface
(8) Foldable armrest with storage compartment
(9) Switches on operating console
(10) Joystick with multi-functional handle
(11) Main steering switch
(12) Lever height adjustment operating console
ADVICE
Use only the USB stick supplied by ROPA or a similar stick formatted in FAT 32.
