5.7.8 Right joystick with multi-functional handle

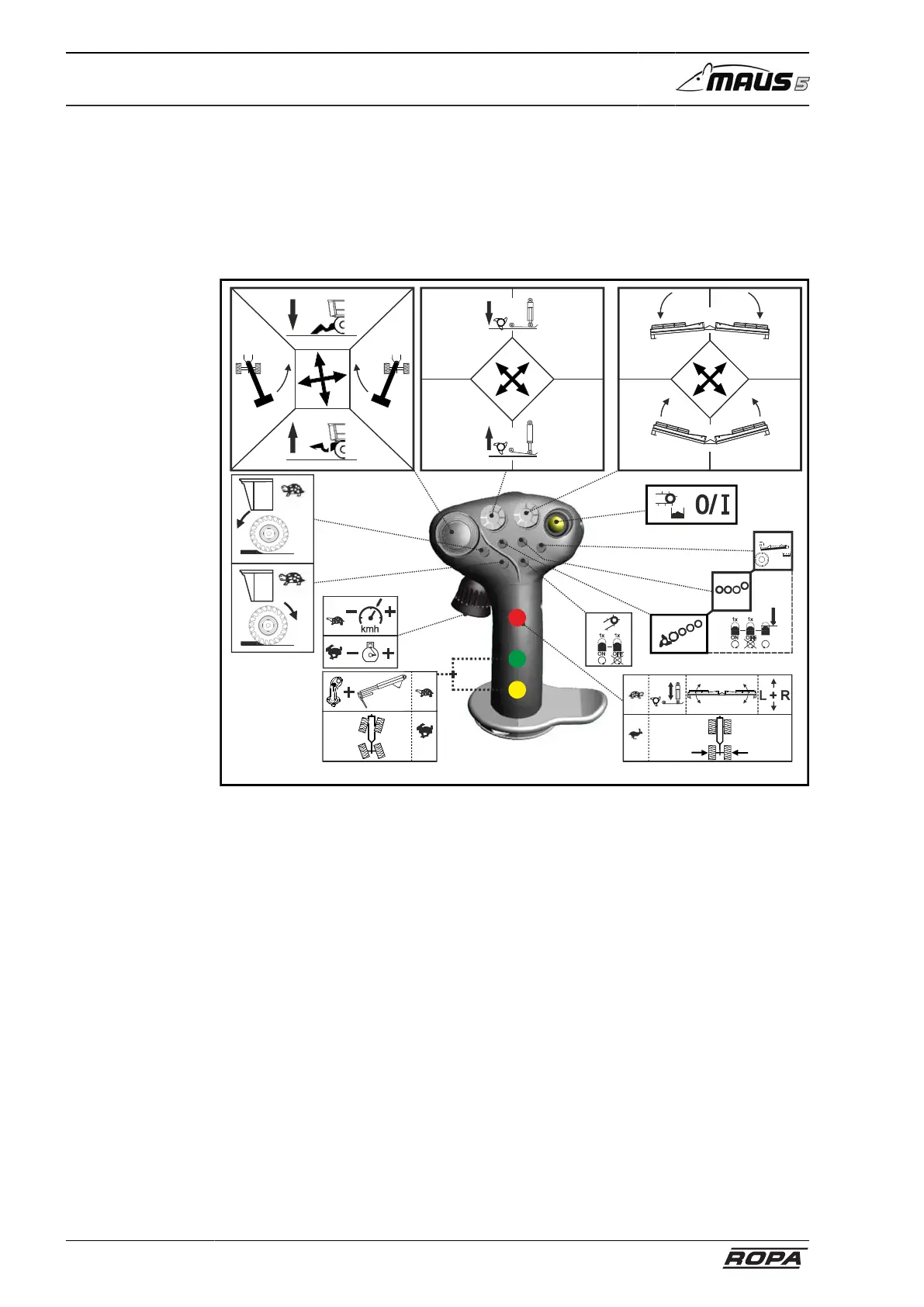

The joystick enables easy control of a multitude of functions of the machine with a
single hand without distracting the attention of the operator. For better orientation, a
transparent sticker is located on the side window of the driver's cabin containing the
following schematic overview of all functions of the joystick with multifunctional handle.
A detailed description (see Chapter 6.4 - page 132)
