7.3.1 Hydraulic oil tank
The tank for the hydraulic oil is located on the cabin platform behind the railing. In
addition to the display on R-Touch, oil level and oil temperature can also be read at
the inspection glass (1) on the front of the hydraulic oil tank. The hydraulic fluid level
should always remain in the range between the centre of the inspection glass and
the upper edge of the inspection glass. Make sure that the oil level in the hydraulic oil
tank is correct at all times. During all work on the hydraulic system, make sure of the
utmost cleanliness!
Please observe that different types of hydraulic fluid may not be mixed.
2
1

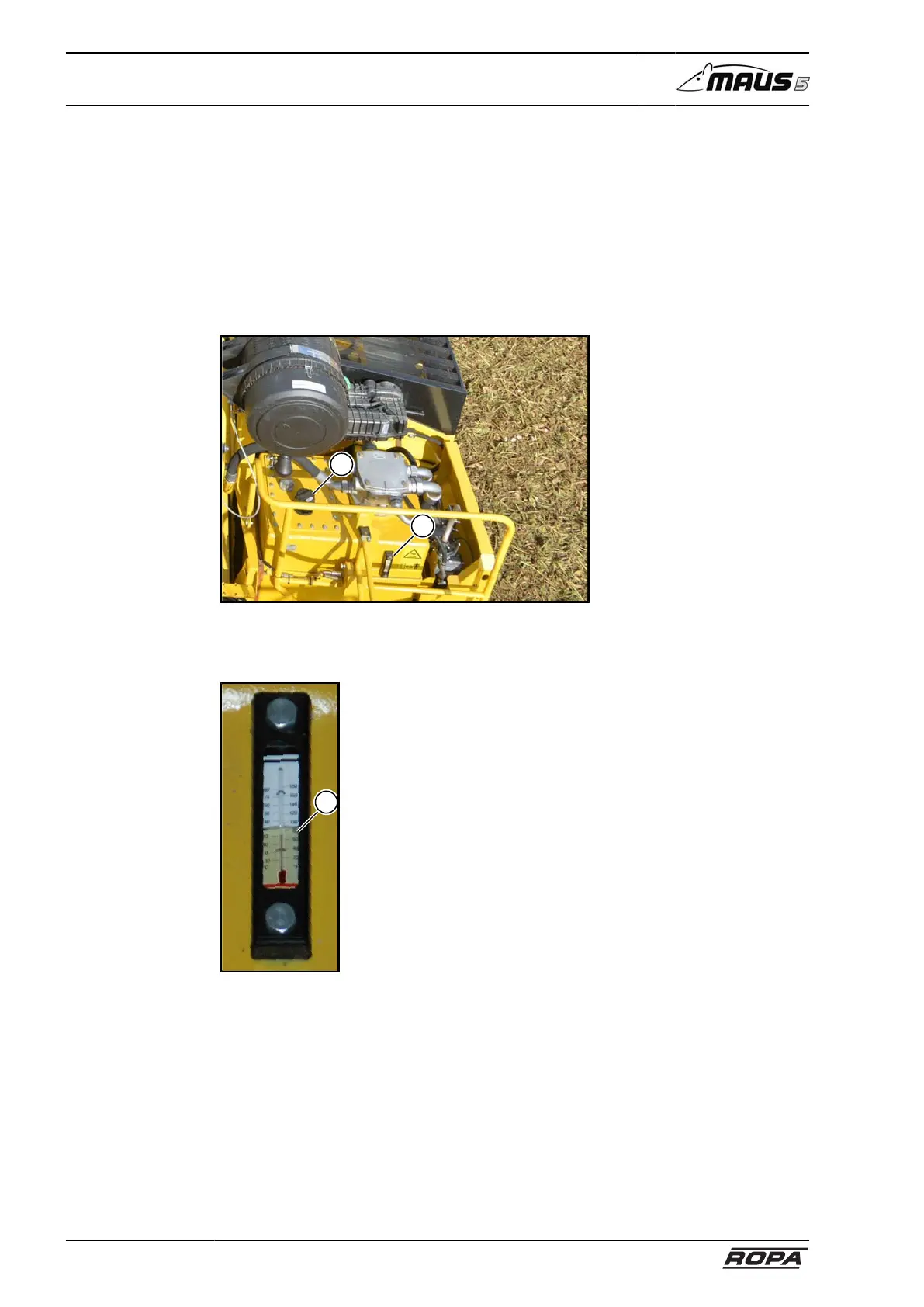

(1) Inspection glass oil level + oil temperature
(2) Oil filling cap
