6.3.4 Light control

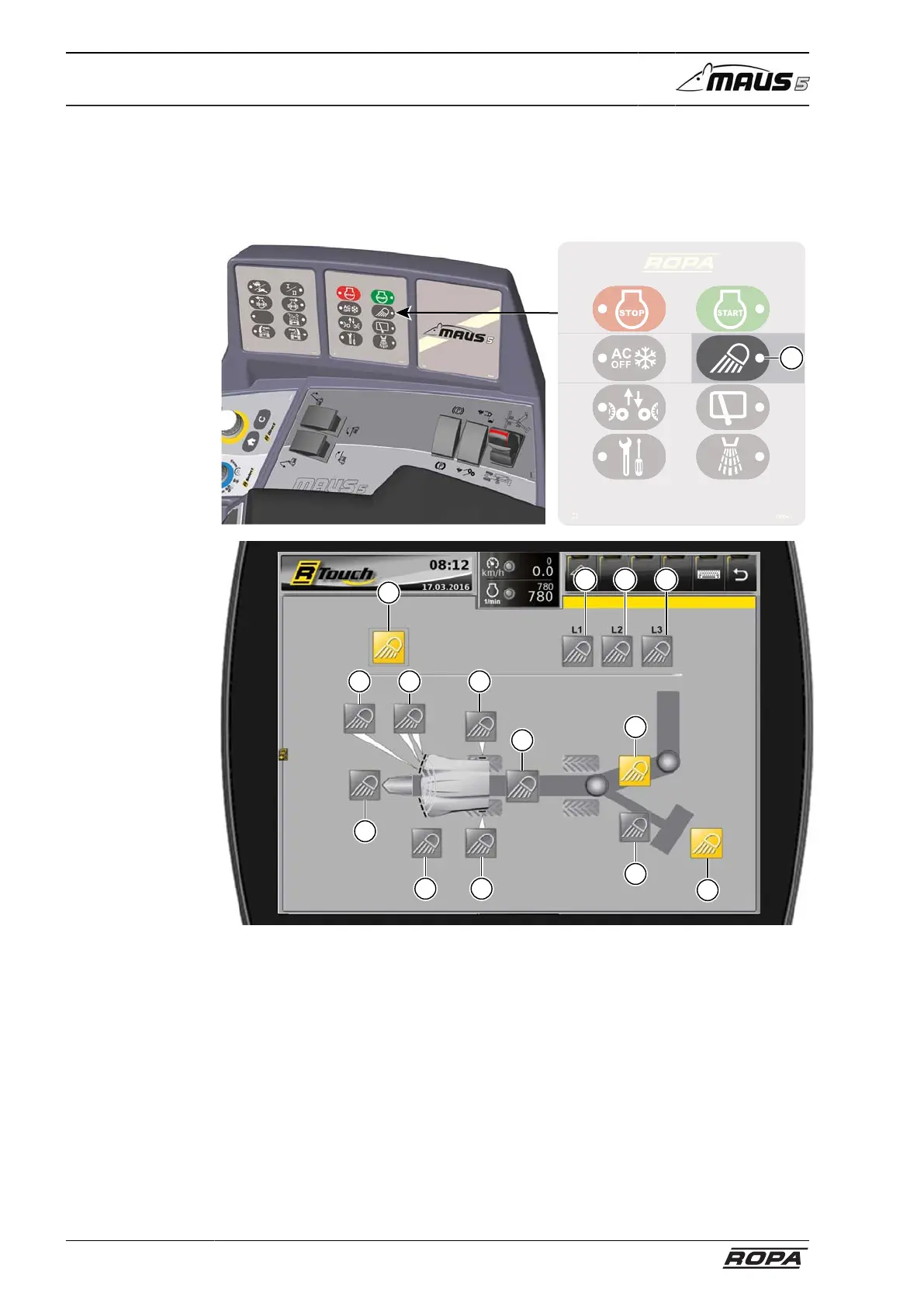

The lighting in the machine is controlled at R-Touch. The light control menu appears
when the key (4) on keypad II is pressed for three seconds. Briefly pressing this key
switches the light on or off with the last selected setting.
355541
4
Window wiper
1
Light control
6 7 8
32 4
5
9
11
10
1213
14
(1) Switch light on/off
(2) Spotlight driver's cabin roof
(3) Spotlight driver's cabin roof
(4) Spotlight driver's cabin roof right rear
(5) Spotlight vehicle frame left and right
(6) Light program 1
(7) Light program 2
(8) Light program 3
(9) Infeed conveyor, cleaning and truck conveyor spotlights
(10) Back run light
(11) Rear axle lighting
(12) Spotlight driver's cabin roof left rear
(13) Spotlights under rear-vision mirrors left and right
(14) Central mark spotlight
