Operation
R-Concept
127 / 476

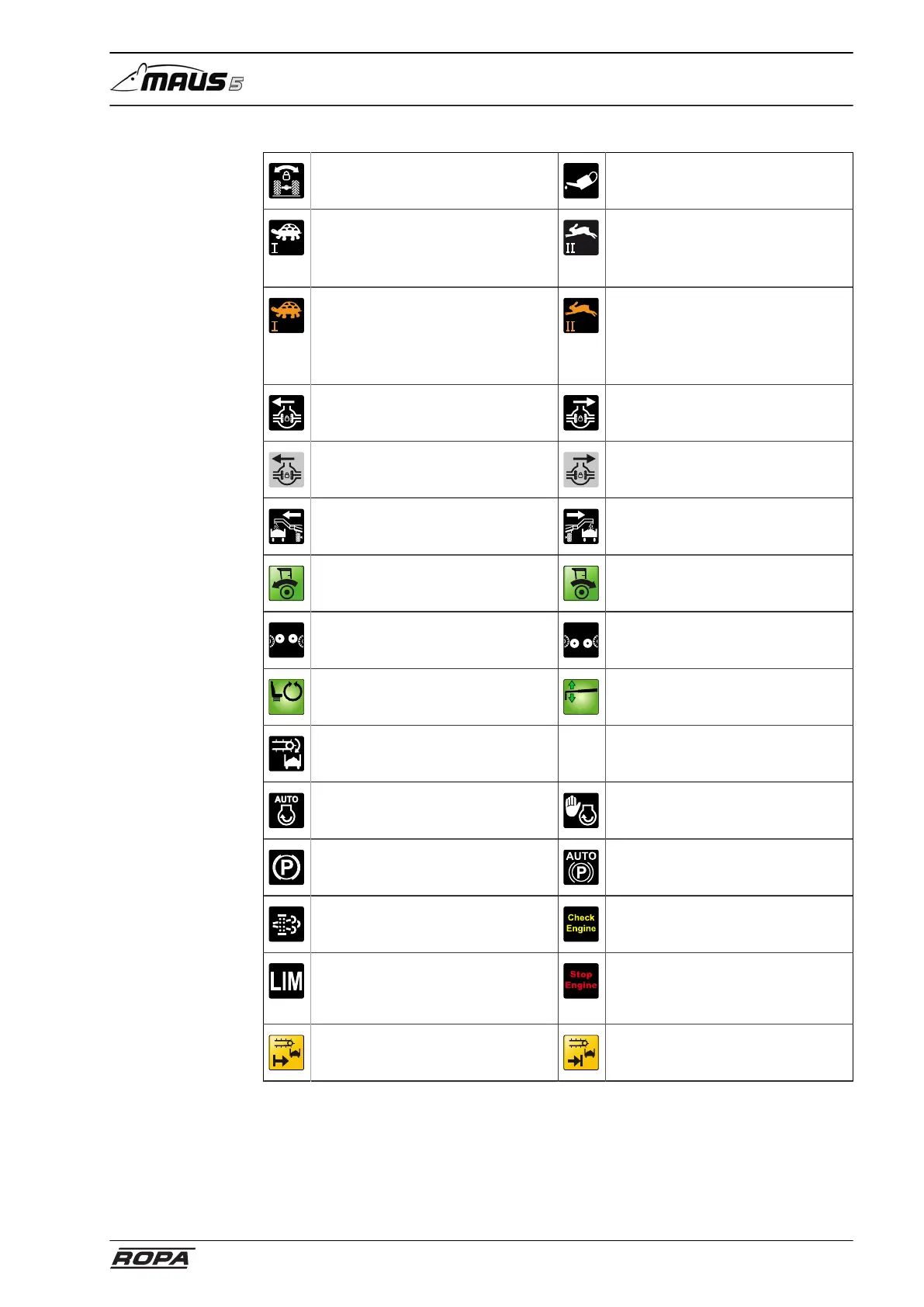

Status indicators
Oscillating axle support enabled Central lubrication runs
Operating mode "Tuttle" is active
(loading)
1st gear is active
Operating mode "Rabbit" is active
(road drive)
2nd gear is active
Operating mode "Turtle" selected,
gear not engaged
1st gear selected, gear is not
engaged
Operating mode "Rabbit"
selected, gear not engaged
2nd gear selected, gear is not
engaged
Differential lock front engaged Differential lock rear engaged
Differential lock front selected,
lock not yet engaged
Differential lock rear selected, lock
not yet engaged
Loading direction left active Loading direction right active
Traction drive loading forward
activated
Traction drive loading backward
activated
Additional axles raised Additional axles lowered
Driver's seat position indicator Height indicator pile pickup in %
Machine drive switched on
Automotive driving active Manual engine speed control
active
Parking brake engaged Automatic parking brake active
DEF control light (Diesel Exhaust
Fluid). AdBlue® Warning
Check Engine warning light (AWL
warning), check diesel engine
LIM control light, diesel engine
torque limiter is active
Stop Engine warning light, shut
off diesel engine (performance
reduced)
"START" load mode active "END" load mode active
