Malfunction and Remedies
Electrics
391 / 476

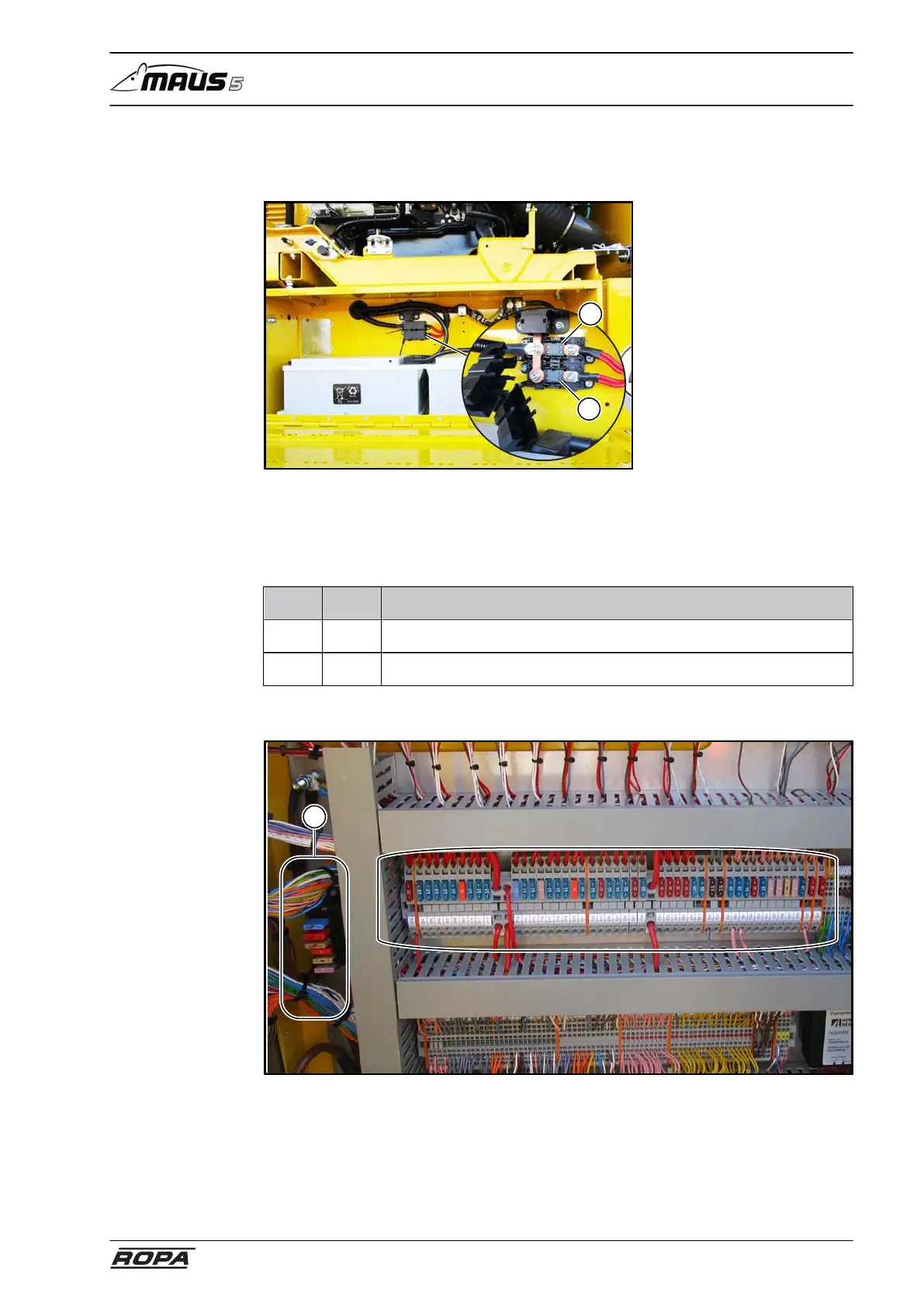

8.2.2 List of fuses (melting fuses)
Main fuses in battery case
1
2
The main fuses are situated in the battery case (Mega-Fuse).
F01 (1) supplies the central electrics and the seat console in the driver's cabin.
F02 (2) supplies the major part of the lighting.
Whether these fuses are intact can be determined with the measuring device (continu-
ity tester).
No. Ampere Function
F01 125 Supply central electrics X1
F02 125 Supply lighting X2
Fuses F03 to F69 in central electrics box
1
Electronic automatic cut-outs (1) for troubleshooting
