6.13.4 Pickup depth setting
– Depth guide of the pickup is assumed by the two support feet (10) adjustable in
height (except for external side of the two lateral parts of pickup) and the central
part (central mark).
– Drive into the beet pile.
– While doing so, set the pickup depth.
The pickup should be set to such a height that the fingers of the pickup roller enter
the ground for their whole length. This pickup depth is the optimum for preserving,
power saving work.

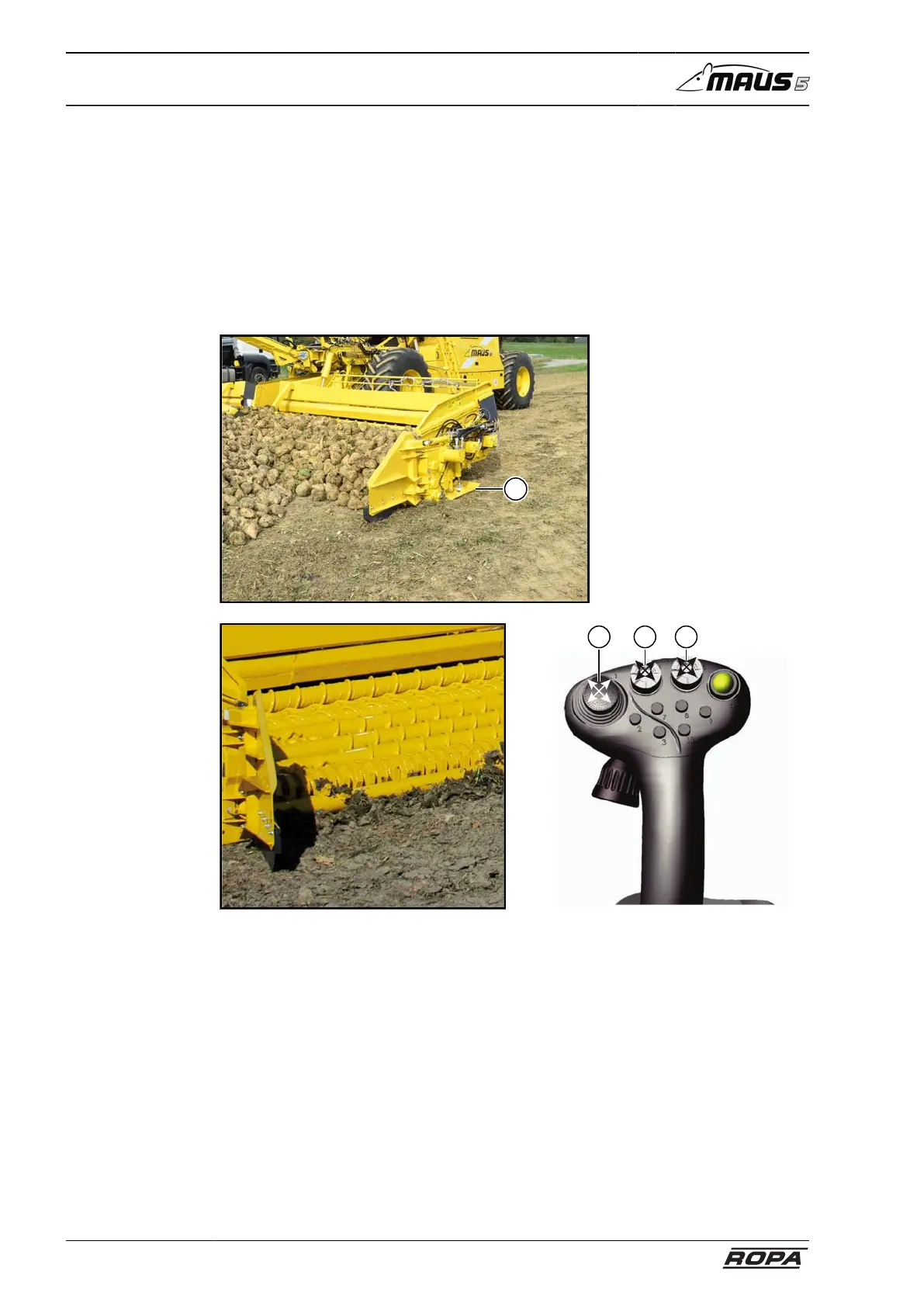

10
1 4 5
The mini joystick (1) on the right joystick is used to set the height of the pickup central
section and, along with it, the height at the inner edges of the pickup side sections.
The X-Y key (4) is used to set the height of the support feet and, along with it, the
height at the right and left outer edges of the pickup side sections.
6.13.4.1 Relieving the pickup
The pickup must be relieved so that it does not sink into the ground too deeply during
loading on softer pile terrain.
