Operation
Loading operation
213 / 476
6

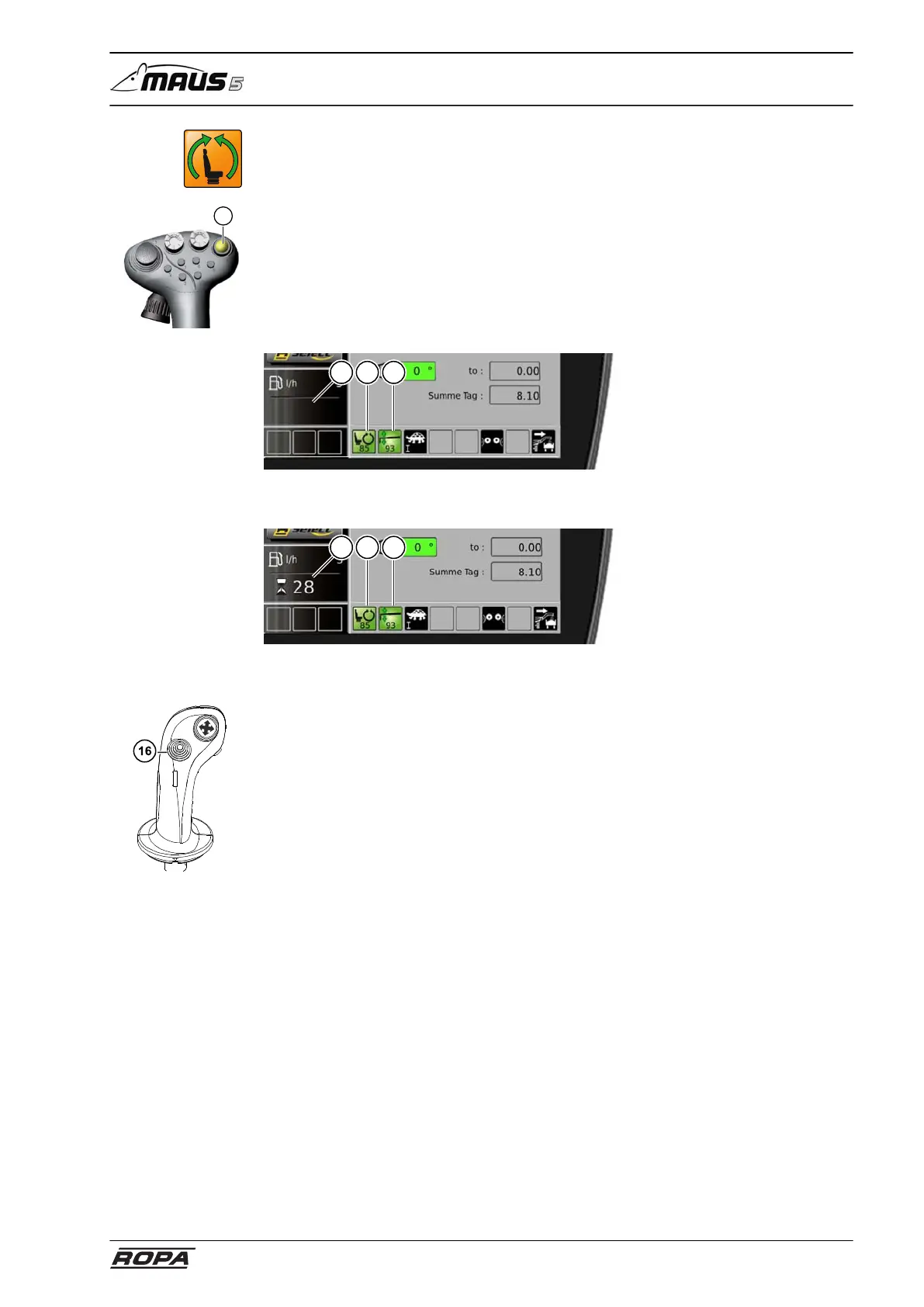

Safety circuit when switching on the machine drive
The driver's seat is equipped with a position encoder. That's why, the machine drive
can only be switched on with the yellow button (6) if the driver's seat is centred and
turned forward and if you had an overview of the pickup. The rotatable seat status indi-
cator (1) on the R-Touch must display green (display range between -20%/0%/+20%).
In addition, the pile pickup must be raised high enough so that the height indicator of
the pile pickup (3) is also green.
4 1 3
(4) Indicator for expiration of cooling-off period
4 1 3
(4) Indicator for expiration of cooling-off period (28 seconds remaining)
If the transport vehicles need to be exchanged rapidly, the machine drive can be
switched on again without turning the driver's seat into the green zone. This is possi-
ble as long as the cooling off period, counted down on the R-Touch starting from the
switch-off time of the machine drive; has not expired.
Recommendation for fuel-saving loading:
Use the X-Y key (16) to select an engine rotational speed between
1200 and 1300 rpm.
