Maintenance and Service
Pickup
352 / 476

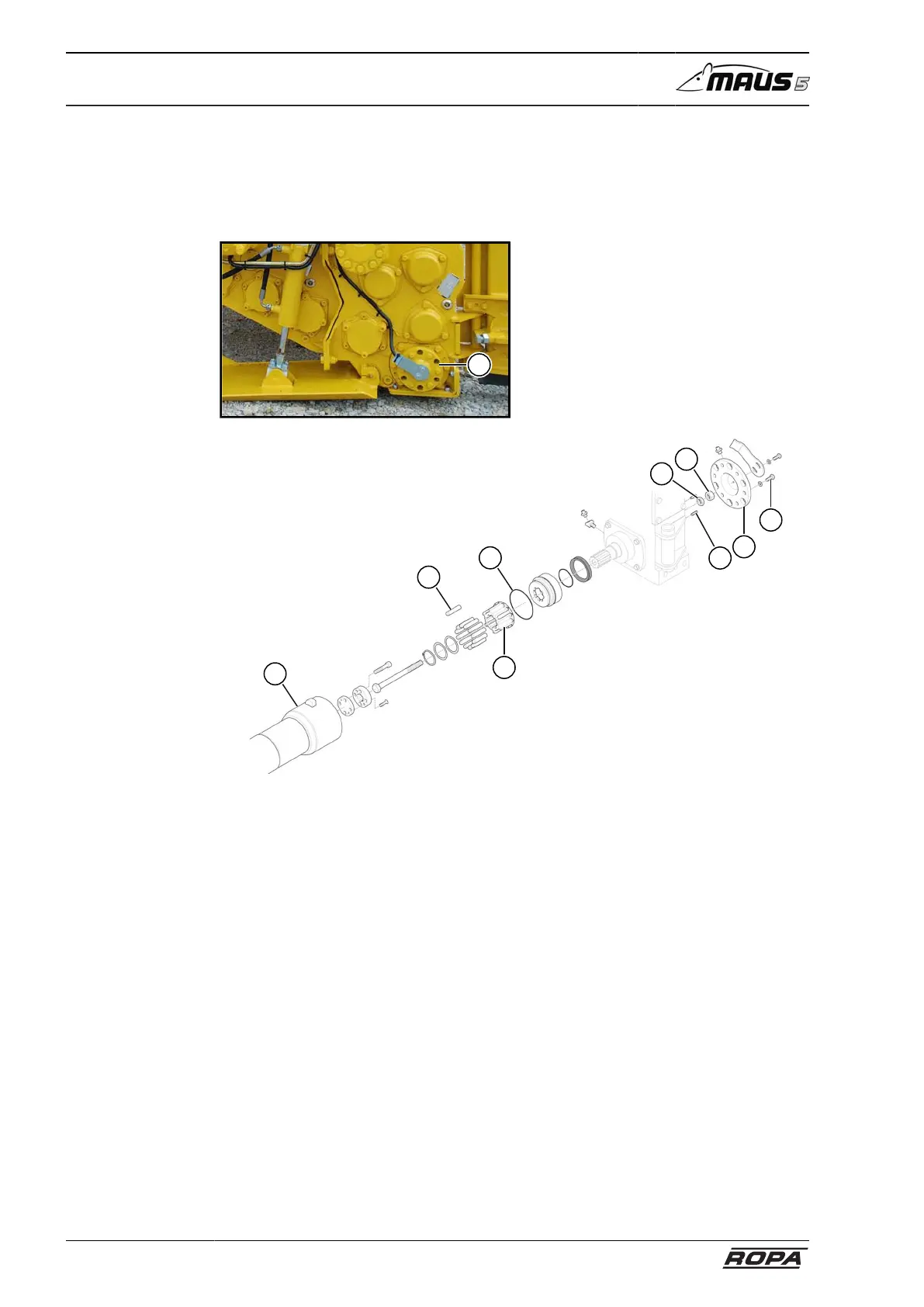

7.8.4.1 Removing and installing pickup and cleaning roller
The pickup roller and cleaning roller can only be removed together, because the fin-
gers of the pickup roller move between the discs of the cleaning roller. The gear oil
does NOT need to be drained for removal.
1
3
2
1
13
4
7
6
8
5
Before removing the pickup roller the cover (1) of the bearing flange (outside of gear-
box) must be removed:
– Unscrew the lubrication line.
– Unscrew the six hexagonal screws (2) (SW 13) on the cover and remove the cover.
– Unscrew the two grub screws (3) out far enough so the flat nut (4) is blocked.
– Loosen the lock nut (13) (SW30), screw in the two grub screws again and remove
the two nuts.
– Pull the pickup roller (5) from the gearbox. The pickup roller is only held by
12 plastic carriers (6). The 12 plastic carriers (ROPA item no. 102849) (6)
must be replaced every time the pickup roller is removed. The O-ring (ROPA
item no. 412217) (7) must also be replaced.
