Maintenance and Service
Pickup

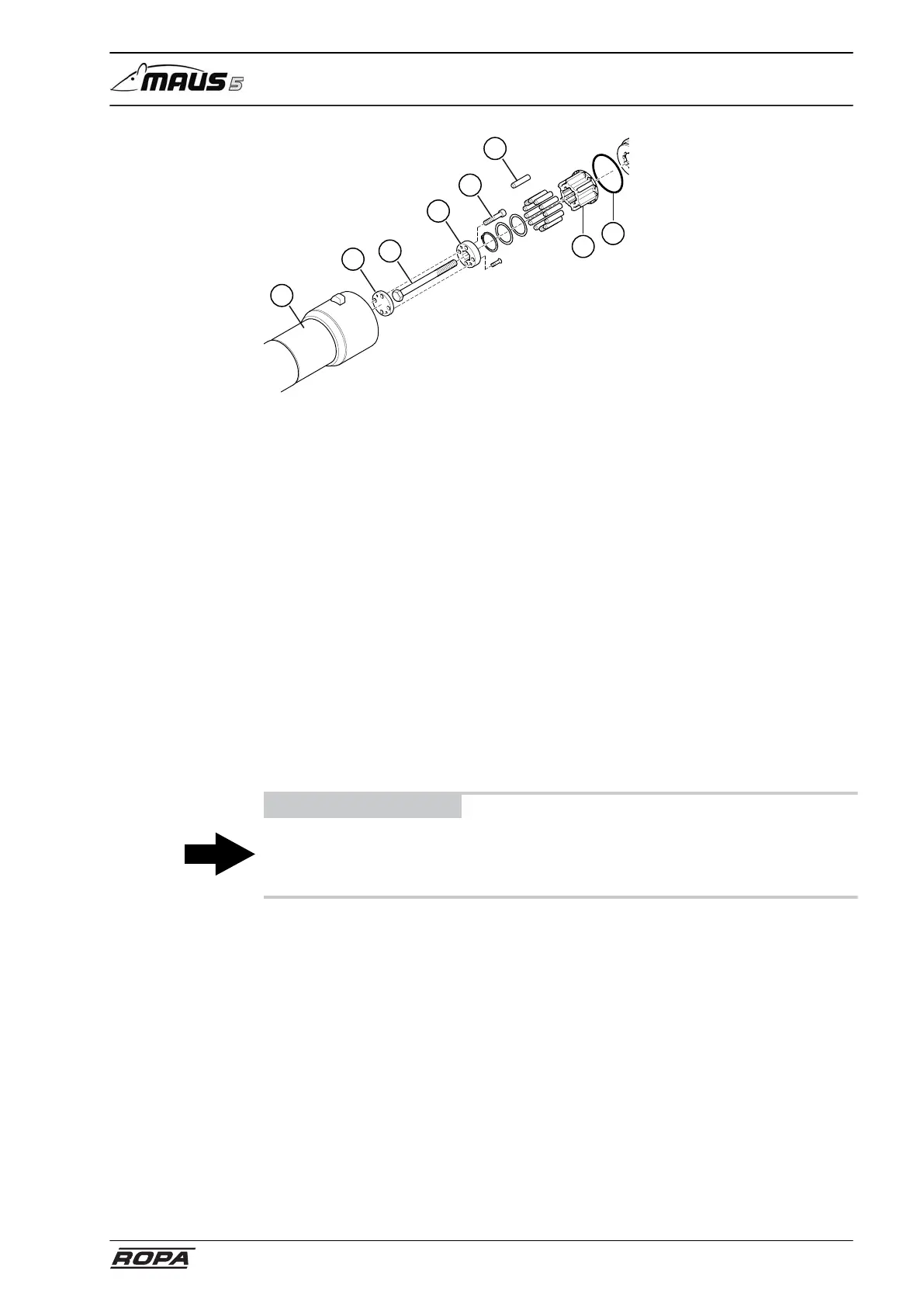

353 / 476
6
11
8
5
9
10
12
7
– Grease the new plastic carriers (6) thoroughly before pushing them into the gear
bush (8).
– The driver plate (10)and the screw retention (11)are premounted on the new
hexagonal screw (M 20*360)(9).
– The preassembled screw is screwed into the finger roller with the 4 Allen screws
(M12 x40) (12). The screws must be locked with medium-strength screw-locking
compound, e.g. Loctite 243, and tightened to 85 Nm.
– Insert the finger roller with the preassembled screw into the pickup. Make sure that
the plastic carriers (6) are engaged with the teeth and the O-ring (7) is not dam-
aged.
– Pull the finger roller with the flat nut (4) (which must be secured with Loctite 243)
against the gearbox to the stop. Loosen the flat nut (4) again, screw it in until it
is flush and then loosen it approx. 1/3 revolution until it is parallel to the threaded
holes of the two grub screws (3).
– Unscrew the two grub screws until the position of the flat nut (4) is fixed. Now lock
the flat nut (4) with the lock nut (13) and secure it with Loctite 243.
– Screw the two grub screws (3) into the shaft to the stop. The hexagonal screw (9)
should have a perceptible longitudinal play of just one millimetre.
– Fill the hole above the lock nut completely with grease before replacing the cover
(1) and then fasten the cover with the six hexagonal screws (2).
ADVICE
The hexagonal screws (M 20*360) (ROPA item no. 415050) (9) must be replaced once
a year. The M20 nuts (ROPA item no. 414370 (4) and 414320 (13) ) must also be
replaced once a year.
The cleaner roller does not a lock on the gearbox. The cleaner roller is attached to the
gearbox. It can be pulled off after loosening the counter bearing in the centre of the
pickup (pedestal bearing with adjusting ring).
