Maintenance and Service
Diesel engine
310 / 476
7.1.3 Fuel supply
ADVICE
Hazard of damage to the environment from leaking fuel. When working on the filter,
first set up the catching pan and properly dispose of fuel caught.
WARNUNG
Burning hazard when handling diesel fuel.
Smoking, fire and open flames are prohibited when handling diesel fuel, because fuels
are easily combustible and fuel fumes cause an explosion hazard. Always make sure
of sufficient supply of fresh air when handling fuels.
Hazard of skin injuries and poisoning. Diesel fuel may cause damage to the skin in
case of direct contact. When handling diesel fuel, always wear suitable protective
gloves, avoid inhaling fuel fumes, because it may lead to poisoning effects.
The diesel fuel is pumped through the fuel filter with integrated water separator and
preheater by the electric pump to the intermediate tank (4) above the engine. The fuel
pump pumps the diesel fuel from the intermediate tank (4) through the two filters on
the diesel engine (fuel prefilter and fuel fine filter) to the high-pressure pump.
1

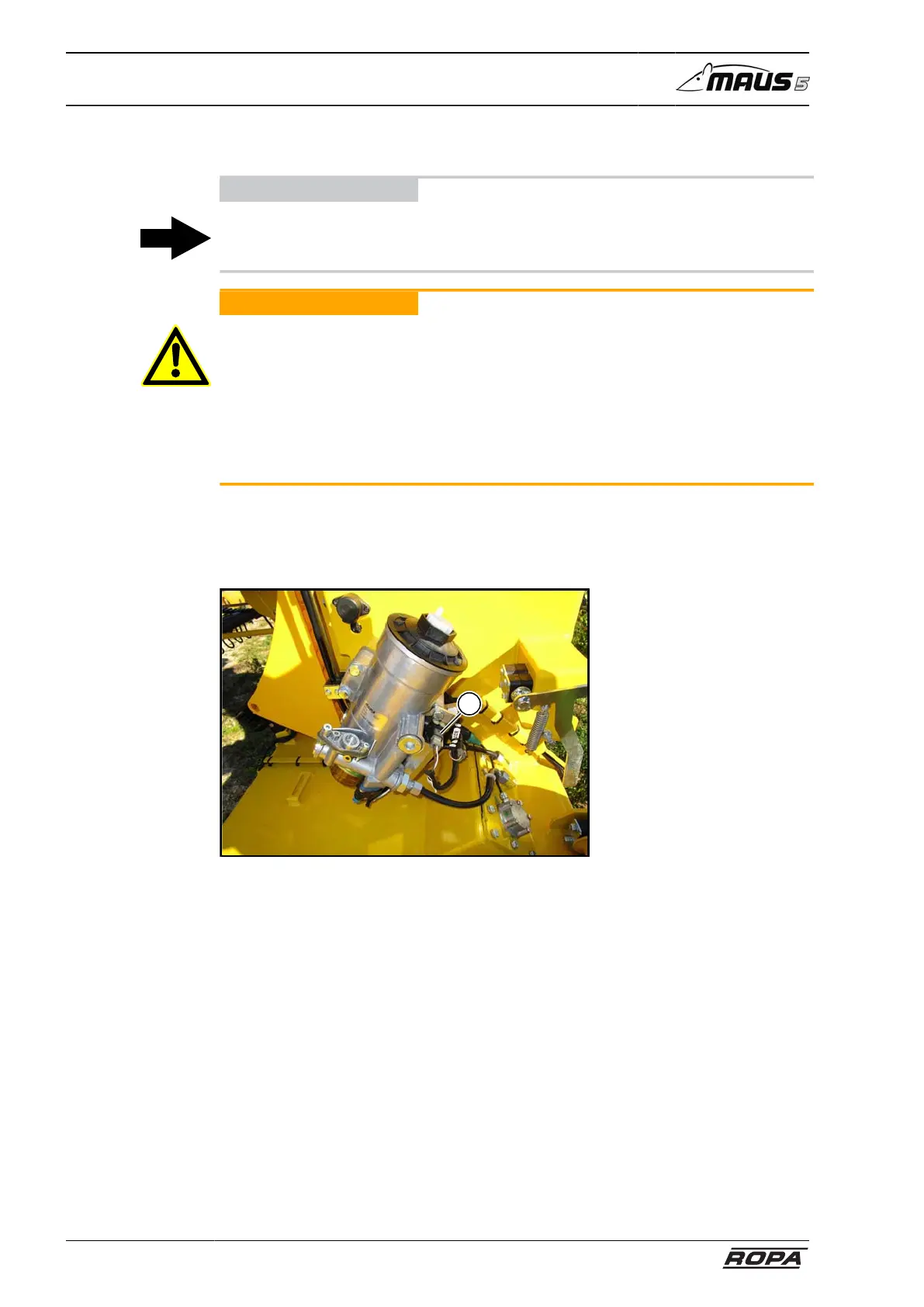

(1) Electric pump for diesel fuel
