7.8.4 Removing and installing rollers
47
48
49
50
51
52
53
54
55
4645
59
45
58
57
56

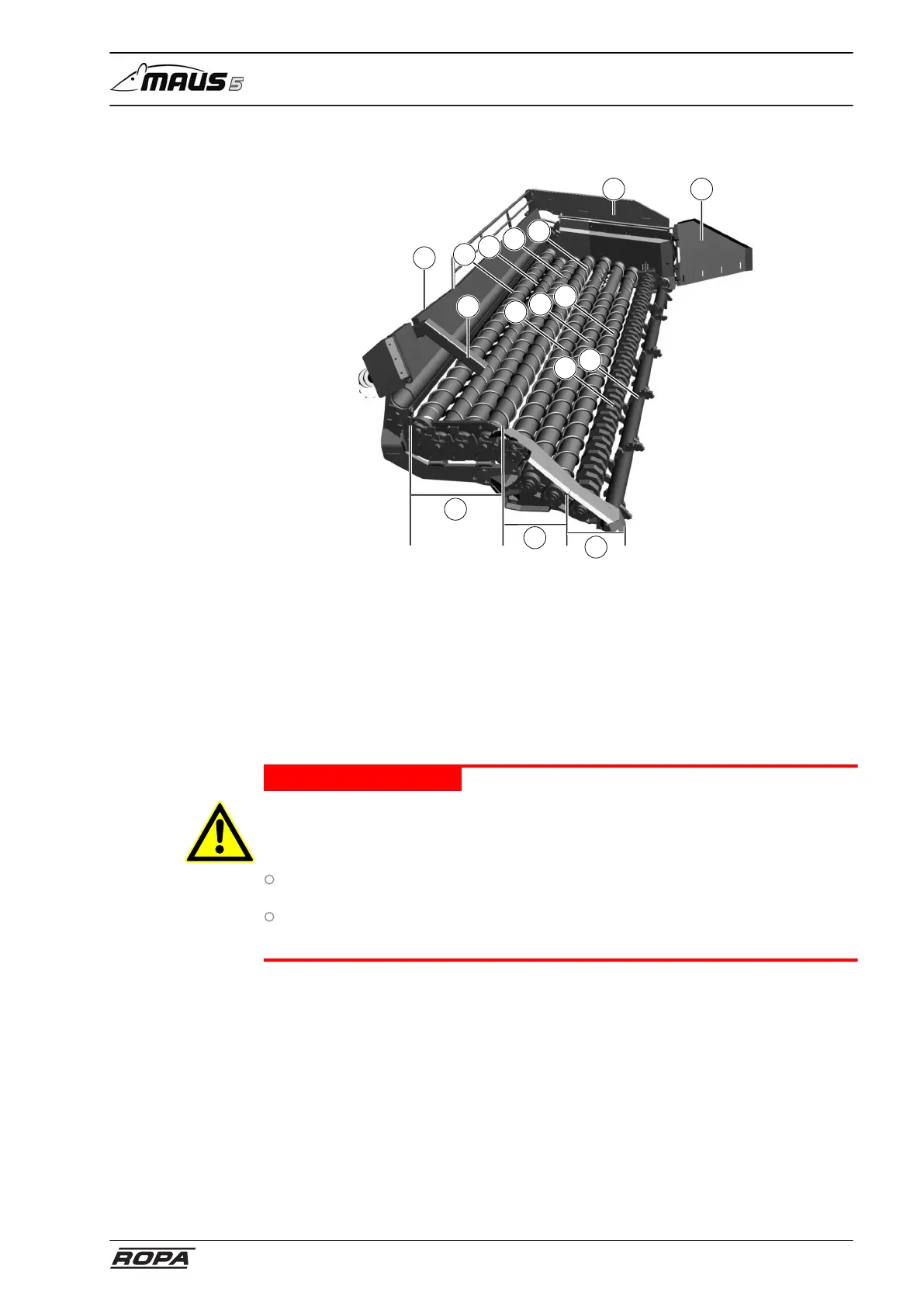

(45) Fold plates
(46) Clearing shield
(47) Pinch roller 4
(48) Pinch roller 3
(49) Pinch roller 2
(50) Pinch roller 1
(51) Conveyor roller 3
(52) Conveyor roller 2
(53) Conveyor roller 1
(54) Cleaning roller
(55) Pickup roller
(56) Pickup rollers
(57) Conveyor rollers
(58) 4 pinch rollers
(59) Frost breakers
DANGER
Crushing hazard!
When removing and installing rollers, there is a danger that the side sections of the
pickup may suddenly fold in and seriously injure persons working in this area.
Before starting work the pickup side section must be securely supported or
securely attached to a crane with sufficient load capacity and additionally secured.
Observe the applicable accident prevention regulations for work under raised
loads.
