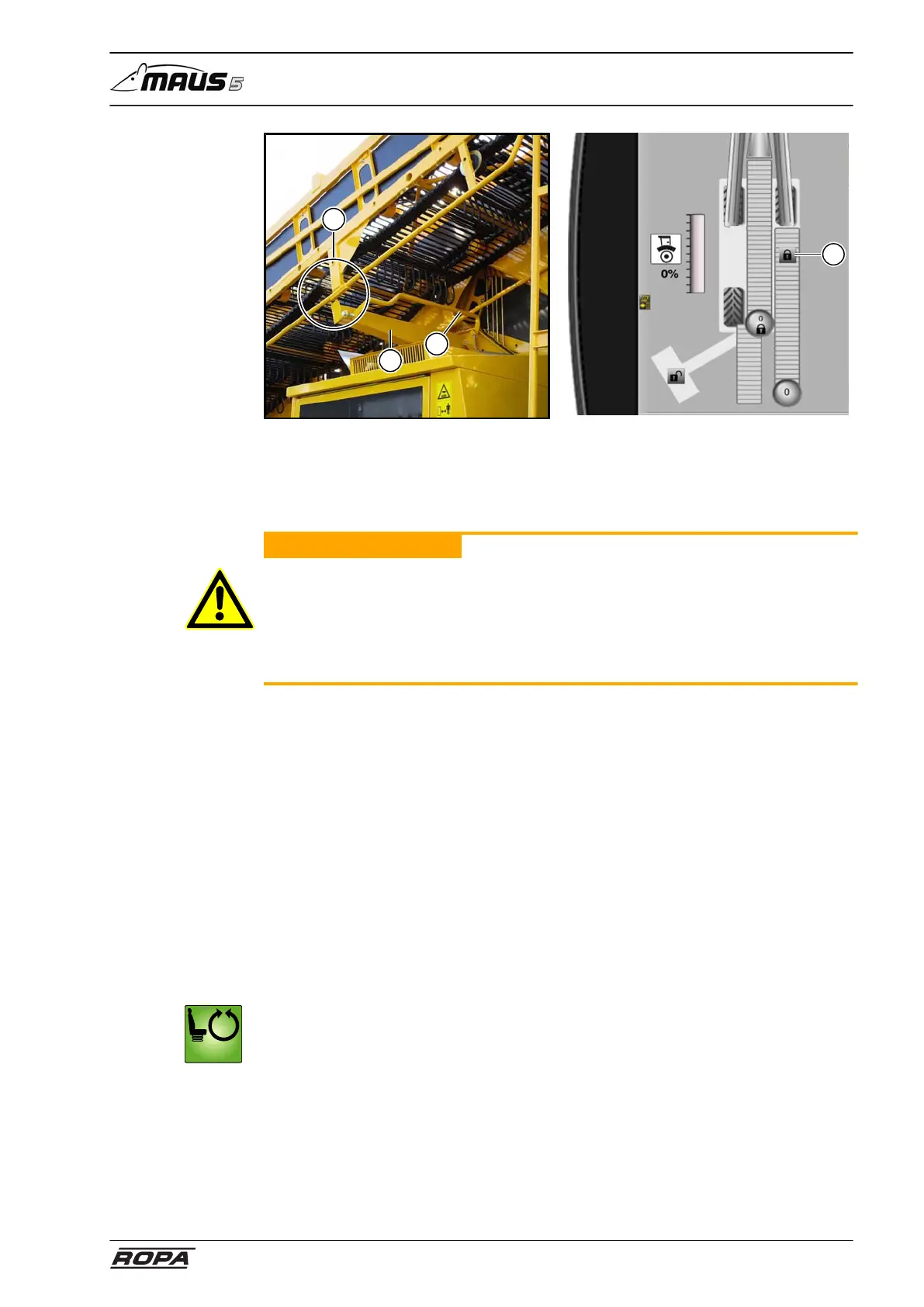

6.12.4 Folding in machine automatically front
The condition is that the machine rear is completely folded in and the truck conveyor
rests on the transport support.
WARNUNG
Hazard of extremely severe injuries.
– Make sure, that nobody stands in the hazard zones when the machine is started.
– Make sure that there are no persons on the boarding platform.
– The driver is responsible for ensuring that there is nobody in the area between
safety rail at the boarding steps and cabin door when lifting or lowering the cabin.
The following processes are executed automatically. During these processes,
several movements are performed simultaneously:
1 The speed of the diesel engine increases.
2 The pile pickup raises and rotates to the central position.
3 The residual beet pickup rotates to the central position. The telescoping mecha-
nism retracts about half-way.
4 The pickup is raised up to the end-stop.
5 The cabin lowers down completely to the end-stop.
6 The fold plates are swung down to the end-stop; simultaneously the clearing
shields and support feet move into the transport position.
7 The pickup side sections fold in completely to the end-stop.
8 The telescoping part of the pile pickup retracts completely and the pile pickup low-
ers to the central mark hatch.
9 As soon as these processes are completed, the diesel engine switches to idling
speed.
You start the automatic folding by:
– Move the rotatable seat forward to the central position until the rotatable seat status
display on the R-Touch displays green (display between -25%/0%/+25%).
– Then press the "Look forward" foot-switch (2) and keep it pressed.
