Operation
Folding the machine out/in
188 / 476

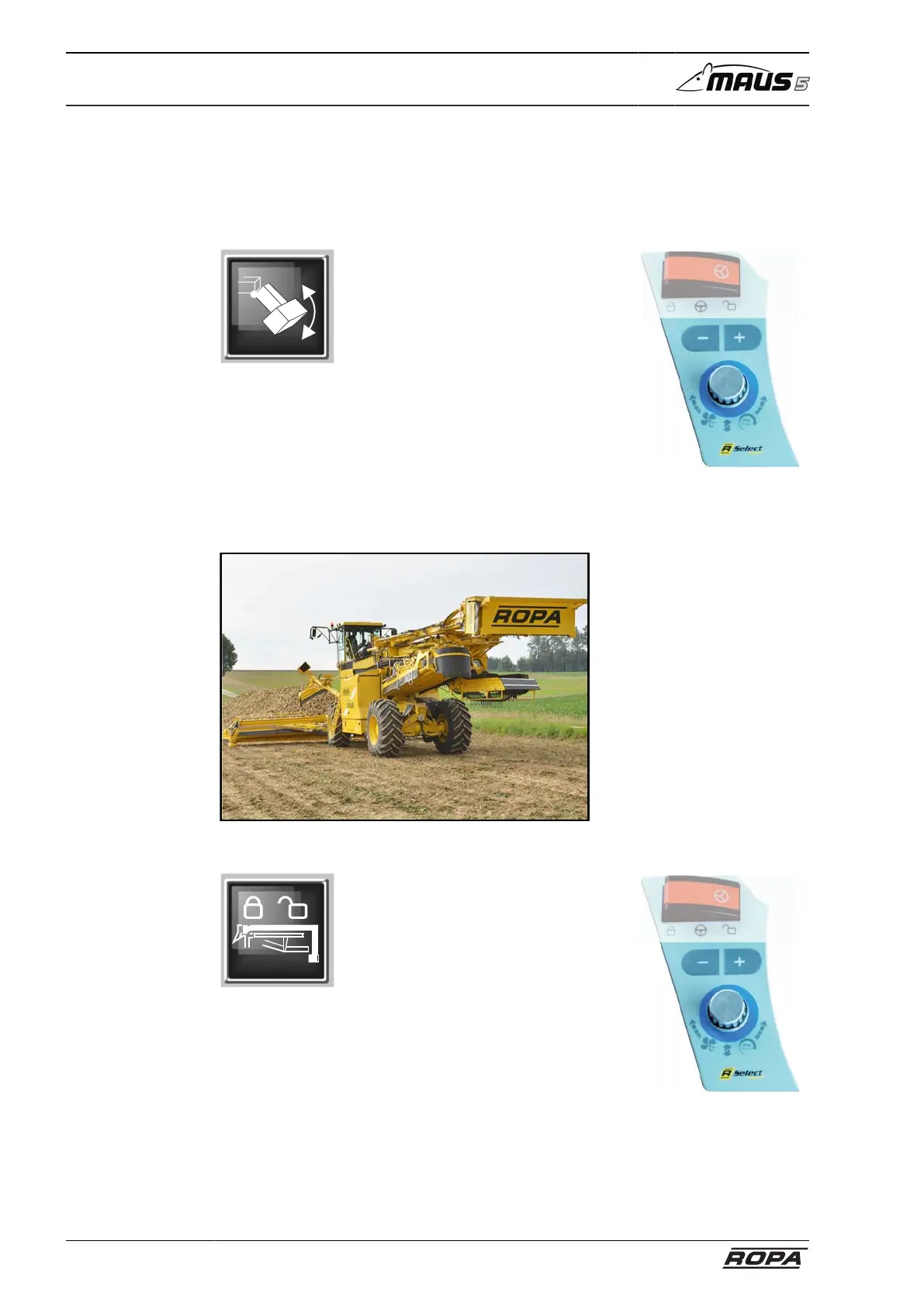

6.12.6 Folding out machine manually rear
Condition for this is that the machine front is already folded out and the driver's cabin
is raised to the end-stop. (see page 176)
– Raise counterweight (fuel tank).
Counterweight up/down
Choose this function with R-Select.
+ key = raise counterweight
- key = lower counterweight
In general, always first raise the counterweight to the end-stop. You thereby minimize
the risks of collision between truck conveyor and the counterweight arm if the monitor-
ing sensors malfunction.
– Unlock counterweight arm.
Counterweight arm lock
Choose this function with R-Select.
+ key = unlock counterweight arm
- key = lock counterweight arm
