Malfunction and Remedies
Electrics
394 / 476

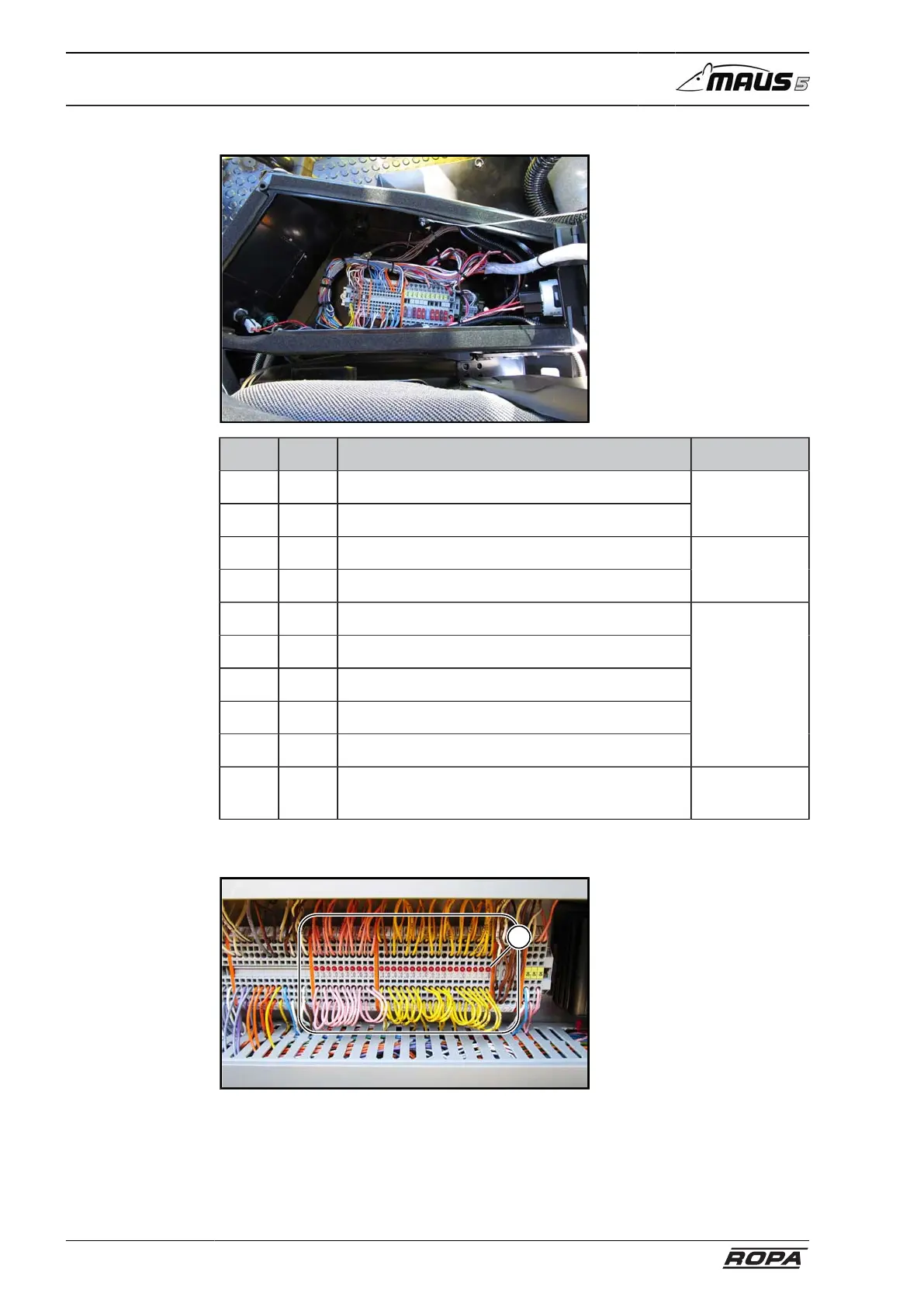

Fuses in the seat console
No. Ampere Function
F50 10 Pin 30 A07 colour terminal
F51 7.5 Outlet 24V
Pin 30
from F01
F53 7.5 Dimmed headlight
F54 7.5 Headlight
from light
F55 15 Air seat, seat heating
F56 10 Main switch steering
F57 10 Steering column switch
F58 free RESERVE PIN 15
F110 3 Pin 15 video system
Pin 15
after K01
F59 7.5
Pin 15 ESR, colour terminal, joystick, operating
section
Kl15 from
S50 directly
8.2.3 Electronic fuses
1
The fuses F70r - F97r are implemented as self-resetting electronic automatic cut-
outs. If the light emitting diode (LED) (1) of a fuse is lit, then the fuse is overloaded and
power supply to the connected component interrupted.
