Operation
Water spray system (option)
247 / 476
32
33
34
35

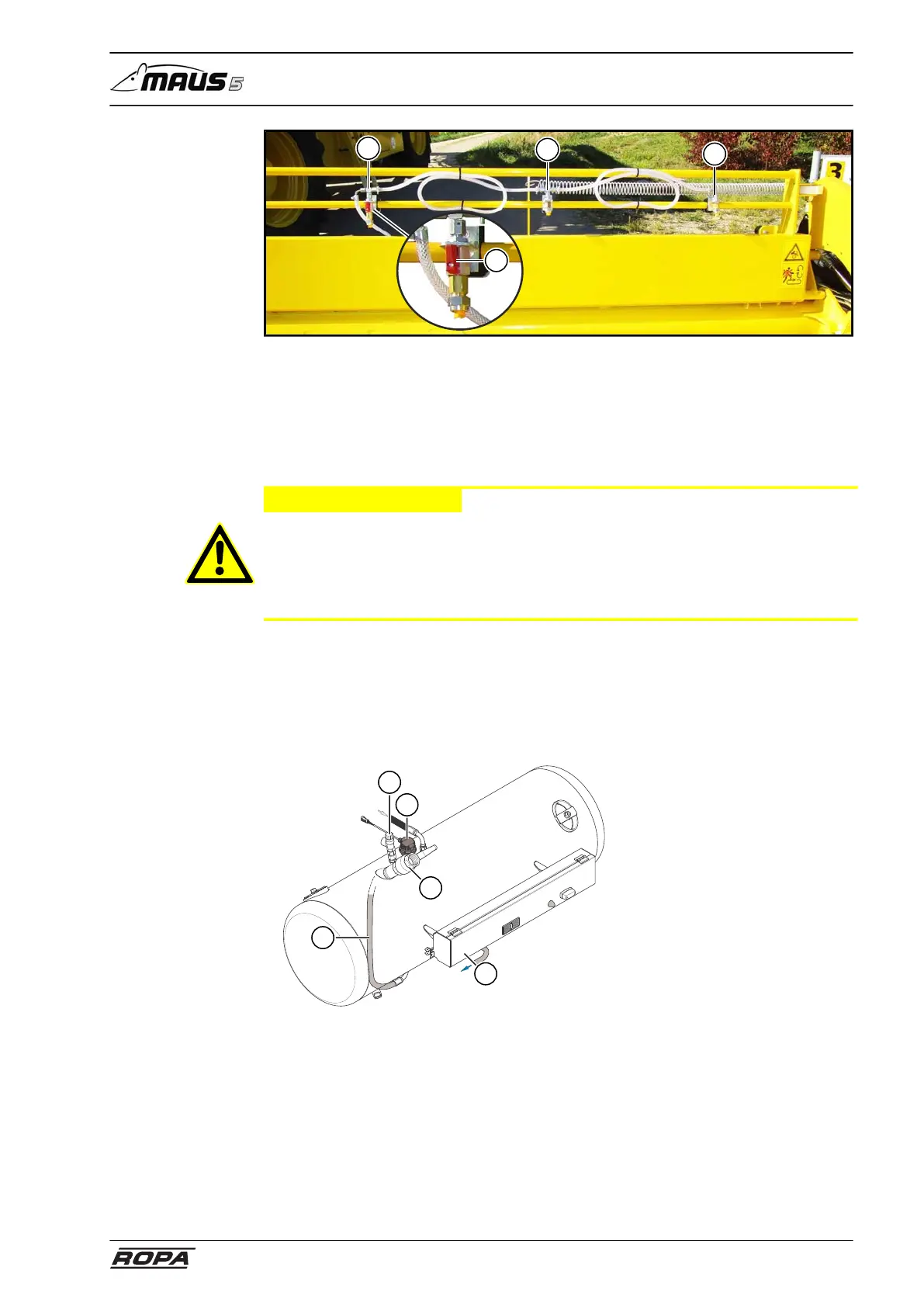

(32) Outside spray nozzles on pickup
(33) Centre spray nozzles on pickup
(34) Inner spray nozzles on pickup
(35) Stop valve for inner spray nozzles
6.14.1.1 Filling water tank
CAUTION
Risk of injury due to dirt particles and spraying water.
– Before starting to fill the water tank, slowly and carefully open the ball valve (7) to
release pressure in the water tank.
– Do not bend over the filler opening until the pressure has been released.
– Close the ball valve (1) (OFF position) before filling.
– Before starting to fill the water tank, slowly open the ball valve (7) at the filler neck
to release any pressure.
– Use only clean water without impurities for filling the tank.
– The transparent hose (10) shows the water level in the tank during filling.
– Close the ball valve (7) as soon as the tank is full.
10
8
9
7
1
(7) Filler neck with ball valve
(8) Sensor for level indicator
(9) Safety pressure valve
(10) Transparent hose for level indicator
