Operation
Water spray system (option)
246 / 476
7

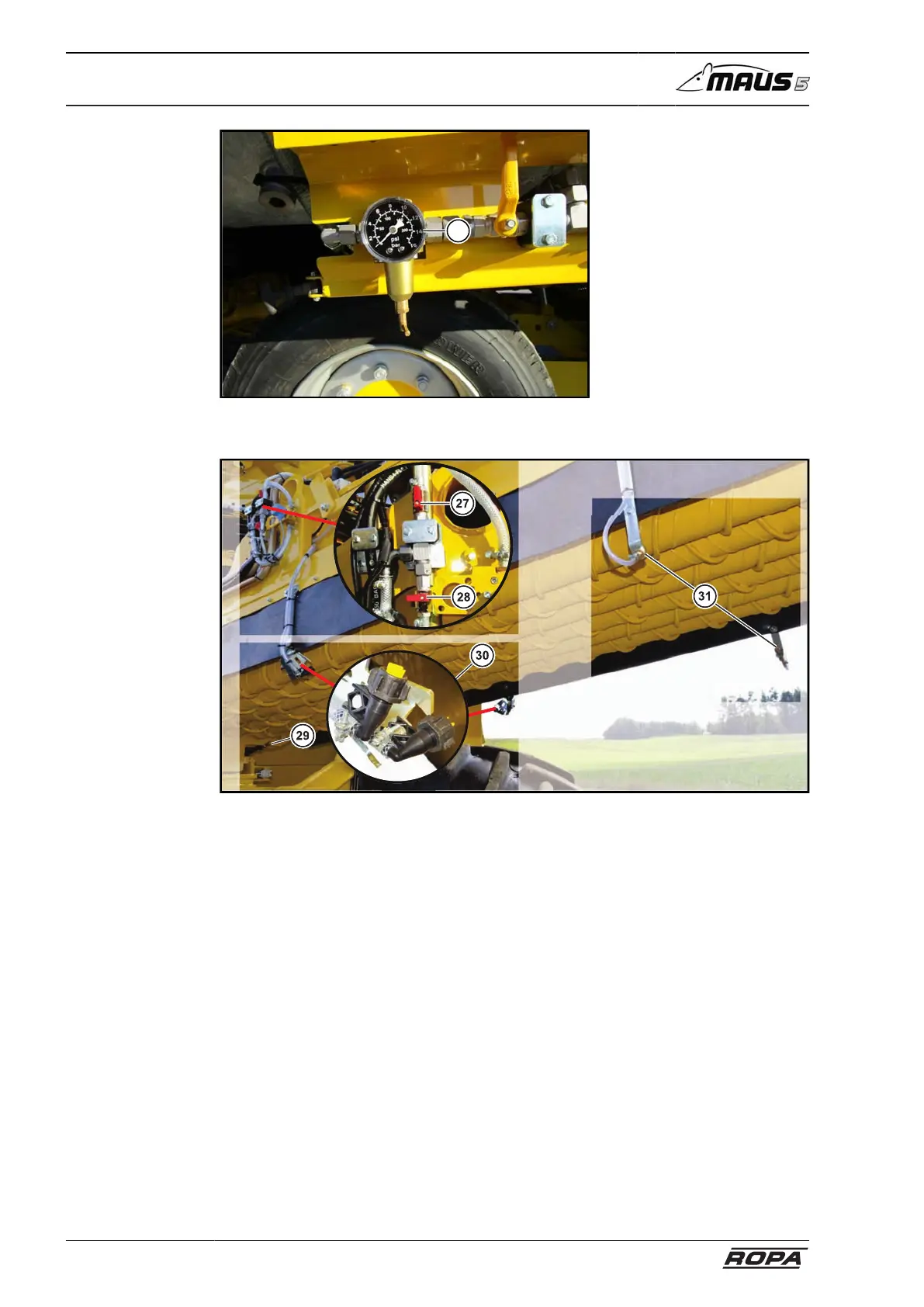

(7) Pressure reducer for the water spray system
29
31
30
27
28
(27) Stop valve for the rear spray nozzles
(28) Stop valve for the rear half of the centre spray nozzles
(29) Front spray nozzles at recleaner
(30) Centre spray nozzles at recleaner
(31) Rear spray nozzles at recleaner
