Operation
R-Concept
125 / 476

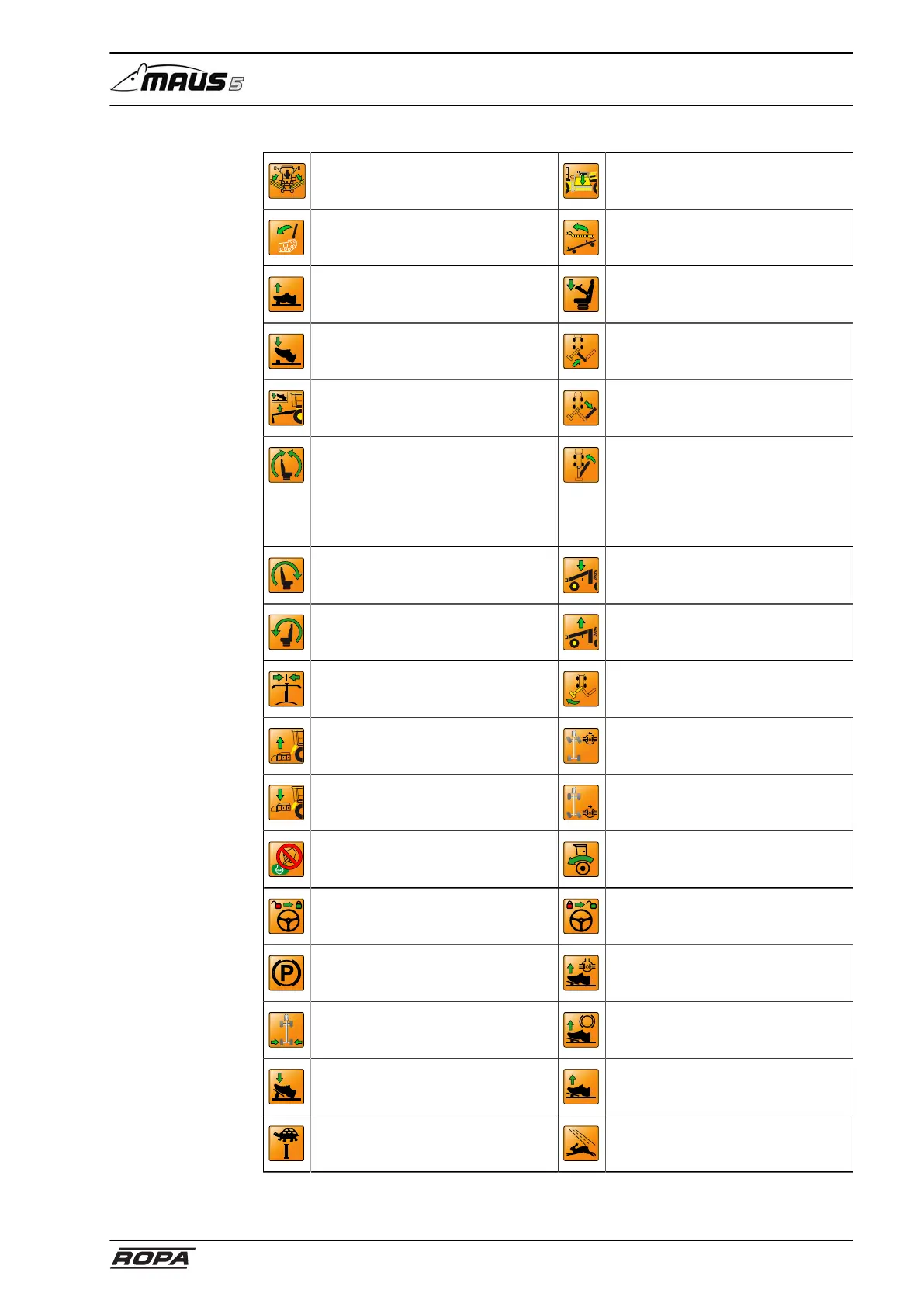

Orange hints on operation
Please swing out pickup Please close engine housing door
Please swing up the fold plates Please close rear platform wall
Please release "look forward"
foot-switch
Please swing down left joystick
console
Please press "look forward"
footswitch
Please swivel the recleaner into
operating position
Please press "look forward"
footswitch or lift pile pickup
Please swing out truck conveyor
further
When switching on the machine
drive, please turn the driver's seat
forward and check if there are no
people in the hazard zone of the
pickup
Put truck conveyor in transport
position
Please turn the driver's seat to the
right
Please lower truck conveyor
Please turn the driver's seat to the
left
Please raise truck conveyor
Please set pile pickup to central
position
Please swivel counterweight arm
further to the left
Please raise pickup further Please turn in front axle less
Please lower pickup further Please turn in rear axle less
Release the start key Please activate traction drive for-
ward
Please lock main steering switch Please unlock main steering
switch
Please release parking brake Please release gas pedal for
switching on the diff. lock
Please set rear axle straight Please release brake pedal
Please press gas pedal Please release gas pedal
While in operating mode "Turtle",
please shift to 1st gear
Please change operating mode
