Operation
Right joystick with multi-functional handle
136 / 476

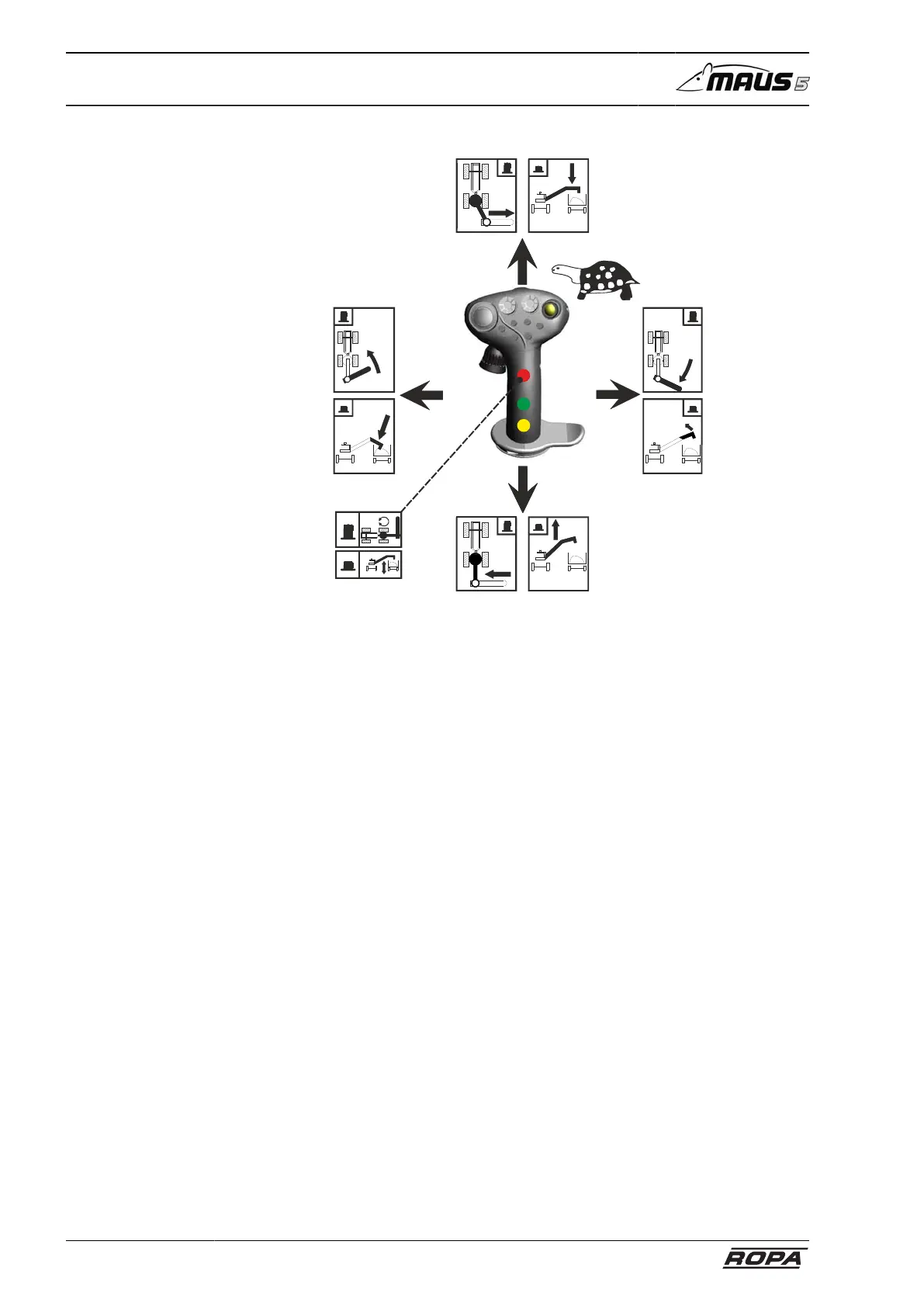

Joystick movements Only in the operating mode "Turtle"
12
11
4
5
6
9
8
10
7
3
2
1
13
Multi-key (11) NOT pressed
Only the two rotary drives turn! The rotating direction of the swivel arm always
depends on the selected loading direction!
Joystick FORWARD Turn swivel arm
Joystick BACKWARD Turn swivel arm
Joystick LEFT Turn truck conveyor to the left
Joystick RIGHT Turn truck conveyor to the right
Multi-key (11) PRESSED and held
This lifts and lowers the truck conveyor or articulated part!
Joystick FORWARD Lower truck conveyor
Joystick BACKWARD Lift truck conveyor
Joystick LEFT Fold in truck conveyor articulated part
Joystick RIGHT Fold out truck conveyor articulated part
