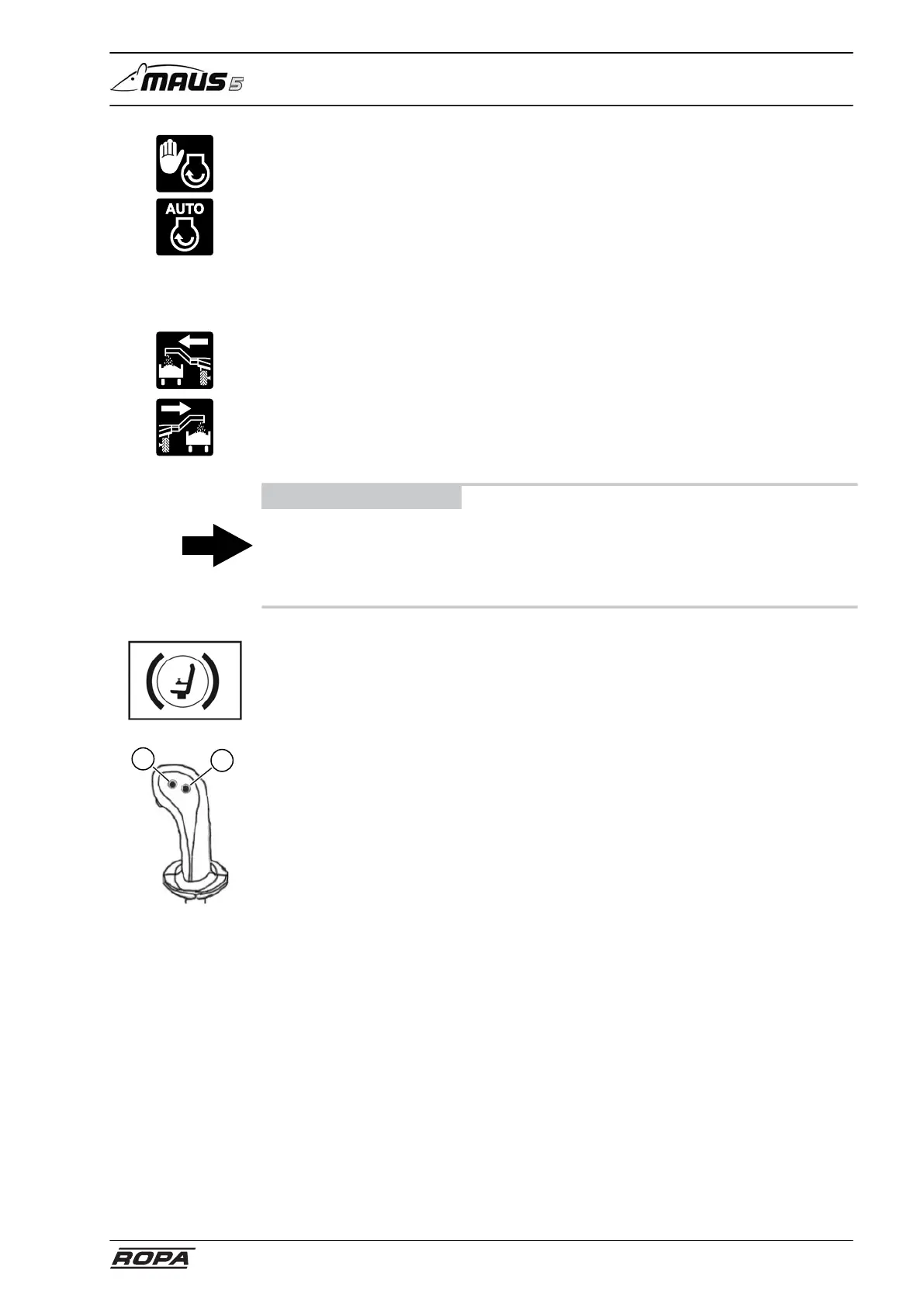

Operation
Left joystick
139 / 476
Only in the operating mode "Rabbit"
LEFT Manual diesel engine speed control
RIGHT Automotive diesel engine speed control
In order to switch over, slide the X-Y key (16) in the required direction and hold it
briefly in end position.
Only in the operating mode "Turtle"
Preselect loading direction left/right. In order to do it, slide the key in the required
direction and hold it briefly in end position.
LEFT Loading direction to the left (the truck is positioned on the left side
of the machine)
RIGHT Loading direction to the right (the truck is positioned on the right
side of the machine)
ADVICE
If the X-Y switch (16) is pushed to the left/right and held briefly, the direction of rotation
of the swivel arm is reversed in each case.
With automatic folding, the preselected loading direction determines the destination of
the truck conveyor (see page 178) when folding out.
Rotary seat brake (17) set/release
18
19
Joystick rear side
Rotate residual beet pickup (18) to the right
Rotate residual beet pickup (19) to the left
